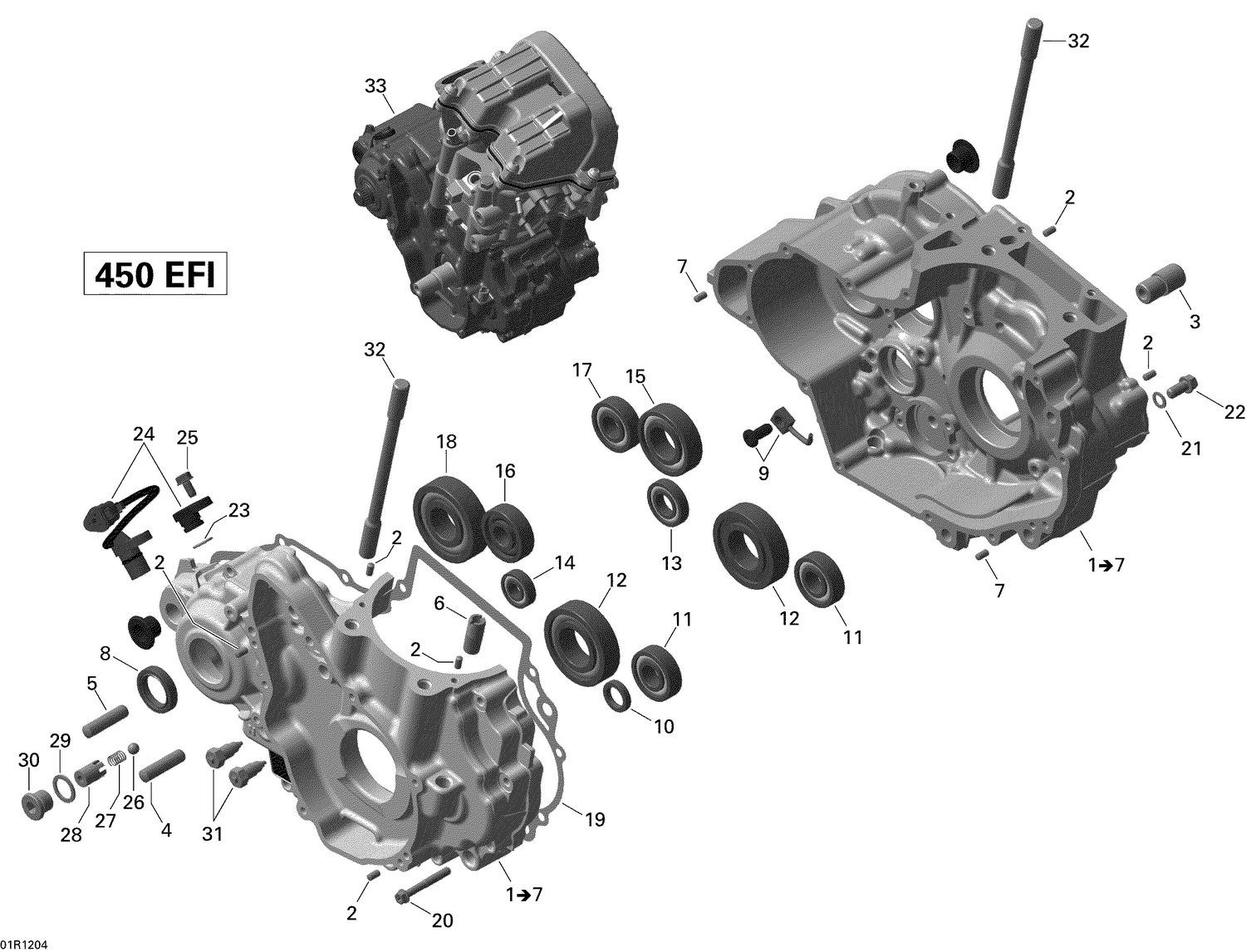

01- Crankcase
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420929650 | Drive Pin 5 X 10 |
| 3 | 420229135 | BEARING PIN - Call your local BRP dealership |
| 4 | 420229302 | Location Pin 10 M6x50 |
| 5 | 420929935 | INTERMEDIATE GEAR SHAFT - Call your local BRP dealership |
| 6 | 420256332 | Hose Nipple |
| 7 | 420832731 | DOWEL PIN - Call your local BRP dealership |
| 8 | 420830602 | OIL SEAL - Call your local BRP dealership |
| 9 | 420856986 | Oil Spray Nozzle Ass'y |
| 10 | 420250130 | Oil Seal |
| 11 | 420232855 | Balll Bearing |
| 12 | 420832526 | Balll Bearing |
| 13 | 420232590 | BALL BEARING - Call your local BRP dealership |
| 14 | 420232400 | Balll Bearing |
| 15 | 420232765 | BALL BEARING - Call your local BRP dealership |
| 16 | 420232291 | Ball Bearing 6302 |
| 17 | 293350051 | BALL BEARING - Call your local BRP dealership |
| 18 | 420932822 | Ball Bearing This part replaces 420932825. |
| 19 | 420431010 | Gasket |
| 20 | 420641198 | Torx Flange Screw M6 X 45 |
| 21 | 420950141 | Sealing Ring |
| 22 | 420440852 | Torx Flange Screw M8 X 16 |
| 23 | 420230451 | O-Ring |
| 24 | 420627805 | COVER - Call your local BRP dealership |
| 25 | 420240385 | TAPTITE SCREW M6 X 12 - Call your local BRP dealership |
| 26 | 420432680 | Ball 8.5 mm |
| 27 | 420238030 | COMPRESSION SPRING - Call your local BRP dealership |
| 28 | 420256483 | PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership |
| 29 | 420430622 | O-Ring |
| 30 | 420240234 | Plug Screw M16 X 1.5 |
| 31 | 420241856 | Position Switch |
| 32 | 420241580 | Stud |
