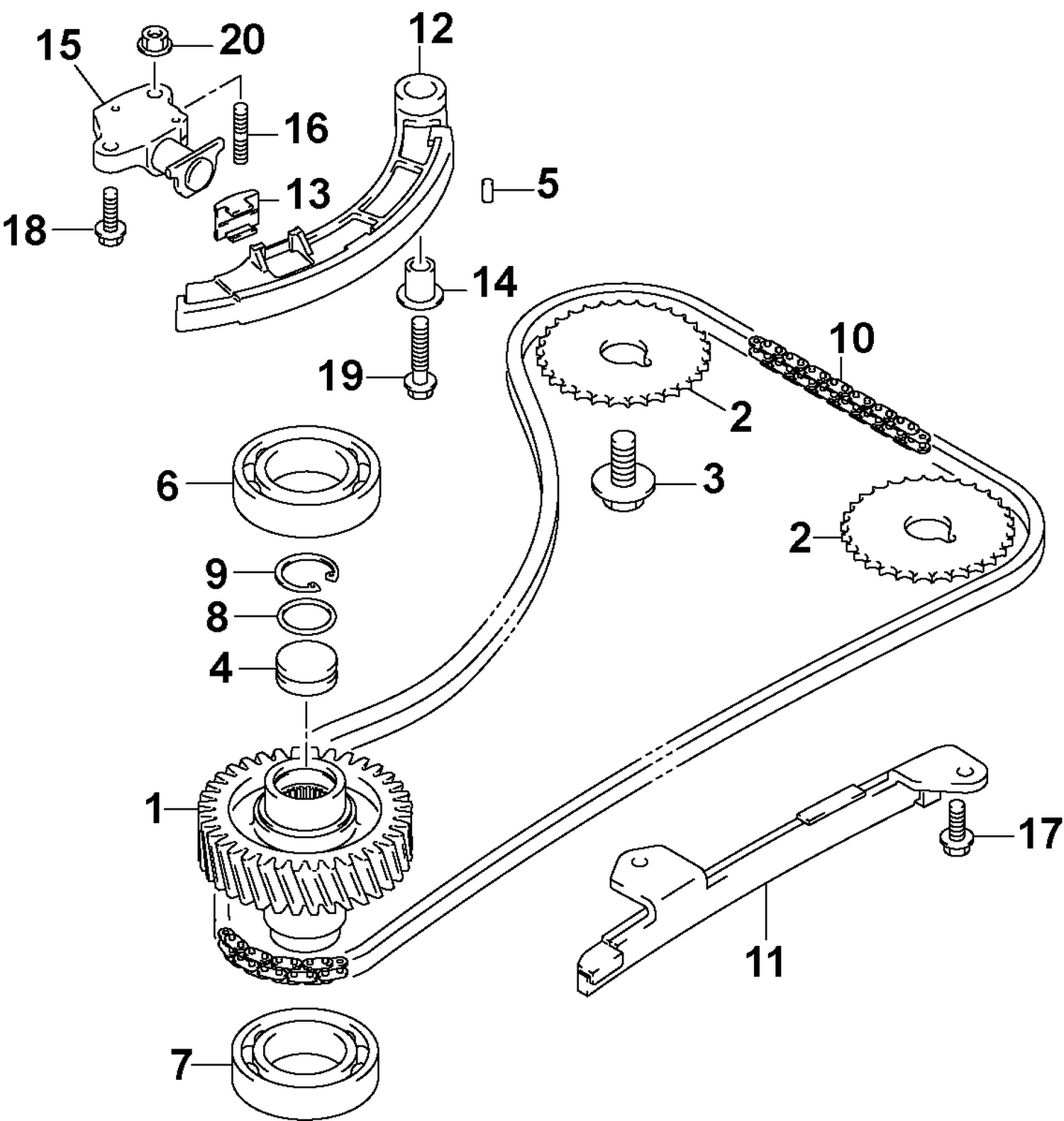

TIMING CHAIN
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033662 | GEAR, DRIVEN |
| 2 | 5033664 | SPROCKET, CAM SHAFT TIMING |
| 3 | 5033585 | BOLT (12X25mm) |
| 4 | 5033663 | PLUG, DRIVEN GEAR |
| 5 | 5031015 | PIN |
| 6 | 5033608 | BEARING |
| 7 | 5033609 | BEARING |
| 8 | 5033516 | O RING |
| 9 | 5034140 | CIRCLIP |
| 10 | 5033665 | CHAIN, TIMING |
| 11 | 5033666 | GUIDE, TIMING CHAIN |
| 12 | 5033667 | TENSIONER, TIMING CHAIN |
| 14 | 5033668 | SPACER, TIMING CHAIN TENSIONER |
| 15 | 5031339 | ADJUSTER Assy, TENSIONER |
| 16 | 5034121 | BOLT, STUD |
| 17 | 5034125 | BOLT |
| 18 | 5031666 | BOLT |
| 19 | 5034126 | BOLT |
