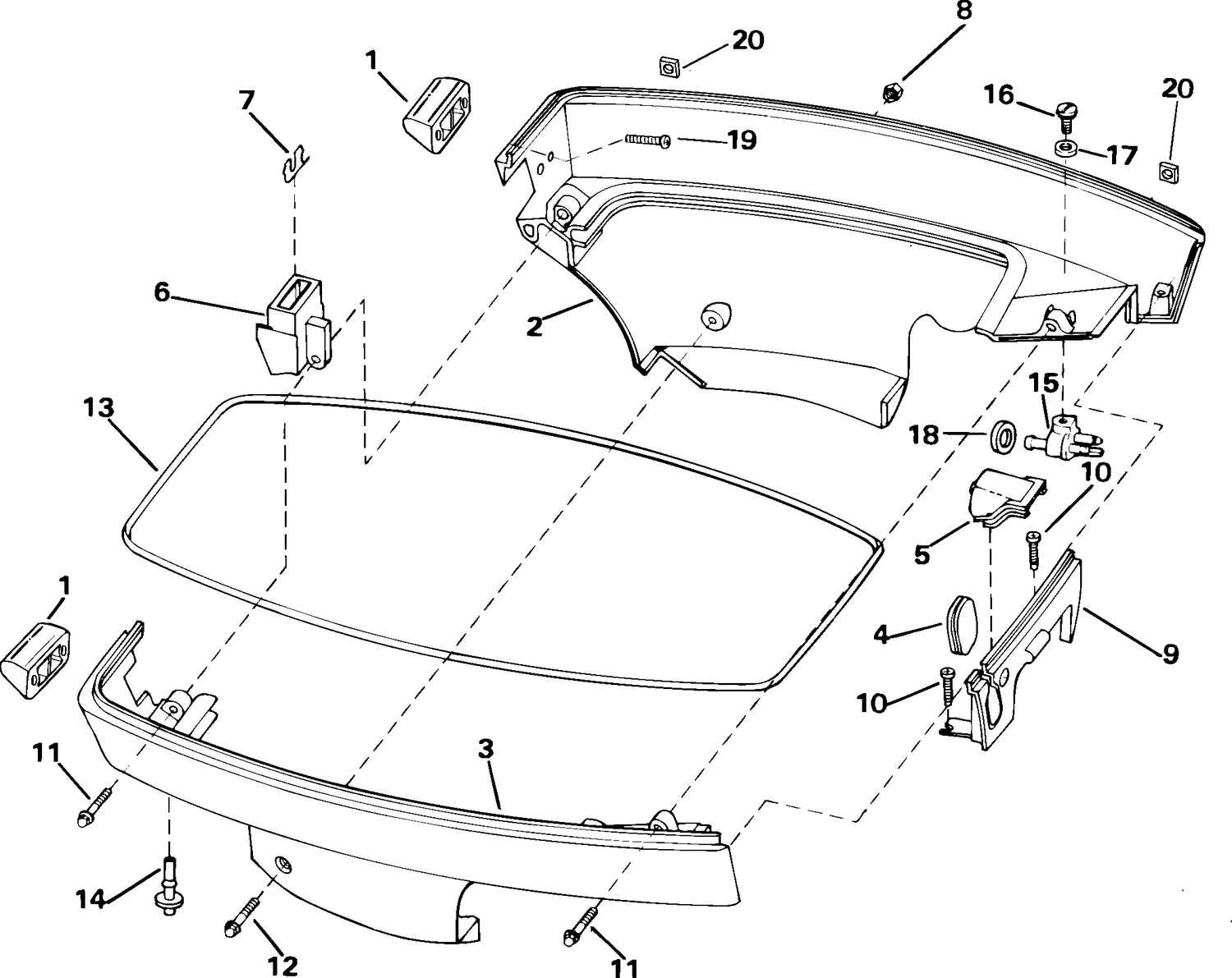

LOWER ENGINE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0341653 | BUMPER, Cover |
| 2 | 5005220 | COVER, Port |
| 3 | 5005221 | COVER, Starboard |
| 4 | 0335322 | GROMMET, Control panel |
| 5 | 0336594 | GROMMET, Shift link |
| 6 | 0435818 | LATCH, Upper to lower cover |
| 9 | 0336192 | CONTROL PANEL |
| 11 | 0333675 | SCREW, Bracket to c'case cover |
| 12 | 0344916 | SCREW, Lower |
| 13 | 0336219 | SEAL, Engine cover |
| 14 | 0336597 | INDICATOR, Overboard pump |
| 19 | 0512731 | SCREW, Bumper |
