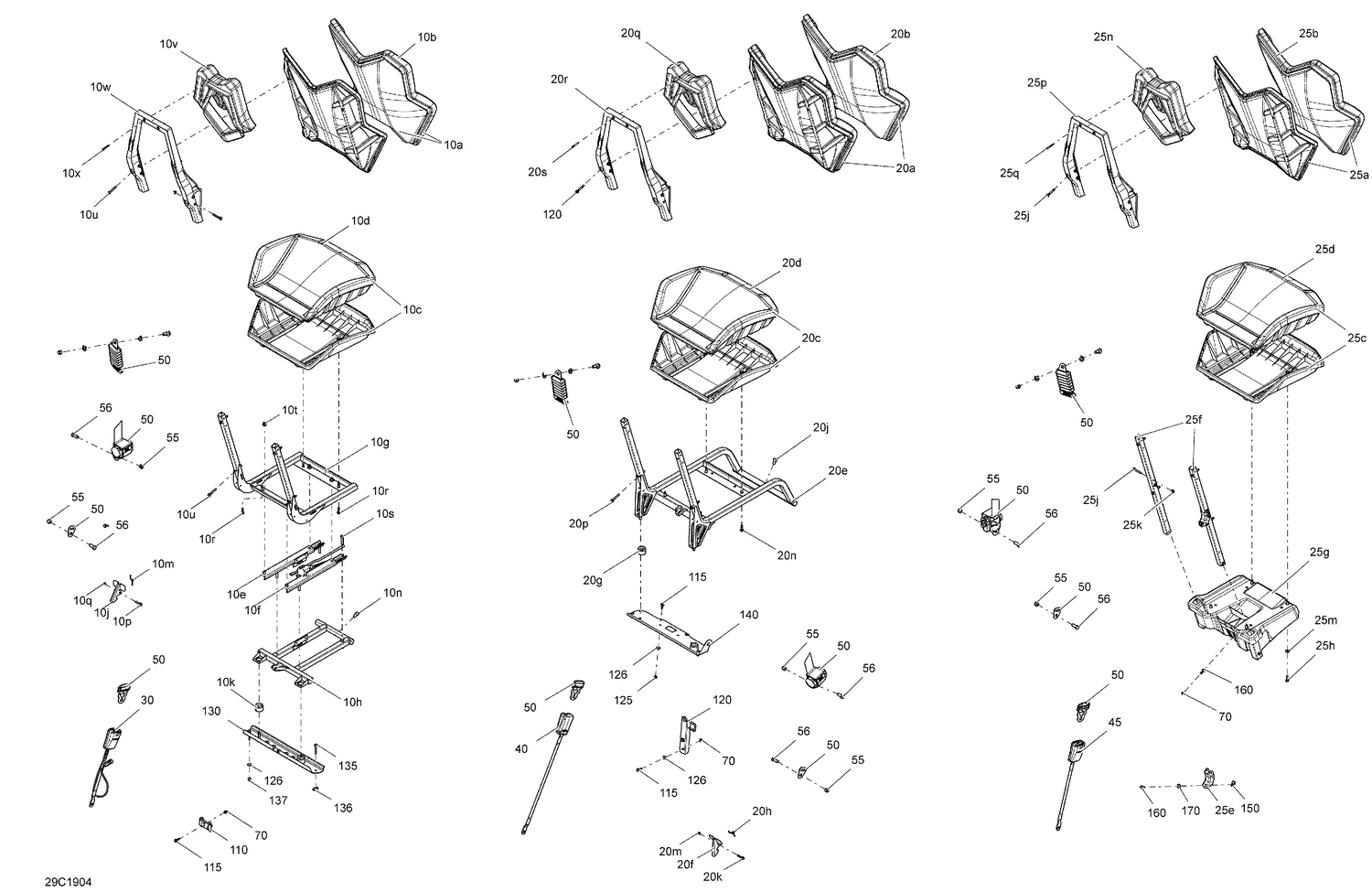

09- Seat
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 708002061 | Driver Buckle Side |
| 40 | 708002064 | Passenger Buckle Side |
| 45 | 708002063 | Rear Passenger Buckle Side |
| 50 | 708002644 | Safety Belt |
| 55 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 56 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 70 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 110 | 708001212 | Anchor |
| 115 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 120 | 708001213 | Anchor |
| 125 | 233061414 | Hex. Flange Nut M6 |
| 126 | 234062670 | Stainless Steel Flat Washer |
| 130 | 708001214 | Seat Support |
| 135 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 |
| 136 | 250100171 | Panel Nut M6 X 1.0 |
| 137 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 140 | 708001804 | Support |
| 150 | 250100171 | Panel Nut M6 X 1.0 |
| 160 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 170 | 234281474 | Conical Spring Washer M8 |
