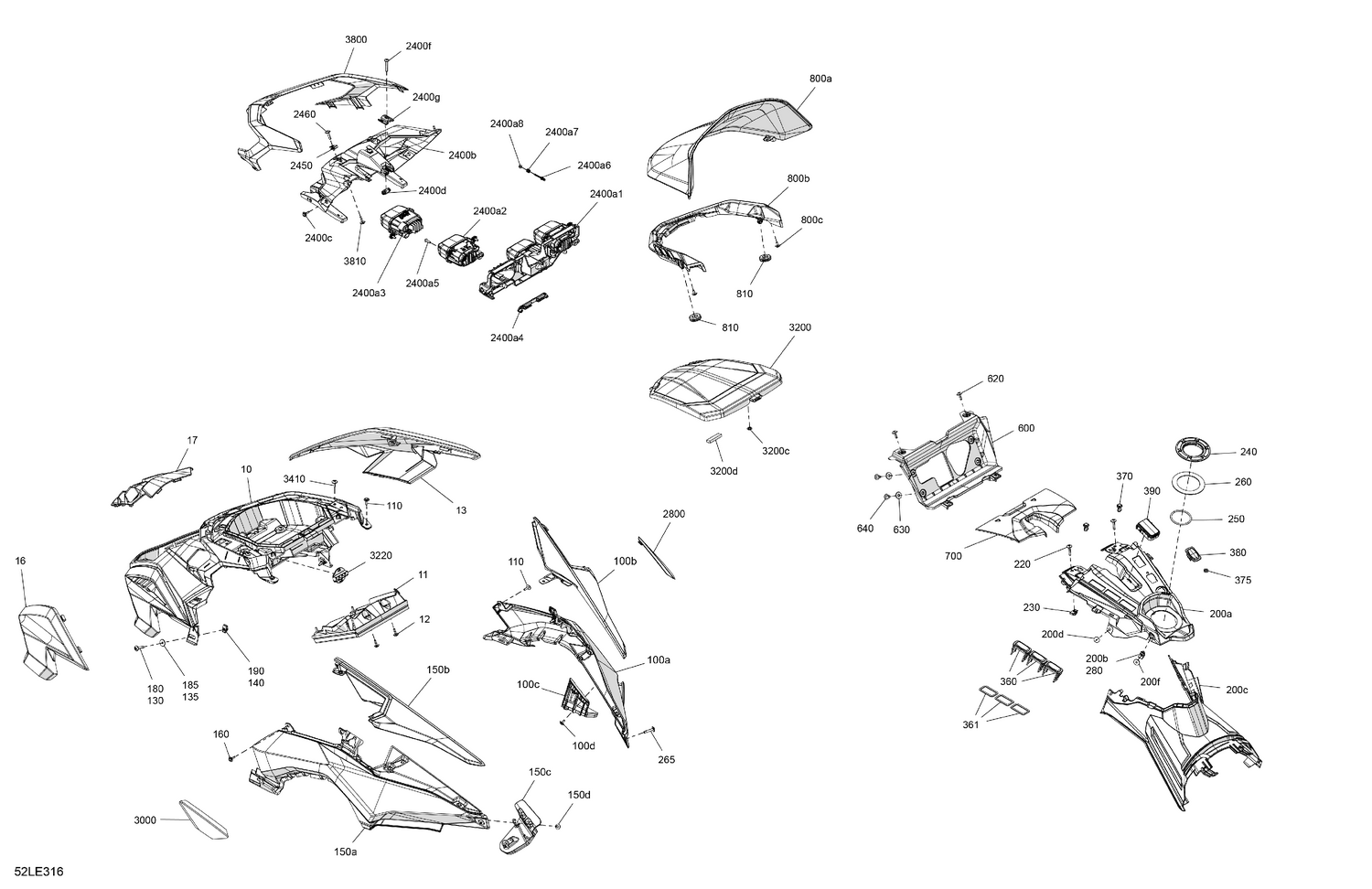

| Ref | Part Number | Description |
|---|
| 10 |
517307812 |
Deep Black, Central Hood |
| 11 |
517308994 |
Intake Adapter IN |
| 12 |
250000725 |
Screw M4 X 16 |
| 13 |
517307864 |
Viper Red, RH Front Hood |
| 16 |
517307865 |
Viper Red, LH Front Hood |
| 17 |
517307814 |
Deep Black, Scoop Grille |
| 100a |
517307818 |
Deep Black, RH Rear Hood |
| 100b |
517308647 |
Deep Black, RH Rear Hood Trim |
| 100c |
517307816 |
RH Mounting Clamp |
| 100d |
250000805 |
Plastite Screw M4 X 10 |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
250000587 |
Torx Screw M5 X 26 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 150a |
517307829 |
Deep Black, LH Rear Hood |
| 150b |
517308648 |
Deep Black, LH Rear Hood Trim |
| 150c |
517307827 |
LH Mounting Clamp |
| 150d |
250000805 |
Plastite Screw M4 X 10 |
| 160 |
250000725 |
Screw M4 X 16 |
| 180 |
250000587 |
Torx Screw M5 X 26 |
| 185 |
250200166 |
Washer |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 200a |
517309503 |
Viper Red, Upper Rear Console |
| 200b |
250000958 |
Panel Nut M5 X 0.8 |
| 200c |
517309504 |
Viper Red, Rear Lower Console |
| 200d |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 200f |
517124300 |
Washer |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 |
| 240 |
517309507 |
Round Slotted Nut |
| 250 |
706002839 |
O-Ring |
| 260 |
517309451 |
Joint This part replaces 517307197. |
| 265 |
250000587 |
Torx Screw M5 X 26 |
| 280 |
250000958 |
Panel Nut M5 X 0.8 |
| 360 |
517306808 |
Switch Hole Cap |
| 361 |
513034207 |
Self Adhesive Weather Strip |
| 370 |
293150230 |
Tuflok Plastic Rivet |
| 375 |
732610072 |
Push Nut |
| 380 |
517309512 |
Molded Plug |
| 390 |
517308759 |
Connecting Plate |
| 600 |
517307751 |
Gauge Support |
| 620 |
250000889 |
Screw M4 X 16 |
| 630 |
234062670 |
Flat Washer, Stainless |
| 640 |
250000767 |
Torx Truss Screw M6 X 12 |
| 700 |
517308111 |
Access Cover |
| 800a |
517307975 |
Low Windshield |
| 800b |
517307973 |
Support |
| 800c |
250000805 |
Plastite Screw M4 X 10 |
| 810 |
517303756 |
Grommet |
| 2400a1 |
517307862 |
Headlight Support |
| 2400a2 |
710008089 |
Low Beam Light |
| 2400a3 |
710006911 |
High Beam Light |
| 2400a4 |
517309294 |
Pivot Support |
| 2400a5 |
250000759 |
Torx Truss Pt K40 X 16 |
| 2400a6 |
517309133 |
Threaded Rod |
| 2400a7 |
517309058 |
Compression Spring |
| 2400a8 |
517309134 |
Specialized Nut |
| 2400b |
517308162 |
Deep Black, Headlight Trim |
| 2400c |
250000725 |
Screw M4 X 16 |
| 2400d |
517308229 |
Molded Housing Nut |
| 2400f |
250001286 |
Torx Screw M5 X 40 |
| 2400g |
517309293 |
Clip |
| 2450 |
250000958 |
Panel Nut M5 X 0.8 |
| 2460 |
250000586 |
Torx Truss M5 X 20 |
| 2800 |
517309208 |
RH Rear Cap |
| 3000 |
517309209 |
LH Rear Cap |
| 3200c |
732610072 |
Push Nut |
| 3200d |
517308246 |
Joint Seal |
| 3220 |
517308260 |
Box Cap |
| 3410 |
250000889 |
Screw M4 X 16 |
| 3800 |
517308755 |
Platinum Silver, Headlight Trim |
