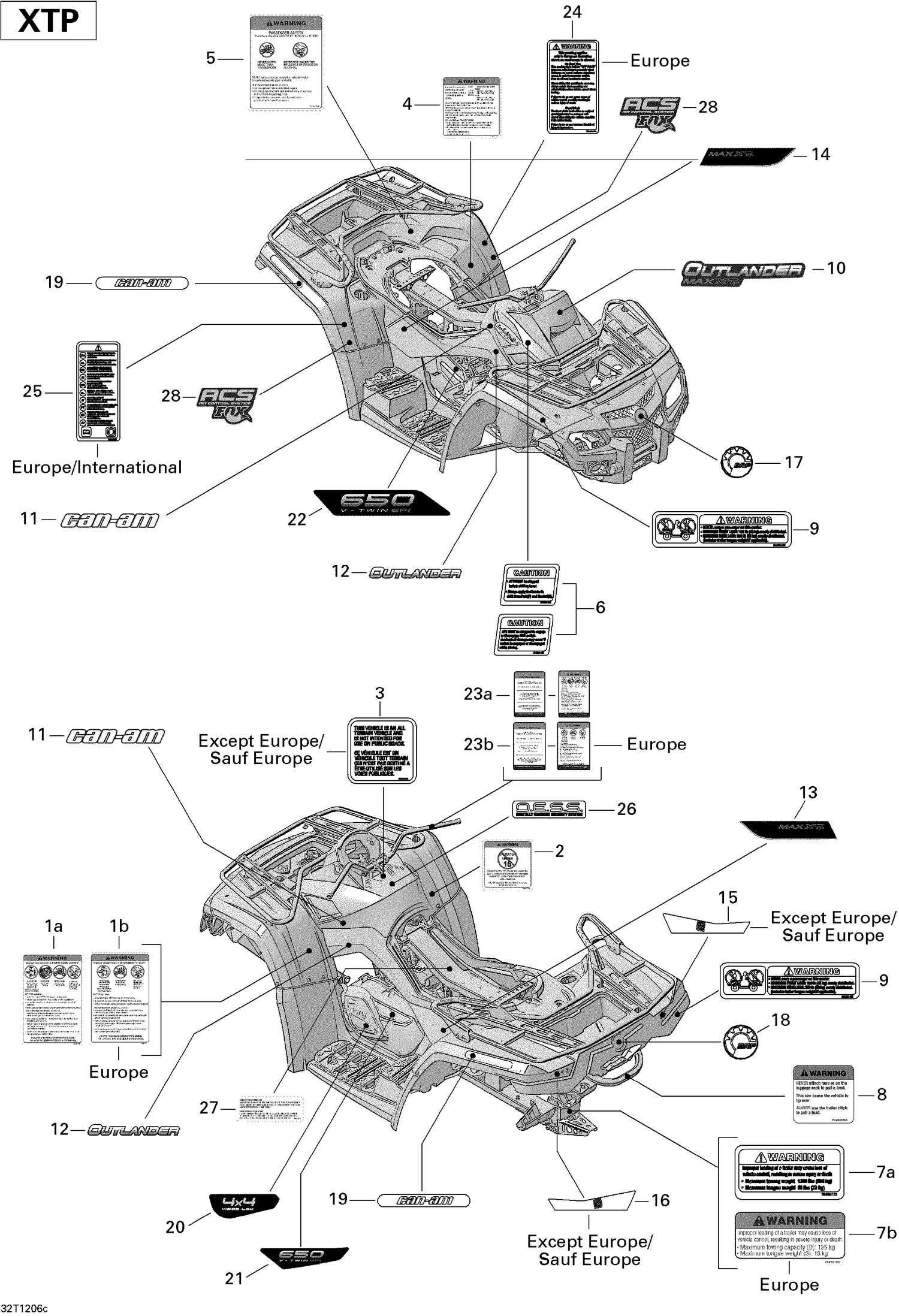

09- Decals XTP

09- Decals XTP

Parts (19)

RefPart NumberDescription
2 704901753 Warning Decal, Under 16 Years Old
4 704902416 WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership
5 704902394 WARNING DECAL, PASSENGER - Call your local BRP dealership
6 704900434 Caution Decal, Lever And 4wd Switch
8 704902005 WARNING DECAL, LUGGAGE RACK - Call your local BRP dealership
9 704901089 Warning Decal, Load
10 704902477 CONSOLE DECAL, OUTLANDER MAX XTP - Call your local BRP dealership
11 704902237 CENTER PANEL DECAL, CAN-AM - Call your local BRP dealership
12 704902220 SIDE DECAL, OUTLANDER - Call your local BRP dealership
13 704902481 LH SIDE DECAL, MAX XTP - Call your local BRP dealership
14 704902482 RH SIDE DECAL, MAX XTP - Call your local BRP dealership
17 516008739 BRP Logo 68mm This part replaces 219902469.
18 219902672 BRP Logo 68 mm
19 704901271 Decal, Can-Am
20 704902083 Decal, 4x4 Visco-Lok
21 704902234 LH ENGINE COVER DECAL - Call your local BRP dealership
22 704902235 RH ENGINE COVER DECAL - Call your local BRP dealership
26 704901117 DECAL, D.E.S.S. - Call your local BRP dealership
27 707800373 Air Filter Maintenance Decal
