Home / BRP / STERN DRIVE / 1983 / 2.50 / 252FTHRCTR 1983 / UPPER GEARCASE GROUP

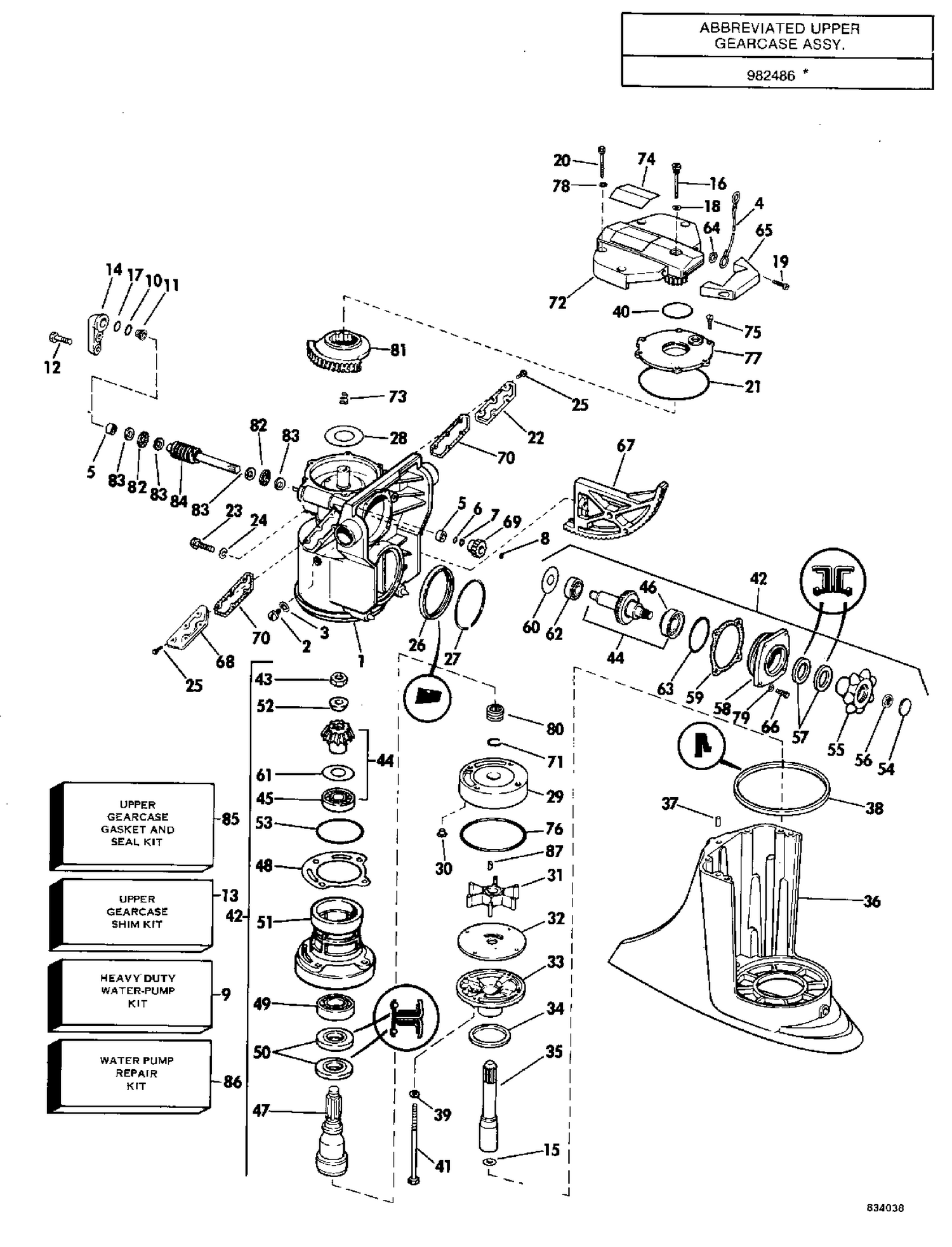

UPPER GEARCASE GROUP

UPPER GEARCASE GROUP

Parts (100)

RefPart NumberDescription
1 0982226 GEAR AND BUSHING ASSEMBLY
4 0981870 BUSHING, Retainer
5 0308883 BUSHING
6 0909048 REAL RING, Shaft
7 0314390 RETAINER
8 0911317 RETAINING RING, Shaft
9 0983219 HEAVY DUTY WATER PUMP & IMPELLER HOUSING KIT
10 0909139 QUAD RING, Retainer
11 0908871 RETAINER, Steering worm
12 0305282 BOLT, Bowl & suction piece
13 0981796 UPPER GEARCASE SHIM KIT
14 0908870 BRACKET Steering worm ret
15 0314491 O RING
16 0980657 INDICATOR PLUG, Cover
17 0909140 O RING, Retainer backup
18 0315189 GASKET, Oil indicator
19 3623099 SCREW,Bumper
20 0908511 SCREW
21 0313175 O RING, Cover
22 0308699 COVER,Port
23 0308843 SCREW, Gearcase to housing
24 0120177 L'WASHER, Alternator to brkt
25 3852473 SCREW, Cap to gimbal This part replaces 0909636.
26 0308768 EXHAUST SEAL
27 0308590 SPRING, Seal
28 0313220 SHIM
29 0909649 IMPELLER HOUSING
29 0983298 IMPELLER HOUSING
30 0911220 PLUG, Impeller housing
31 0379475 IMPELLER ASSEMBLY
32 0313176 IMPELLER HOUSING PLATE
33 0910239 SWIVEL HOUSING
34 0310648 THRUST WASHER
35 0909753 DRIVESHAFT
36 0982828 EXHAUST HOUSING
37 0908510 PIN
38 0308596 SEAL, Exhaust hosing
39 0322624 WASHER, Lag screw This part replaces 0313169.
40 0910582 O-RING, Steering worm wheel
41 0313540 SCREW, Housing
42 0982476 BEARING HOUSING ASSY
43 0907866 LOCKNUT
44 0982244 BALL GEAR SHAFT & PINION ASSY
47 0909121 DRIVESHAFT Upper
48 0313185 SHIM, Bearing housing, .005"
48 0313186 SHIM, Bearing housing, .006"
48 0313187 SHIM, Bearing housing, .007"
48 0313188 SHIM, Bearing housing, .008"
48 0313189 GASKET,Screw plug
48 0313190 SHIM, Bearing housin, 0010
49 0382165 ROLLER BEARING, Lover
50 0981268 SEAL, Bearing retainer
51 0910240 BEARING HOUSING
52 0909123 CENTERING CONE
54 0908062 PLUG, Bail gear
55 0908069 BALL DEAR, Shaft
56 0908064 NUT
57 0981196 OIL RETAINER
58 0313184 BEARING RETAINER
59 0313202 SHIM, Retainer hsg. 0.002"
59 0313203 SHIM, Retainer hsg. 0.003"
59 0313204 SHIM, Retainer hsg. 0.004"
59 0313205 SHIM, Retainer hsg. 0.005"
59 0313206 SHIM, Retainer hsg. 0.010"
60 0313162 SHIM BEARING TO HOUSING, .002"
60 0313163 SHIM BEARING TO HOUSING, .003"
60 0313164 SHIM BEARING TO HOUSING, .004"
60 0313165 SHIM BEARING TO HOUSING, .005"
60 0313166 SHIM BEARING TO HOUSING, .006"
60 0313167 AHIM,Bearing to hsg.,.007"
60 0313168 SHIM BEARING TO HOUSING, .008"
61 0313192 SHI,Thrust washer,.002"
61 0313193 SHIM BRG.TO PINION,.003"
61 0313194 PINION,.005"
61 0313195 SHIM, Bearing to pinion , .005"
61 0313196 SHIM, Bearing to pinion .006"
61 0313197 SHIM, Bearing to pinion 0.007 inch
61 0313198 SHIM, Bearing to pinion 0.008 inch
61 0313199 SHIM, Bearing to pinion 0.009 inch
61 0313200 SHIM, Bearing to pinion 0.010 inch
62 0375761 BEARING, Roller
63 0308621 O RING, Retainer to housing
65 0980370 BUMBER ASSEMBLY
67 0313223 TILT QUADRANT
68 0308591 COVER,Starboard
69 0313235 GEAR
70 0308592 GASKET, Water cover
71 0909163 RETAINER, Drivesaft
72 0981099 COVER, Exhaust housing
73 0908834 SCREW, 3/8-16 unc, 3/4 lg
74 0911104 TRANSFER
75 0909638 SCREW, Cover to housing
76 0910238 O-RING
77 0313228 COVER, Gear housing
80 0907774 SEAL
81 0910354 WORM WHEEL
83 0608030 THRUST WASHER, Worm gear
84 0910355 WORM GEAR, Steering
85 0982949 UPPER GEARCASE GASKET & SEAL KIT
86 0983218 WATER PUMP REPAIR KIT
