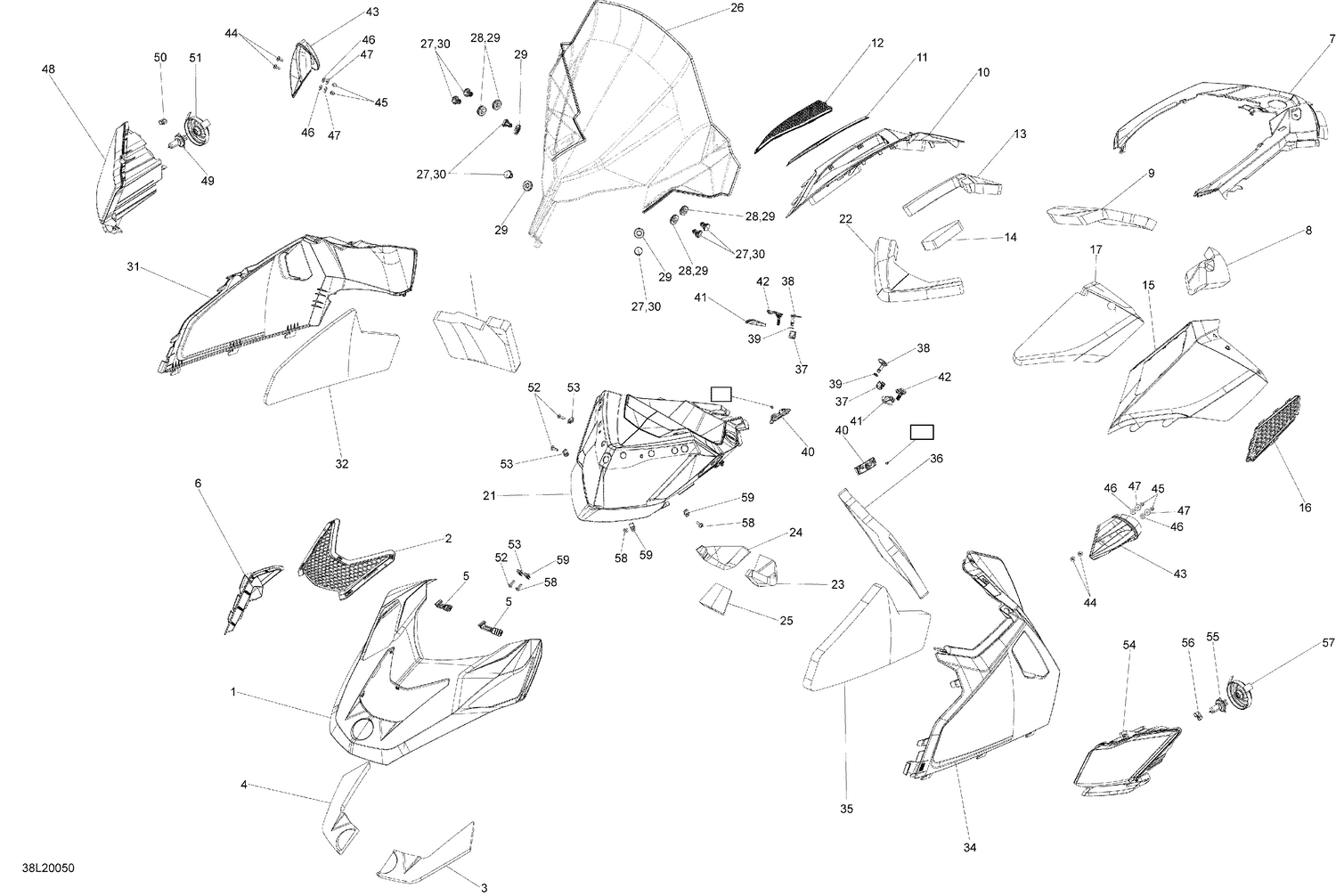

09- Body - Hood Section
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304814 | White, Hood |
| 2 | 517304843 | Hood grill front |
| 3 | 517304330 | Isolation L.H. |
| 4 | 517304214 | Isolation R.H. |
| 5 | 517304289 | Latch Pannel |
| 6 | 517306980 | Scoop Grill This part replaces 517304155. |
| 7 | 517305220 | Black, Console |
| 8 | 517305644 | Isolation left |
| 9 | 517304318 | Isolation right |
| 10 | 517304826 | White, RH Upper Side Panel |
| 11 | 517304015 | Acces panel grill R.H. |
| 12 | 517304016 | Access Panel Grill Lower RH |
| 13 | 517304311 | Isolation |
| 14 | 517305987 | Insulator |
| 15 | 517304837 | White, LH Upper Side Panel |
| 16 | 517303893 | L.H. Acces panel grill |
| 17 | 517304313 | Insulator |
| 21 | 517304272 | Indicator Support |
| 22 | 517304314 | Isolation front |
| 23 | 517304315 | Isolation right |
| 24 | 517304316 | R.H. Isolation |
| 25 | 517304319 | Isolation middle |
| 27 | 517304744 | Button |
| 28 | 517303756 | Grommet |
| 29 | 517303756 | Grommet |
| 30 | 517304744 | Button |
| 31 | 517306977 | Panel_Body Rh B-160 This part replaces 517304328. |
| 32 | 517304709 | Foam Right |
| 34 | 517306979 | Panel_Body Lh B-160 This part replaces 517304329. |
| 35 | 517304707 | Foam LH |
| 36 | 517304309 | Isolation rear L.H. |
| 37 | 517304297 | Handle Fastener Quarter-Turn |
| 38 | 517304296 | Quarter-Turn Handle |
| 39 | 517304538 | Locking Plate |
| 40 | 517303756 | Grommet |
| 41 | 517304075 | End Piece Latch |
| 42 | 517306057 | Panel Latch |
| 44 | 250000721 | Torx Truss Screw M6 X 16 |
| 45 | 232361493 | Nut Hexagonal Domed M6 |
| 46 | 250200024 | Rubber Washer 5 mm |
| 47 | 20117 | Washer |
| 49 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 50 | 515176498 | Kansi |
| 51 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 52 | 250000722 | Torx Truss Screw M6 x 20 |
| 53 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 55 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 56 | 515176498 | Kansi |
| 57 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 58 | 250000722 | Torx Truss Screw M6 x 20 |
