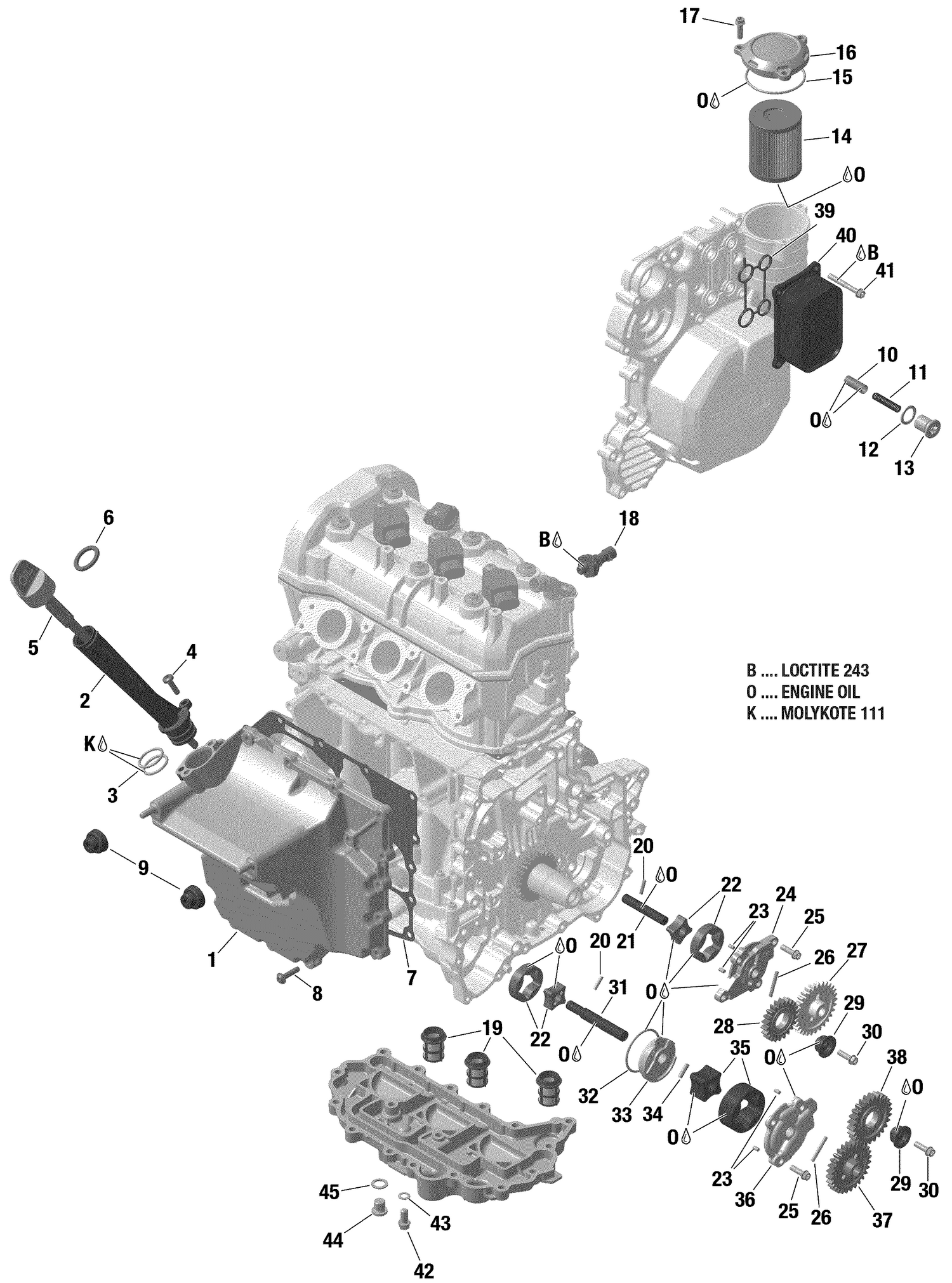

01- Engine Lubrication 900 ACE
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420656708 | Oil Sump Cover This part replaces 420656705. |
| 2 | 420656900 | Oil Filler Tube |
| 3 | 420430440 | O-Ring DIN 3771-25X3-N, FPM 75 |
| 4 | 420441386 | Flanged Torx Screw M6 X 20 |
| 6 | 420431790 | Gasket Ring |
| 7 | 420431848 | Gasket This part replaces 420431845. |
| 8 | 420841549 | Flanged Torx Screw M6 X 25 |
| 9 | 420860150 | Rubber Grommet |
| 10 | 420256591 | Pression Regulating Piston This part replaces 420256518. |
| 11 | 420239445 | Spring DM6,95 D1,15 L46 |
| 12 | 420430624 | Gasket Ring This part replaces 420430623. |
| 13 | 420441372 | Plug Screw |
| 14 | 420956124 | Oil Filter |
| 15 | 420230923 | O-Ring This part replaces 420650500. |
| 16 | 420612135 | Oil Filter Cover This part replaces 420612132. |
| 17 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 18 | 420256915 | Oil Pressure Switch |
| 19 | 420656680 | Oil Sieve |
| 20 | 420232731 | Needle Pin |
| 21 | 420820120 | Oil Pump Shaft |
| 22 | 420256348 | Oil Pump Rotor |
| 23 | 420929075 | Needle Pin ISO 8734-4X8-A-ST |
| 24 | 420911080 | Oil Pump Cover |
| 25 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 26 | 420232431 | Needle Pin |
| 27 | 420834882 | Oil Pump Gear, 29 Teeth |
| 28 | 420835400 | Gear 22 Teeths |
| 29 | 420947394 | Spacer |
| 30 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 31 | 420837916 | Oil Pump Shaft |
| 32 | 420631830 | O-Ring DIN 3771-46X2,5-N, 72 NBR 872 |
| 33 | 420611950 | Oil Pump Cover |
| 34 | 420632221 | Needle Pin |
| 35 | 420256836 | Oil Pump Rotor |
| 36 | 420611980 | Oil Pump Cover |
| 37 | 420834887 | Oil Pump Gear, 28 Teeth |
| 38 | 420835321 | Idle Gear, 26 Teeth |
| 39 | 420431871 | Gasket This part replaces 420431870. |
| 40 | 420656698 | Oil Water Heat Exchanger |
| 41 | 420440324 | Flanged Torx Screw M6 X 45 |
| 42 | 420440852 | Flanged Torx Screw M8 X 16 |
| 43 | 420950141 | Sealing Ring A 8X13 DIN 7603 |
| 44 | 420241701 | Plug Screw M12 x 1,5 |
