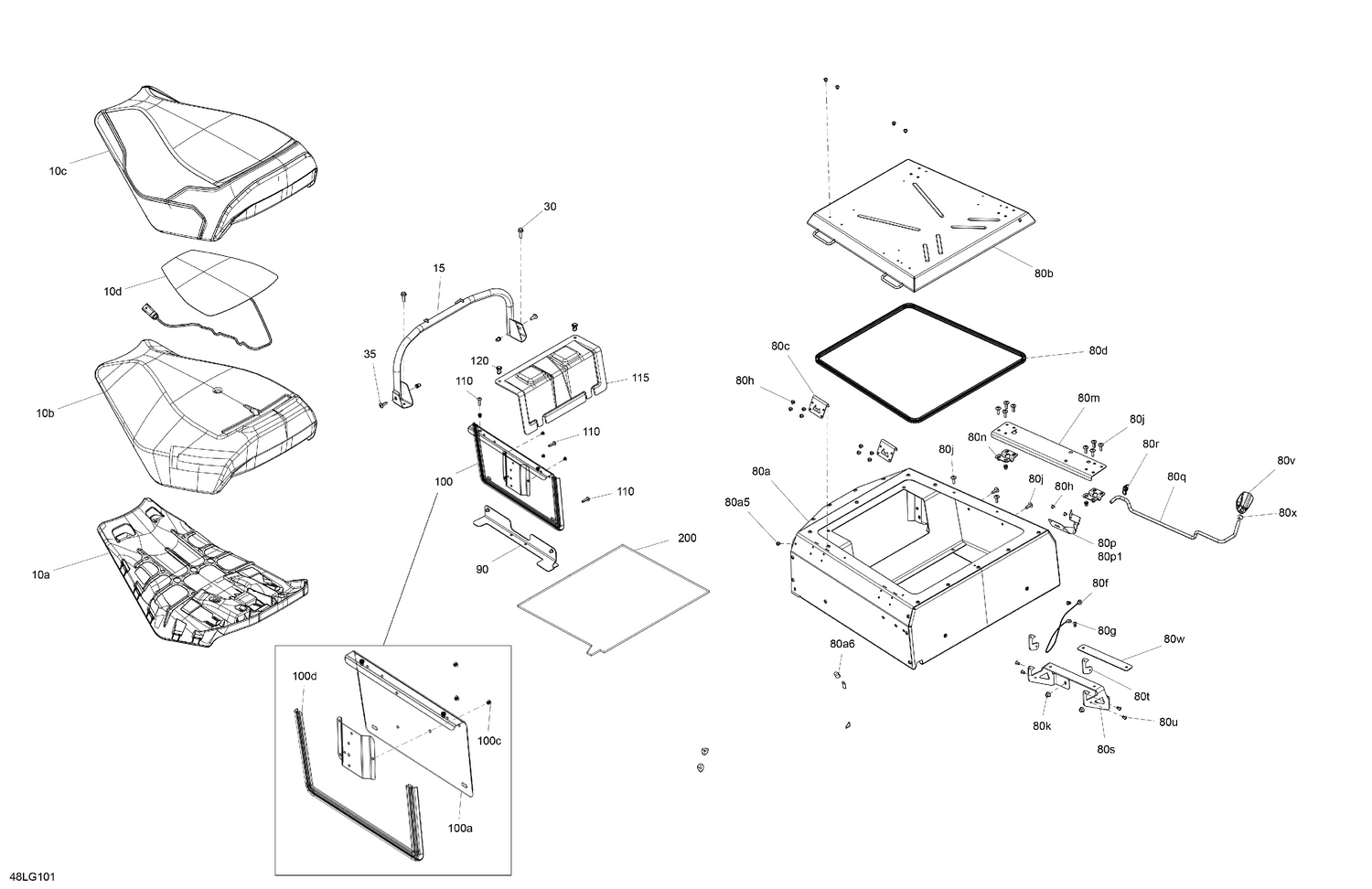

07- Body - Seat
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510008285 | Driver Seat Base |
| 10b | 510007880 | Foam_Seat Driver |
| 10c | 510008375 | Seat Cover |
| 10d | 515178727 | Heated Element |
| 15 | 510007101 | Seat Support |
| 30 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 35 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 80a5 | 390909200 | Avex Rivet |
| 80a6 | 518325560 | Adhesive Patch |
| 80b | 511001673 | Storage Cover Ass'y |
| 80c | 510007179 | Hinge Plate |
| 80d | 293250551 | Weatherstrip |
| 80f | 293750070 | Seat Retainer Cable |
| 80g | 293150163 | Rivet Hucklok |
| 80h | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 80j | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 80k | 233061414 | Elastic flange nut M6 |
| 80m | 510007175 | Lock Plate |
| 80n | 510007174 | Lock Hinge |
| 80p1 | 510007181 | Lock Plate |
| 80q | 510007178 | Lock Wire |
| 80r | 520002429 | Locking Spring |
| 80s | 510007176 | Locking Plate |
| 80t | 510007177 | Lock Plate |
| 80u | 390909100 | Avex Rivet |
| 80v | 707003211 | Lever Trim |
| 80w | 510007180 | Lock Plate |
| 80x | 232180491 | Hex. Jam Nut M8 |
| 90 | 511001787 | Fastening Plate |
| 100a | 511001685 | NEEDS DESCRIPTION |
| 100c | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 100d | 293250570 | NEEDS DESCRIPTION |
| 110 | 250000715 | Torx Truss Screw M5 X 20 |
| 115 | 511001676 | Access Cover |
| 120 | 293150230 | Tuflok Plastic Rivet |
