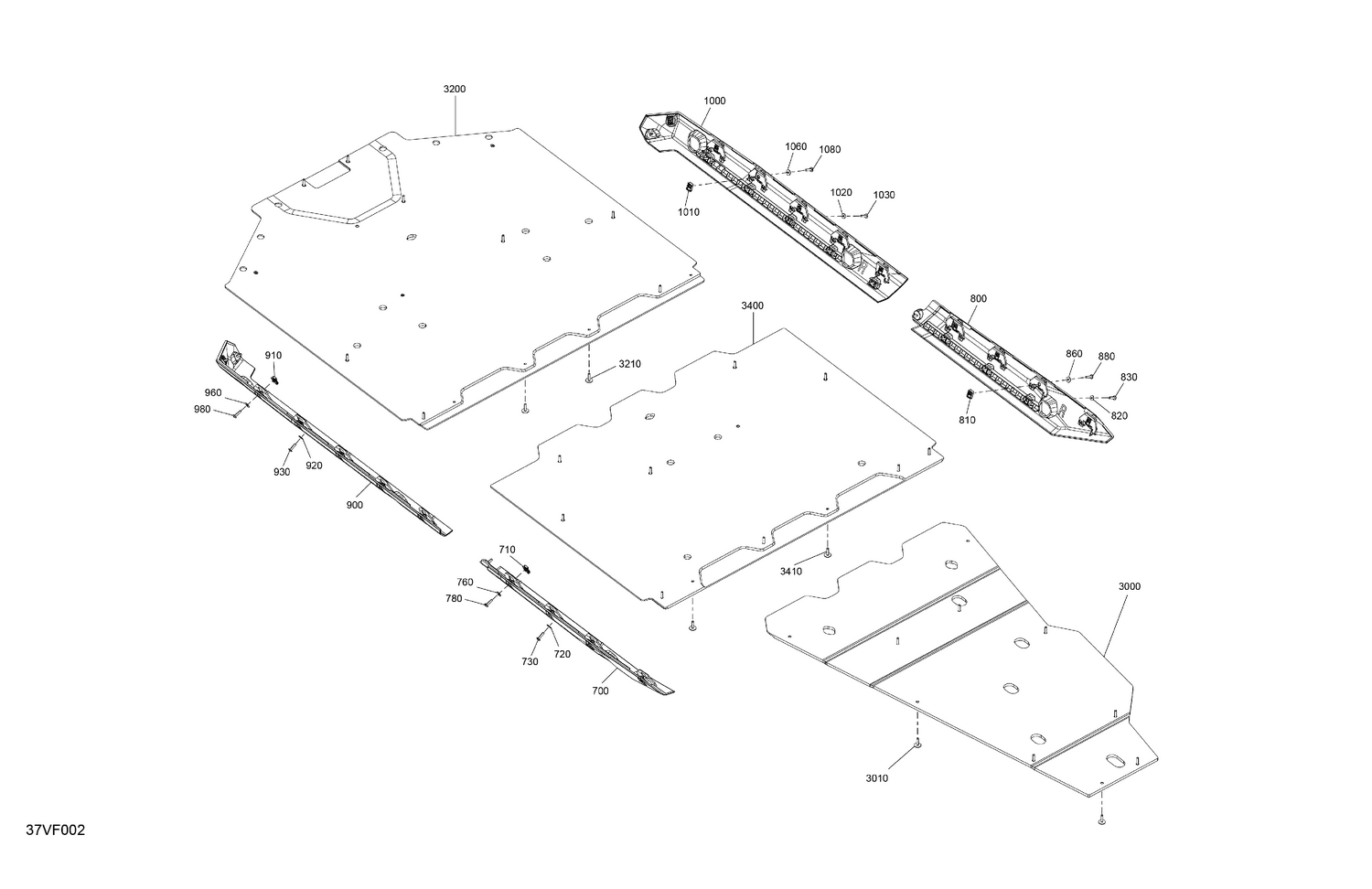

07- Body - Skid Plate
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 700 | 705017472 | Deep Black, LH Rear Rocker Panel Slider |
| 710 | 250100208 | Panel Nut M6 X 1.0 |
| 720 | 234062670 | Stainless Steel Flat Washer |
| 730 | 250000807 | Torx Truss Screw M6 X 25 |
| 760 | 234062670 | Stainless Steel Flat Washer |
| 780 | 250000807 | Torx Truss Screw M6 X 25 |
| 800 | 705017473 | Deep Black, RH Rear Rocker Panel Slider |
| 810 | 250100208 | Panel Nut M6 X 1.0 |
| 820 | 234062670 | Stainless Steel Flat Washer |
| 830 | 250000807 | Torx Truss Screw M6 X 25 |
| 860 | 234062670 | Stainless Steel Flat Washer |
| 880 | 250000807 | Torx Truss Screw M6 X 25 |
| 900 | 705017470 | Deep Black, LH Front Rocker Panel Slider |
| 910 | 250100208 | Panel Nut M6 X 1.0 |
| 920 | 234062670 | Stainless Steel Flat Washer |
| 930 | 250000807 | Torx Truss Screw M6 X 25 |
| 960 | 234062670 | Stainless Steel Flat Washer |
| 980 | 250000807 | Torx Truss Screw M6 X 25 |
| 1000 | 705017471 | Deep Black, RH Front Rocker Panel Slider |
| 1010 | 250100208 | Panel Nut M6 X 1.0 |
| 1020 | 234062670 | Stainless Steel Flat Washer |
| 1030 | 250000807 | Torx Truss Screw M6 X 25 |
| 1060 | 234062670 | Stainless Steel Flat Washer |
| 1080 | 250000807 | Torx Truss Screw M6 X 25 |
| 3000 | 705212722 | Rear Skid Plate |
| 3010 | 250001348 | Screw Hex Sems Threadlock M6 X 30 |
| 3200 | 705019036 | Front Skid Plate |
| 3210 | 250001348 | Screw Hex Sems Threadlock M6 X 30 |
| 3400 | 705212776 | Central Skid Plate |
