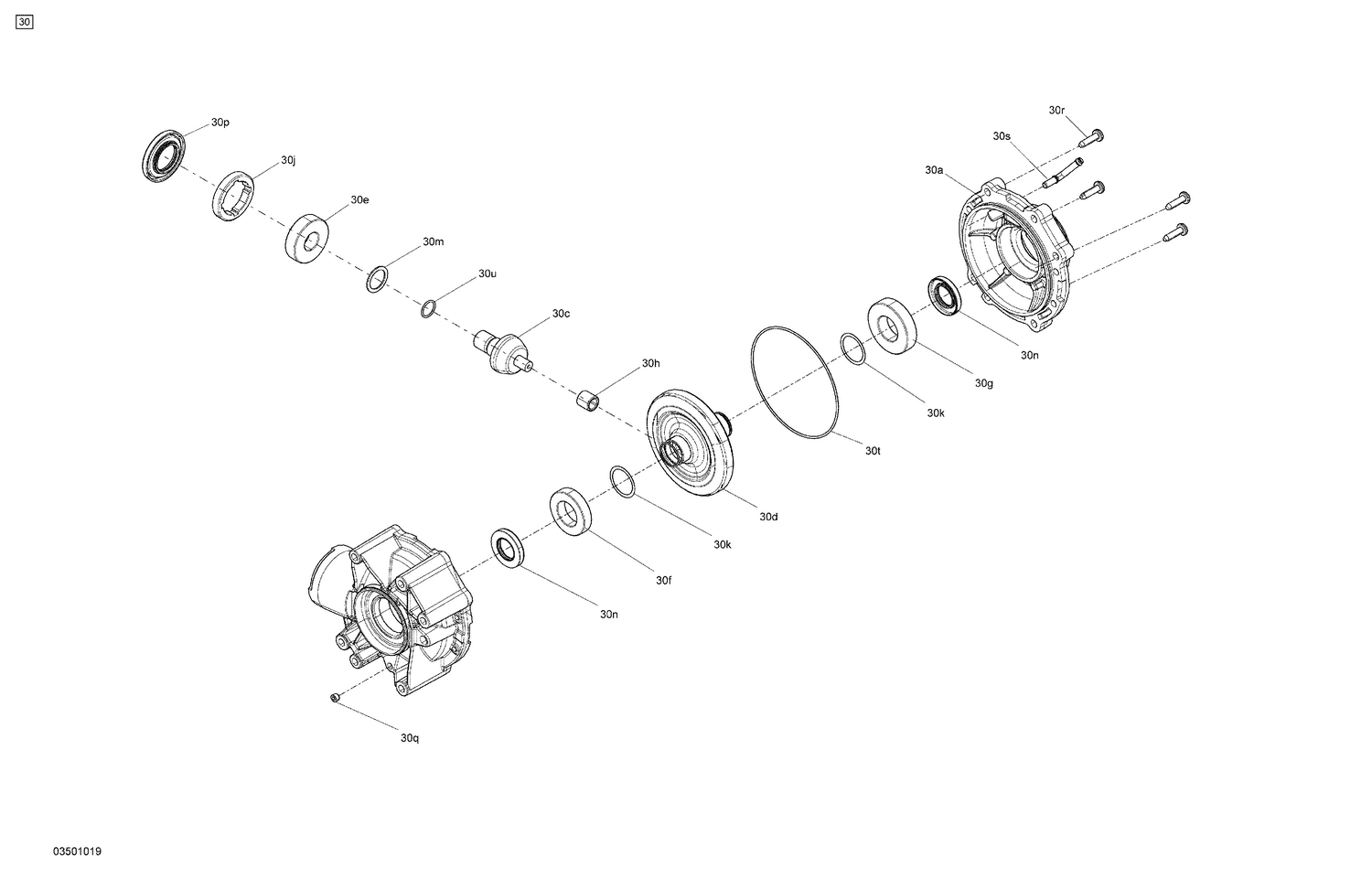

04- Drive - Rear Section - Differential Parts - XT
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502734 | Rear Cover |
| 30c | 705502053 | Pinion 10 Teeth |
| 30d | 705502682 | Gear 36 Teeth |
| 30e | 705502736 | Ball Bearing |
| 30f | 705502737 | Ball Bearing |
| 30g | 705502738 | Ball Bearing |
| 30h | 705502058 | Needle Bearing |
| 30j | 705502059 | Nut |
| 30k | 705502060 | Differential Shim 0.02 mm |
| 30m | 705502061 | Pinion Gear Shim 1.67 mm |
| 30n | 705501556 | Oil Seal |
| 30p | 705502062 | Oil Seal |
| 30q | 705501724 | Plug Drain |
| 30r | 705502063 | Screw |
| 30s | 705501584 | Breather Tube |
| 30t | 705502064 | Seal |
| 30u | 705502065 | O-Ring |
