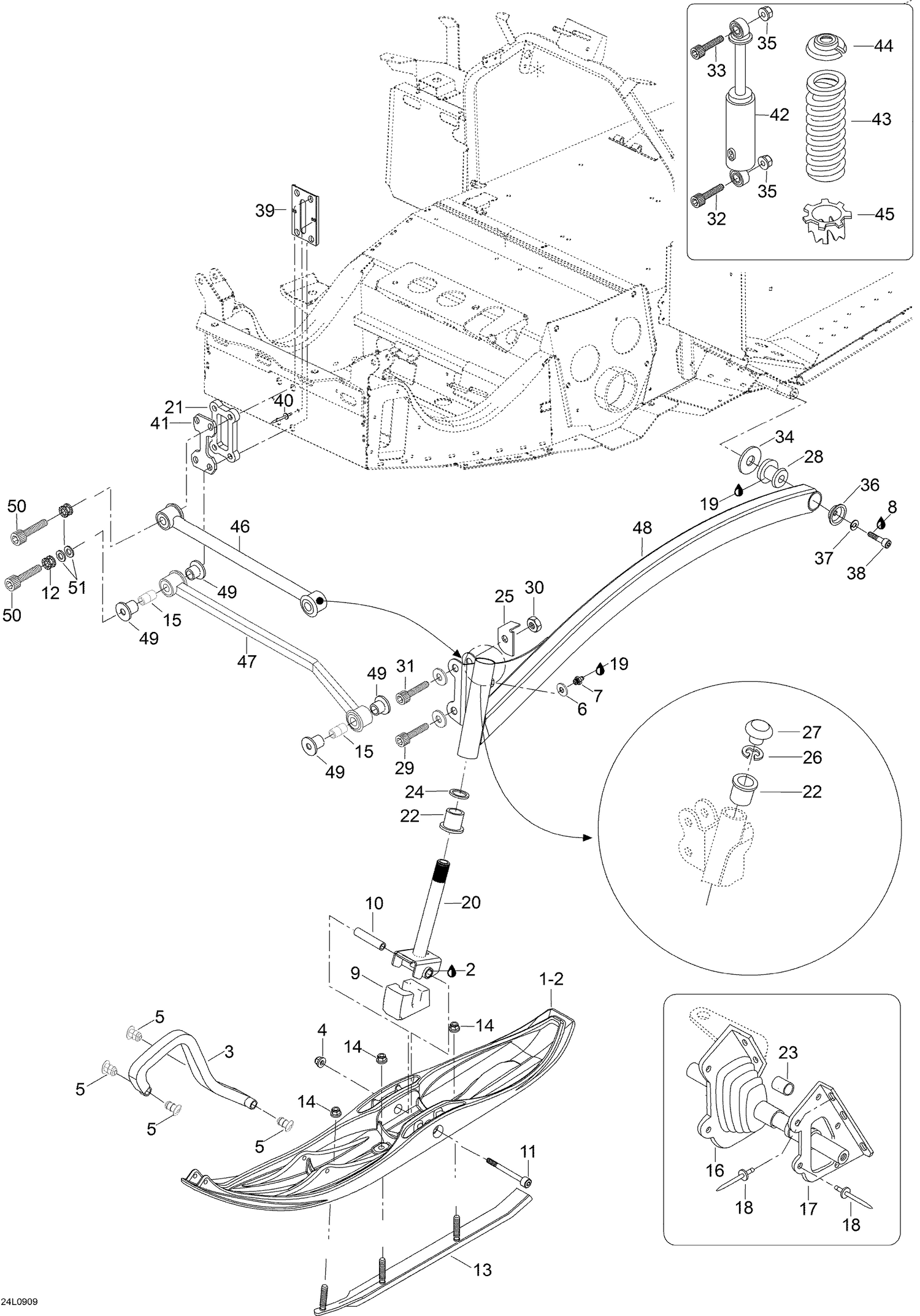

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (54)

RefPart NumberDescription
1 505073034 Ski This part replaces 605153775.
2 605348392 Bushing
3 505070963 Black, Handle
4 33074 NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.
5 505071812 Retainer 17mm long
6 234061410 Flat Washer 6 mm
7 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.
8 293800060 Loctite 243, 10 ml
9 605348458 SKI STOPPER - Call your local BRP dealership
10 506133300 Spacer
11 40225 Allen Screw M10x140 8.8zn(1=10pcs) This part replaces M40225.
12 M20074 Lock Washer
13 619400006 CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership
14 33074 NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.
15 605450024 BUSHING - Call your local BRP dealership
16 570024800 RH Tie Rod Cap
16 570024900 LH TIE ROD CAP - Call your local BRP dealership
17 605355205 PLATE COVER LH - Call your local BRP dealership
17 605355206 PLATE COVER RH - Call your local BRP dealership
18 36009 Rivet This part replaces M36009.
19 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
20 505072001 SKI LEG - Call your local BRP dealership
21 605350191 Spacer 17.5
22 505070003 Cushion
23 572036500 BUSHING - Call your local BRP dealership
24 505070004 WASHER - Call your local BRP dealership
25 605448861 RH Plate Locking
25 605448862 LH Plate Locking
26 371910400 CIRCLIP - Call your local BRP dealership
27 572091300 Cap
28 570062200 DAMPER - Call your local BRP dealership
29 M40371 Screw Allen M12 X 55
30 232521414 NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
31 M40306 Allen Screw M12 X 60
32 M40136 Socket Head Screw. M10 X 50
33 M40837 Screw M10 X 55
34 503146700 WASHER - Call your local BRP dealership
35 233601416 Elastic Locking Nut M10 X 1.5
36 705007171 Cup This part replaces 506115800.
37 234181401 Lock Washer 8 mm
38 M40810 Screw Allen M8 X 20
39 605353972 PLATE - Call your local BRP dealership
40 36005 Rivet This part replaces M36005.
41 605450900 MIDDLE PLATE - Call your local BRP dealership
42 23183 Shock This part replaces M23183.
43 M250143 White Spring
44 230076 Spring Seat This part replaces M230076.
45 M230078 CAM - Call your local BRP dealership
46 605350022 UPPER ARM ASSY - Call your local BRP dealership
47 605252224 LOWER ARM - Call your local BRP dealership
48 605251767 SWING ARM WELD LH B - Call your local BRP dealership
48 605251768 Swing Arm Weld RH
49 506149100 CUSHION - Call your local BRP dealership
50 M40370 SCREW ALLEN M12 X 75 - Call your local BRP dealership
