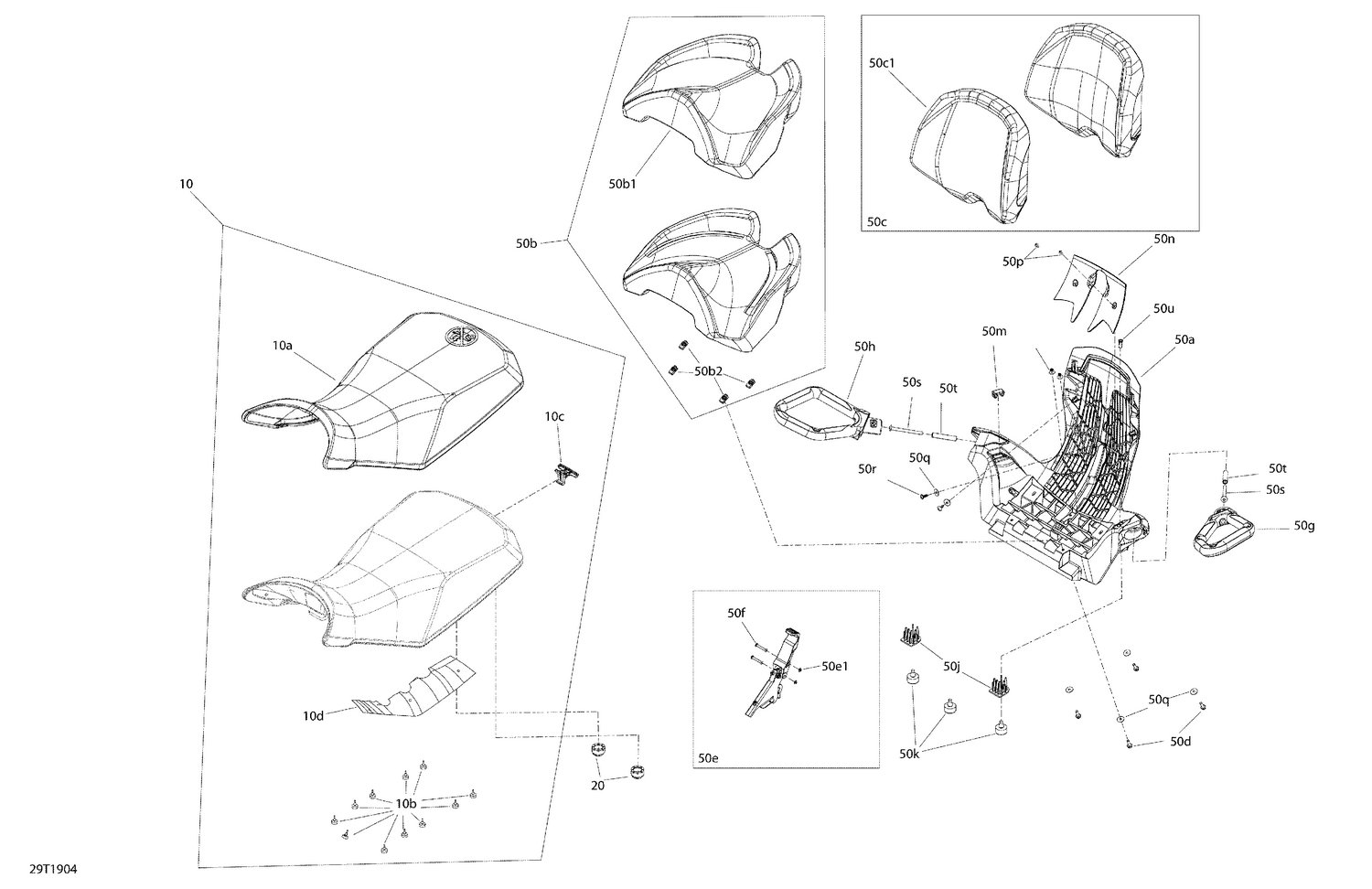

09- Seat - 450 EFI & 570 EFI MAX
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 708000724 | Black, Seat Cover |
| 10b | 708000759 | Rubber Stopper |
| 10c | 708000909 | Latch |
| 10d | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 20 | 708000760 | Bumper Rubber |
| 50a | 708002574 | Seat Base |
| 50b | 708002088 | Rear Seat |
| 50b1 | 708001290 | Black, Seat Cover |
| 50b2 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 50c | 708002085 | Back Rest |
| 50c1 | 708001841 | Back Rest Cover |
| 50d | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 50e | 708001532 | Latch |
| 50e1 | 234051410 | Flat Washer M5 |
| 50f | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 50g | 703500806 | LH Passenger Seat Handle Kit |
| 50h | 703500807 | RH Passenger Seat Handle Kit |
| 50j | 708001483 | Seat Support |
| 50k | 708000758 | Rubber Stopper |
| 50m | 708001511 | Insert |
| 50n | 708001512 | Cap |
| 50p | 250000577 | Torx Truss Screw K40 X 12 |
| 50q | 224060201 | Flat Washer |
| 50r | 250000546 | Oval Head Torx Screw K60 X 16 |
| 50s | 250000806 | Torx Truss M8 X 90 |
| 50t | 705009248 | Sleeve |
