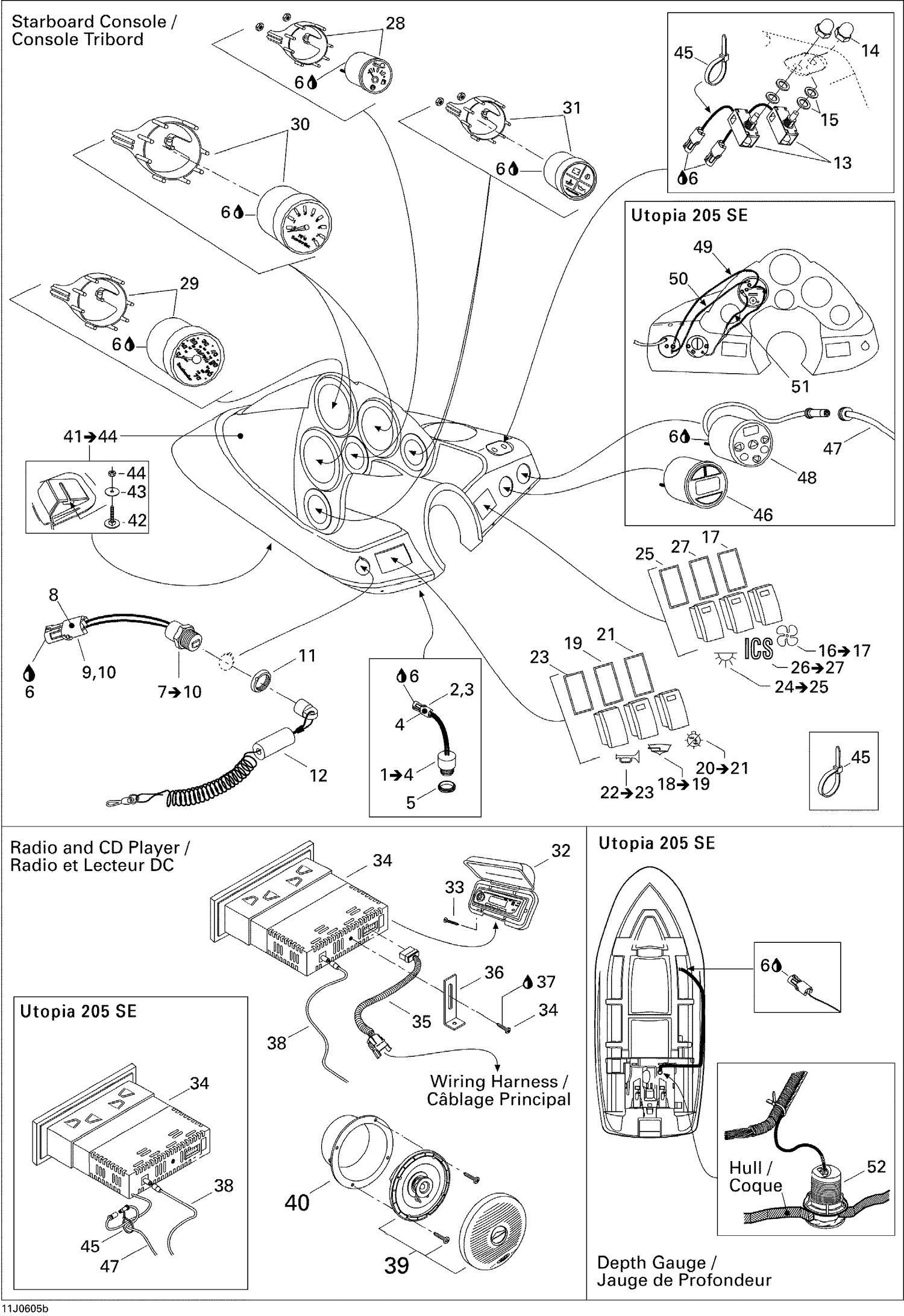

10- Electrical Accessories 2
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278000222 | Male Terminal |
| 3 | 278000218 | Wire Seal |
| 4 | 278000217 | Female Housing, 2 Circuits |
| 5 | 278000707 | Buzzer Nut |
| 6 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 8 | 278000273 | Male Housing, 3 Circuits |
| 9 | 278000218 | Wire Seal |
| 10 | 278000223 | Female Terminal |
| 11 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 12 | 278002199 | Safety Lanyard, Antitheft This part replaces 278001543. |
| 13 | 278000621 | IGNITION SWITCH - Call your local BRP dealership |
| 14 | 278000565 | IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 15 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 17 | 204470132 | Gasket |
| 19 | 204470132 | Gasket |
| 21 | 204470132 | Gasket |
| 23 | 204470132 | Gasket |
| 25 | 204470132 | Gasket |
| 27 | 204470132 | Gasket |
| 28 | 204471055 | Fuel Gauge |
| 29 | 204470943 | Speedometer |
| 30 | 204471019 | Tachometer Gauge |
| 31 | 204470959 | ENGINE WARNING GAUGE - Call your local BRP dealership |
| 32 | 204470894 | RADIO CD PLAYER COVER - Call your local BRP dealership |
| 33 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 35 | 204470930 | Stereo Adaptor Harness |
| 37 | 293800060 | Loctite 243, 10 ml |
| 38 | 204470931 | Antenna |
| 39 | 204471059 | Speaker, White |
| 40 | 204470982 | SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 42 | 204000130 | Elevator Bolt |
| 43 | 204100089 | FLAT WASHER 9/32? - Call your local BRP dealership |
| 44 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 45 | 293750002 | Tie Wrap 142 mm |
