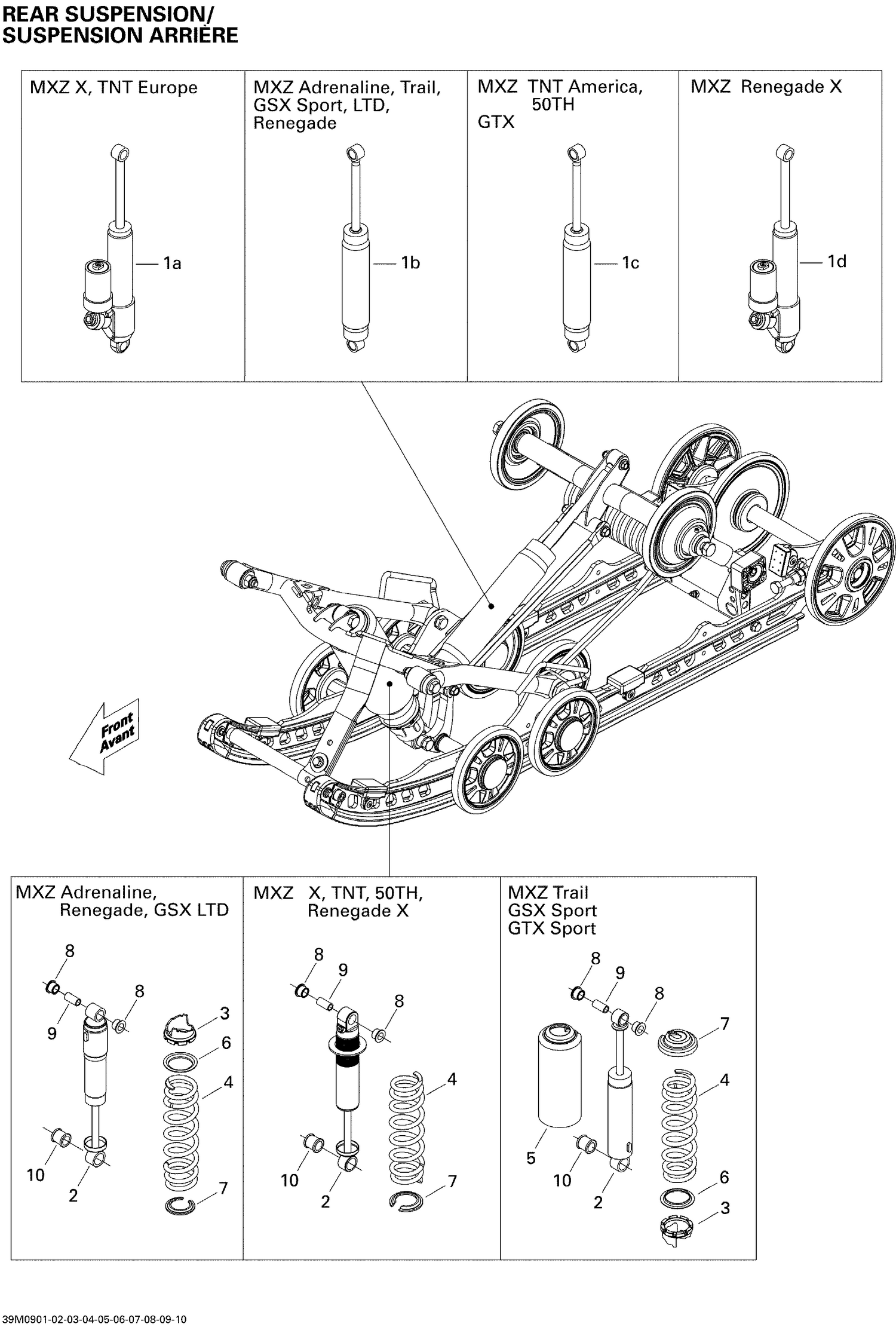

08- Rear Suspension Shocks
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1a | XXX | Not Available As Spare Parts |
| 1b | XXX | Not Available As Spare Parts |
| 1c | 503193192 | Rear Shock HPG SEAL This part replaces 503191853. |
| 1d | XXX | Not Available As Spare Parts |
| 2 | 503191590 | Center Shock |
| 3 | 505073625 | Adjustment Cam This part replaces 503183700. |
| 4 | 503191329 | Black, Spring |
| 5 | 503193663 | Protector This part replaces 503191126. |
| 6 | 503191872 | Spring Guide |
| 7 | 706200881 | Spring Stopper |
| 8 | 503189117 | Urethane Bushing |
| 9 | 503189282 | Bushing |
