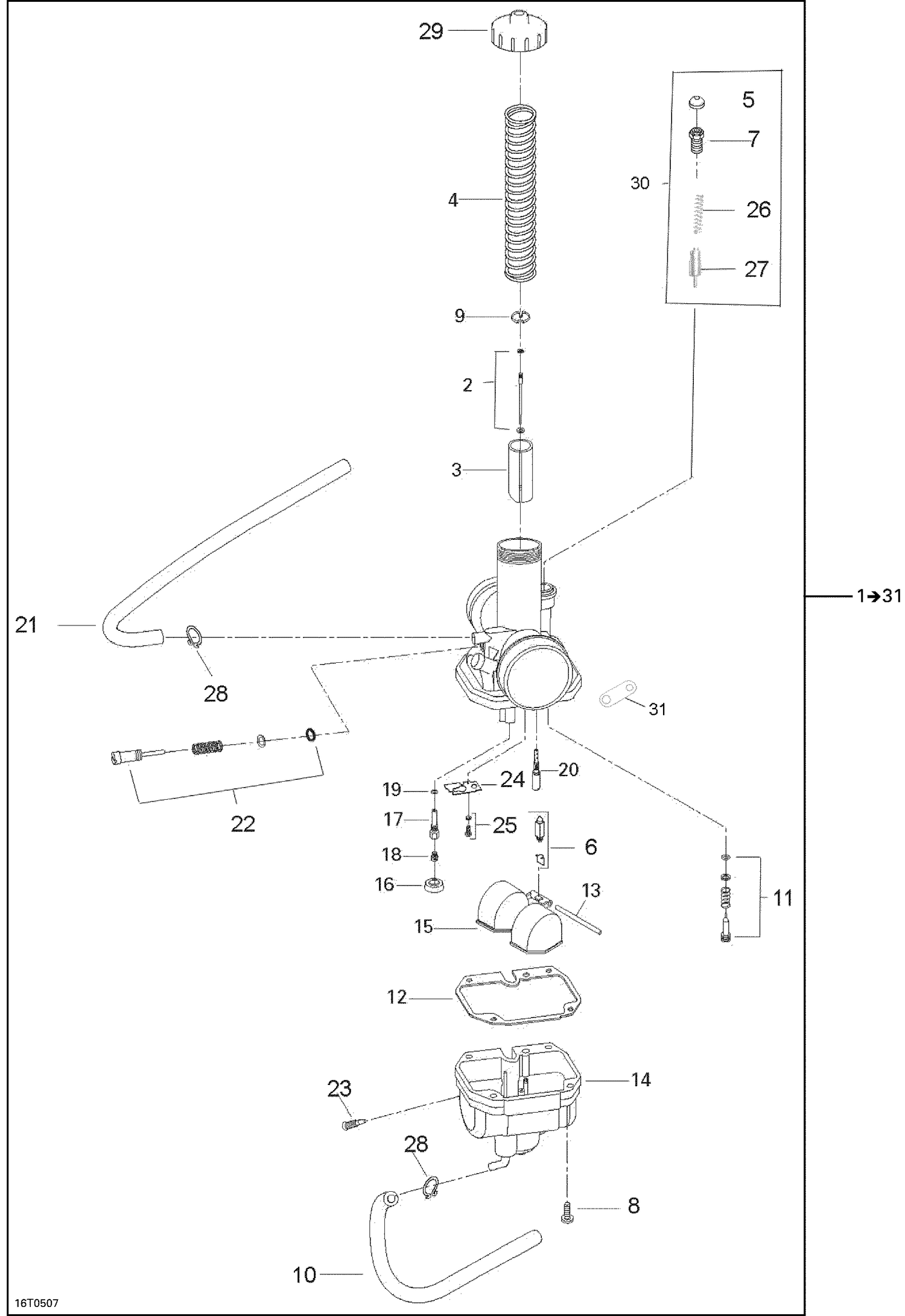

| Ref | Part Number | Description |
|---|
| 2 |
A16104179000 |
ENSEMBLE D'AIGUILLE - Call your local BRP dealership |
| 3 |
707200201 |
VALVE PISTON - Call your local BRP dealership |
| 4 |
707200202 |
SPRING - Call your local BRP dealership |
| 5 |
Not |
Available As Spare Part - Rubber Cap |
| 6 |
404046103 |
NEEDLE VALVE 1.8 - Call your local BRP dealership |
| 7 |
707200009 |
Holder Guide |
| 8 |
404901400 |
SCREW - Call your local BRP dealership |
| 9 |
707200204 |
Clip |
| 10 |
707200218 |
HOSE - Call your local BRP dealership |
| 11 |
A16115179000 |
AIR ADJUSTER SCREW KIT - Call your local BRP dealership |
| 12 |
707200206 |
Gasket |
| 13 |
404123400 |
Pin |
| 14 |
Not |
Available As Spare Part - Float Body Ass'y |
| 15 |
707200207 |
Float Ass’y |
| 16 |
707200208 |
Holder |
| 17 |
707200225 |
Jet Holder |
| 18 |
707200229 |
MAIN JET 105.0 - Call your local BRP dealership |
| 19 |
270500119 |
O-RING - Call your local BRP dealership |
| 20 |
707200227 |
PILOT JET 22.5 - Call your local BRP dealership |
| 21 |
707200212 |
HOSE - Call your local BRP dealership |
| 22 |
A16114179000 |
IDLE SCREW KIT - Call your local BRP dealership |
| 23 |
707200024 |
SCREW - Call your local BRP dealership |
| 24 |
707200217 |
PLATE - Call your local BRP dealership |
| 25 |
404121300 |
Screw With Washer |
| 26 |
Not |
Available As Spare Part - Spring |
| 27 |
Not |
Available As Spare Part - Plunger Ass'y |
| 28 |
707200222 |
Clip |
| 29 |
707200220 |
MIXING CAP - Call your local BRP dealership |
| 30 |
A17215179000 |
Choke Screw Kit |
