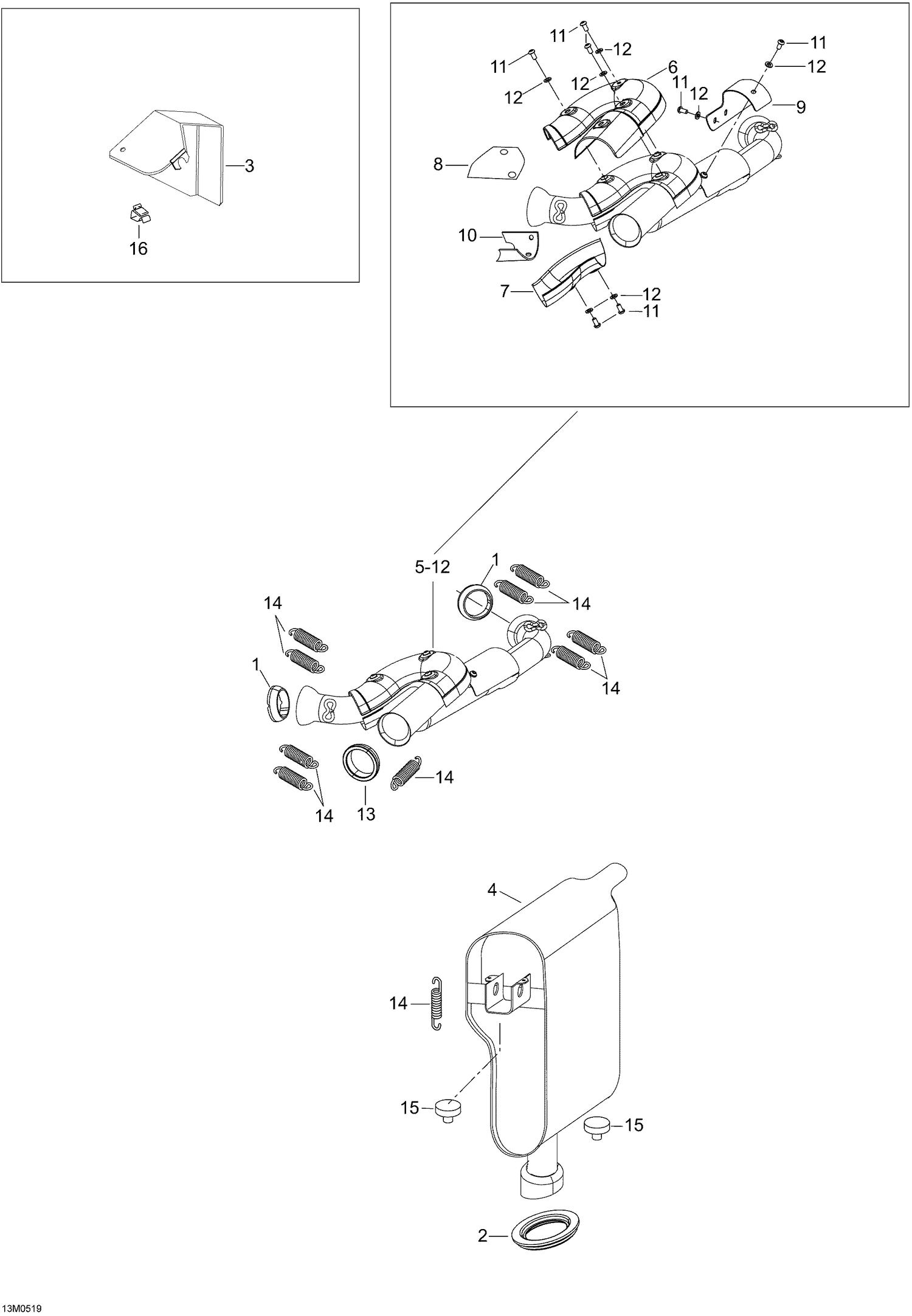

| Ref | Part Number | Description |
|---|
| 1 |
707601033 |
Exhaust Gasket This part replaces 514053532. |
| 2 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 3 |
605352345 |
Heat Protector |
| 4 |
605150881 |
Muffler Assy |
| 6 |
Not |
Available As Spare Part - Heat Cover |
| 7 |
Not |
Available As Spare Part - Heat Cover |
| 8 |
Not |
Available As Spare Part - Heat Cover |
| 9 |
Not |
Available As Spare Part - Heat Cover |
| 10 |
Not |
Available As Spare Part - Heat Cover |
| 11 |
Not |
Available As Spare Part - Socket Head Screw M6 X 10 |
| 12 |
Not |
Available As Spare Part - Washer 6mm |
| 13 |
514054174 |
Exhaust Gasket This part replaces 514053582. |
| 14 |
415107100 |
Spring |
| 15 |
514053654 |
Rubber Bumper This part replaces 570048700. |
