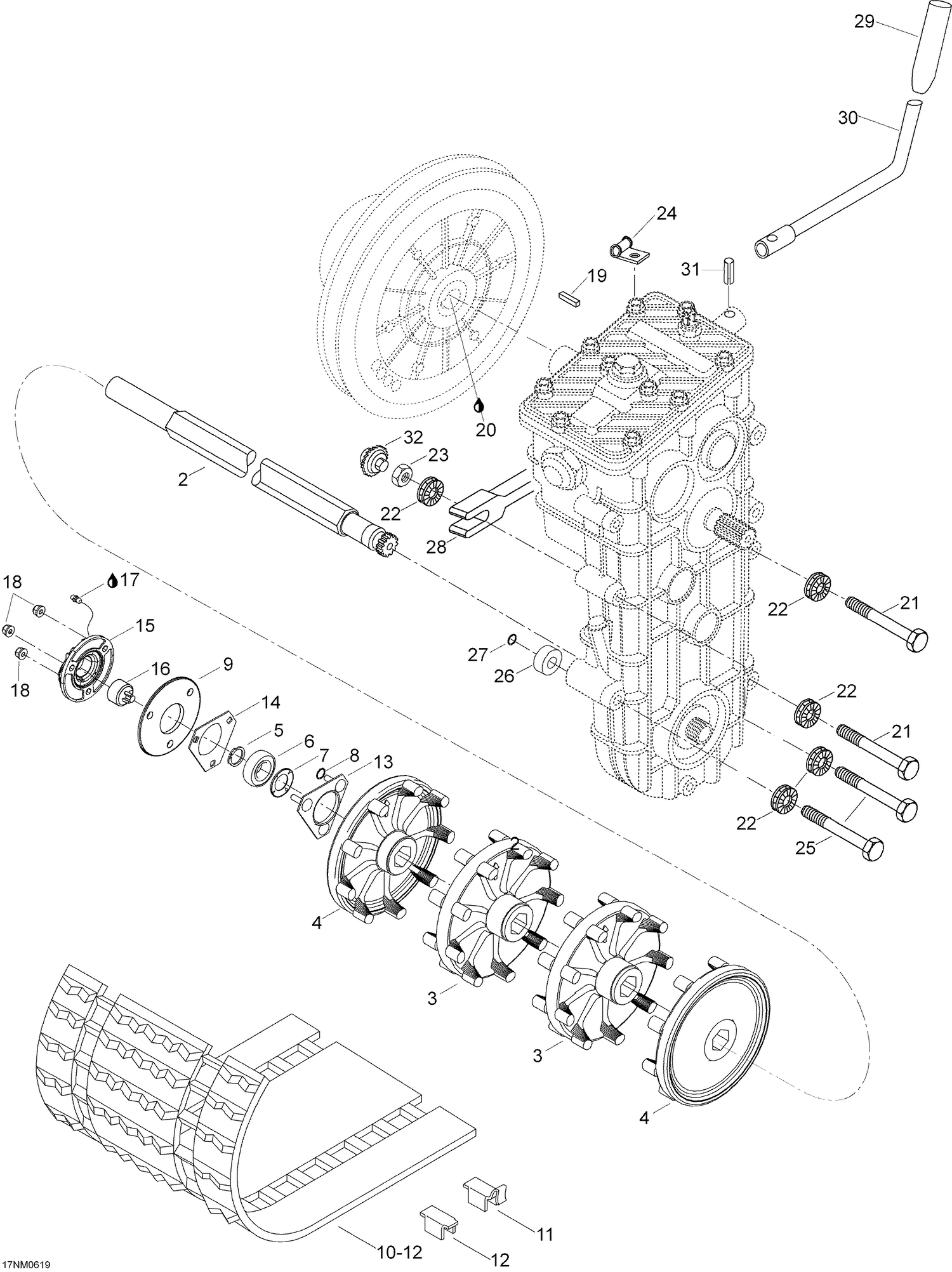

| Ref | Part Number | Description |
|---|
| 2 |
605249455 |
DRIVE AXLE - Call your local BRP dealership |
| 3 |
414931800 |
SPROCKET - Call your local BRP dealership |
| 4 |
415067400 |
HALF SPROCKET - Call your local BRP dealership |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
414484400 |
O-ring |
| 9 |
5446641 |
Ring |
| 11 |
5318323 |
Cleat guide |
| 12 |
5318322 |
Slide guide |
| 13 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 14 |
501025000 |
FLANGE - Call your local BRP dealership |
| 15 |
504152173 |
FLANGE, SPEEDO - Call your local BRP dealership |
| 16 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 17 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 19 |
619690074 |
KEY - Call your local BRP dealership This part replaces 418763. |
| 20 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 21 |
40299 |
Hex. screw M8 x 100 |
| 22 |
20072 |
Lock washer 8mm |
| 23 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 24 |
605453927 |
Clamp |
| 25 |
40291 |
Hex. screw M8 x 110 |
| 26 |
605450155 |
SPACER - Call your local BRP dealership |
| 27 |
506151140 |
O-RING - Call your local BRP dealership |
| 28 |
605351366 |
CONNECTING BAR - Call your local BRP dealership |
| 29 |
28247 |
Button |
| 30 |
605350153 |
SHIFT HANDLE - Call your local BRP dealership |
| 31 |
41007 |
Spring Pin 5 x 24 DIN 1481(1=10pcs) - Call your local BRP dealership |
