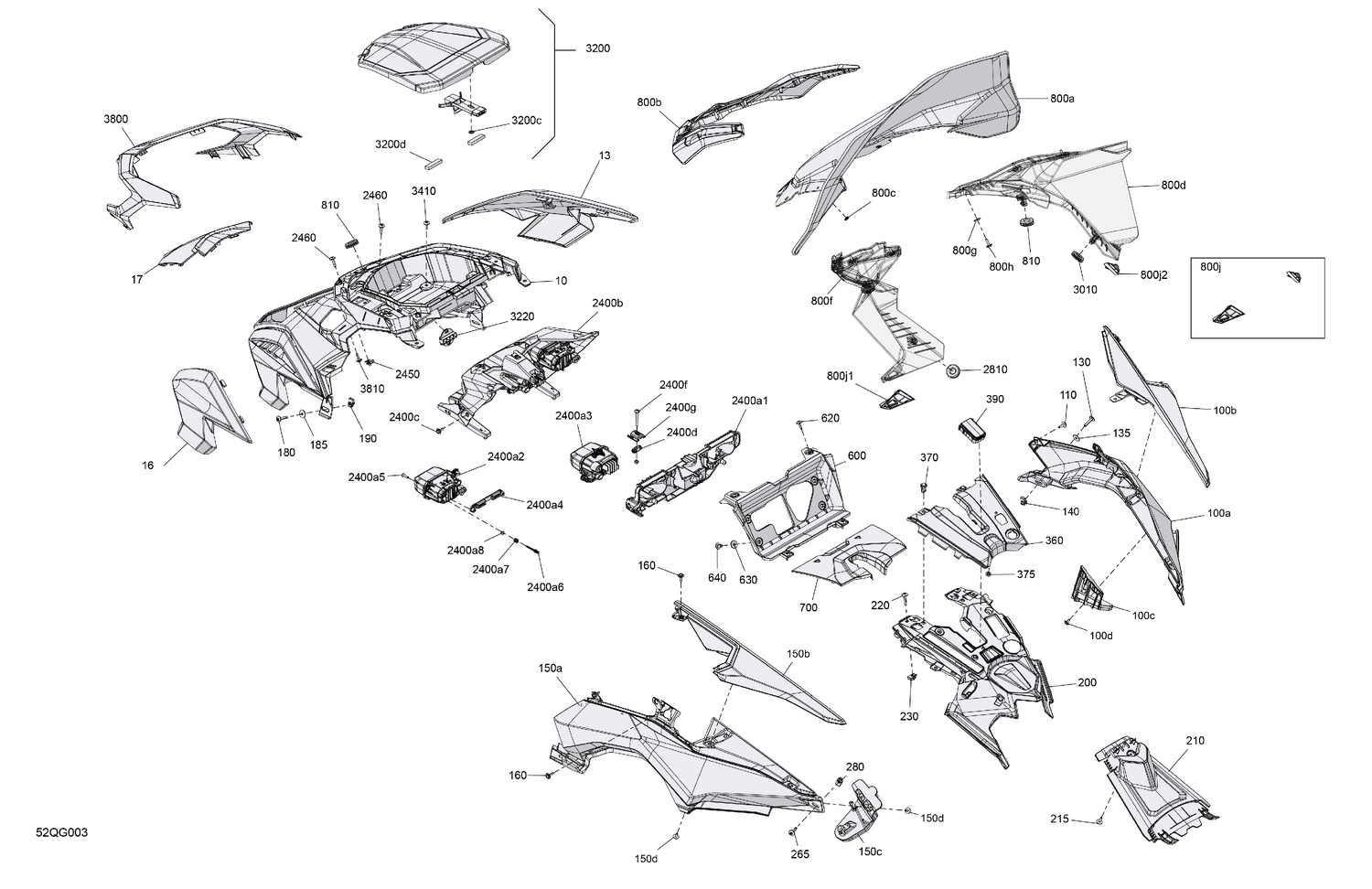

| Ref | Part Number | Description |
|---|
| 10 |
517308907 |
Bright White, Central Hood |
| 13 |
517307864 |
Viper Red, RH Front Hood |
| 16 |
517307865 |
Viper Red, LH Front Hood |
| 17 |
517308681 |
Bright White, Front Central Cover |
| 100a |
517308909 |
Bright White, RH Rear Hood |
| 100b |
517308647 |
Deep Black, RH Rear Hood Trim |
| 100c |
517307816 |
RH Mounting Clamp |
| 100d |
250000805 |
Plastite Screw M4 X 10 |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
250000587 |
Torx Screw M5 X 26 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 150a |
517308911 |
Bright White, LH Rear Hood |
| 150b |
517308648 |
Deep Black, LH Rear Hood Trim |
| 150c |
517307827 |
LH Mounting Clamp |
| 150d |
250000805 |
Plastite Screw M4 X 10 |
| 160 |
250000725 |
Screw M4 X 16 |
| 180 |
250000587 |
Torx Screw M5 X 26 |
| 185 |
250200166 |
Washer |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 200 |
517308682 |
Deep Black, Rear Console |
| 210 |
517308906 |
Rear Console Support |
| 215 |
250000725 |
Screw M4 X 16 |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 |
| 265 |
250000587 |
Torx Screw M5 X 26 |
| 280 |
250000958 |
Panel Nut M5 X 0.8 |
| 360 |
517309792 |
Front Console |
| 370 |
293150230 |
Tuflok Plastic Rivet |
| 375 |
250100163 |
Push Nut |
| 390 |
517308759 |
Connecting Plate |
| 600 |
517307751 |
Gauge Support |
| 620 |
250000889 |
Screw M4 X 16 |
| 630 |
234062670 |
Flat Washer, Stainless |
| 640 |
250000767 |
Torx Truss Screw M6 X 12 |
| 700 |
517308111 |
Access Cover |
| 800a |
517309738 |
Windshield_640 Mm |
| 800b |
517308793 |
Windshield Support Long |
| 800c |
250100163 |
Push Nut |
| 800d |
517310041 |
RH Air Deflector |
| 800f |
517310042 |
LH Air Deflector |
| 800g |
517306524 |
Rubber Washer 4 MM |
| 800h |
250000889 |
Screw M4 X 16 |
| 800j1 |
517308739 |
LH Windshield Support |
| 800j2 |
517308740 |
RH Windshield Support |
| 810 |
517303756 |
Grommet |
| 2400a1 |
517307862 |
Headlight Support |
| 2400a2 |
710008088 |
Low Beam Light |
| 2400a3 |
710006910 |
HIgh Beam Light |
| 2400a4 |
517309294 |
Pivot Support |
| 2400a5 |
250000759 |
Torx Truss Pt K40 X 16 |
| 2400a6 |
517309133 |
Threaded Rod |
| 2400a7 |
517309058 |
Compression Spring |
| 2400a8 |
517309134 |
Specialized Nut |
| 2400b |
517308162 |
Deep Black, Headlight Trim |
| 2400c |
250000725 |
Screw M4 X 16 |
| 2400d |
517308229 |
Molded Housing Nut |
| 2400f |
250001286 |
Torx Screw M5 X 40 |
| 2400g |
517309293 |
Clip |
| 2450 |
250000958 |
Panel Nut M5 X 0.8 |
| 2460 |
250000586 |
Torx Truss M5 X 20 |
| 2810 |
517303756 |
Grommet |
| 3010 |
517303756 |
Grommet |
| 3200c |
732610072 |
Push Nut |
| 3200d |
517308246 |
Joint Seal |
| 3220 |
517308260 |
Box Cap |
| 3410 |
250000889 |
Screw M4 X 16 |
| 3800 |
517308946 |
Hyper Silver, Headlight Trim |
