| Ref | Part Number | Description |
|---|
| 1 |
5005609 |

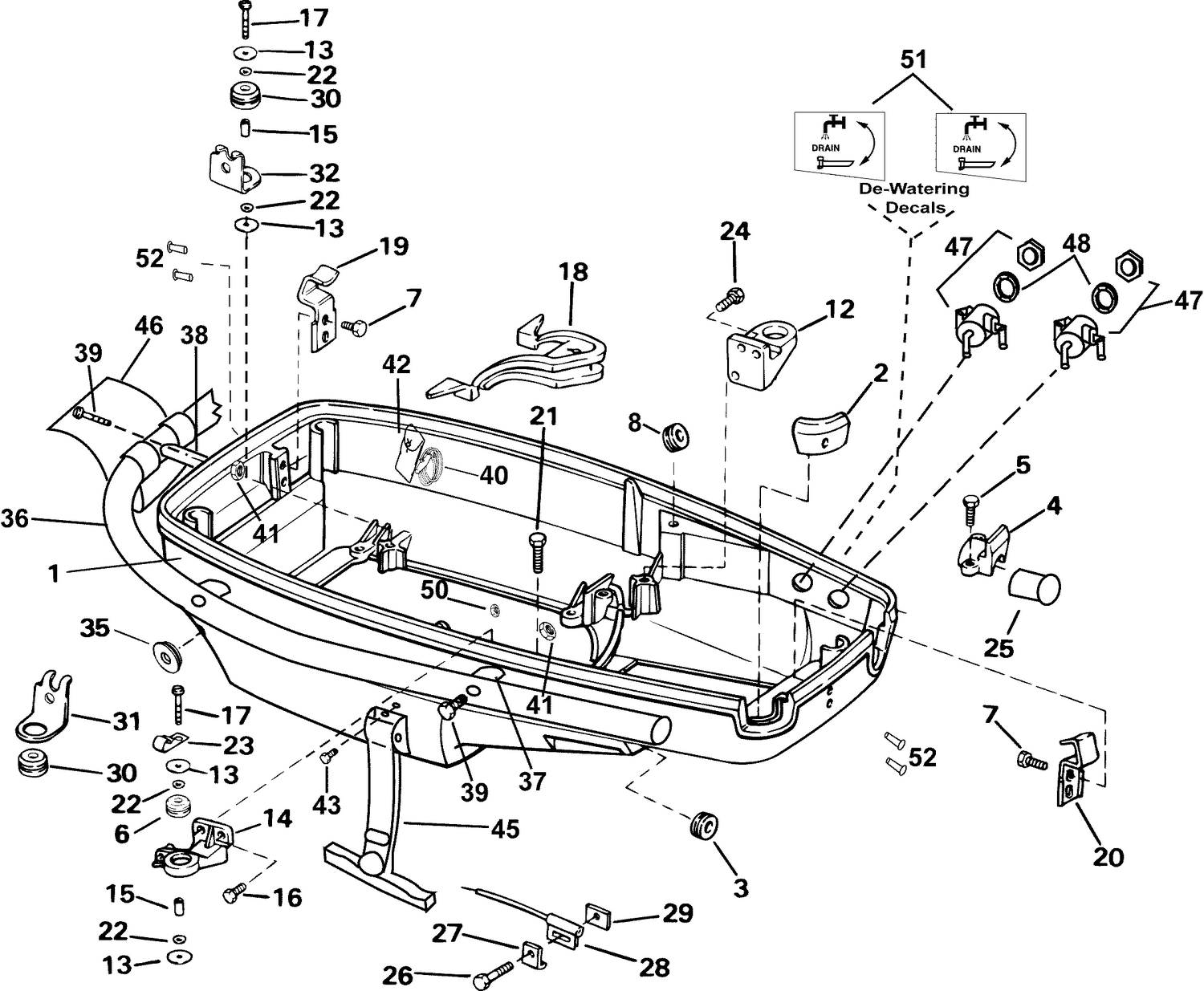

ENGINE COVER, Lower |
| 3 |
0331634 |
BAGUE, câble d'accélérateur |
| 4 |
0318286 |
CLAMP |
| 5 |
0909533 |
SCREW, Pressure relief valve cover |
| 6 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 7 |
0304027 |
VIS, arbre de commande de sens de marche |
| 12 |
0316002 |
SUPPORT, Front port |
| 14 |
0327196 |
SUPPORT, Front stbd |
| 15 |
0302406 |
SLEEVE |
| 16 |
0551793 |
SCREW |
| 17 |
0329240 |
SCREW |
| 18 |
0332169 |
SEAL, Steering arm |
| 19 |
0323474 |
HOOK, Cover to housing |
| 20 |
0323474 |
HOOK, Cover to housing |
| 23 |
0330151 |
CLAMP, Harness to oil tank boss |
| 24 |
0551793 |
SCREW |
| 25 |
0350911 |
GROMMET, Plug |
| 26 |
0328731 |
VIS, câble de verrouillage |
| 27 |
0328456 |
CLAMP |
| 28 |
0436201 |
CABLE |
| 29 |
0329590 |
SPACER, Clamp |
| 30 |
0337505 |
GROMMET, Bracket |
| 31 |
0337504 |
BRACKET, Cyl. head to lower cover, starboard |
| 32 |
0337503 |
BRACKET, Cyl. head to lower cover, port |
| 35 |
0320521 |
GROMMET |
| 36 |
0349244 |
HANDLE, Lower Cover |
| 37 |
0349733 |
SPACER, Handle - Port/Stbd |
| 38 |
0349963 |
SPACER, Handle, - Rear |
| 39 |
0335223 |
VIS, poignée vers capot bâbord/tribord |
| 40 |
0378347 |
CORDE DE LANCEUR |
| 41 |
0123603 |
LOCKNUT, Cover |
| 42 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 45 |
5004690 |
STRAP, RUBBER to covers |
| 50 |
0306542 |
NUT |
