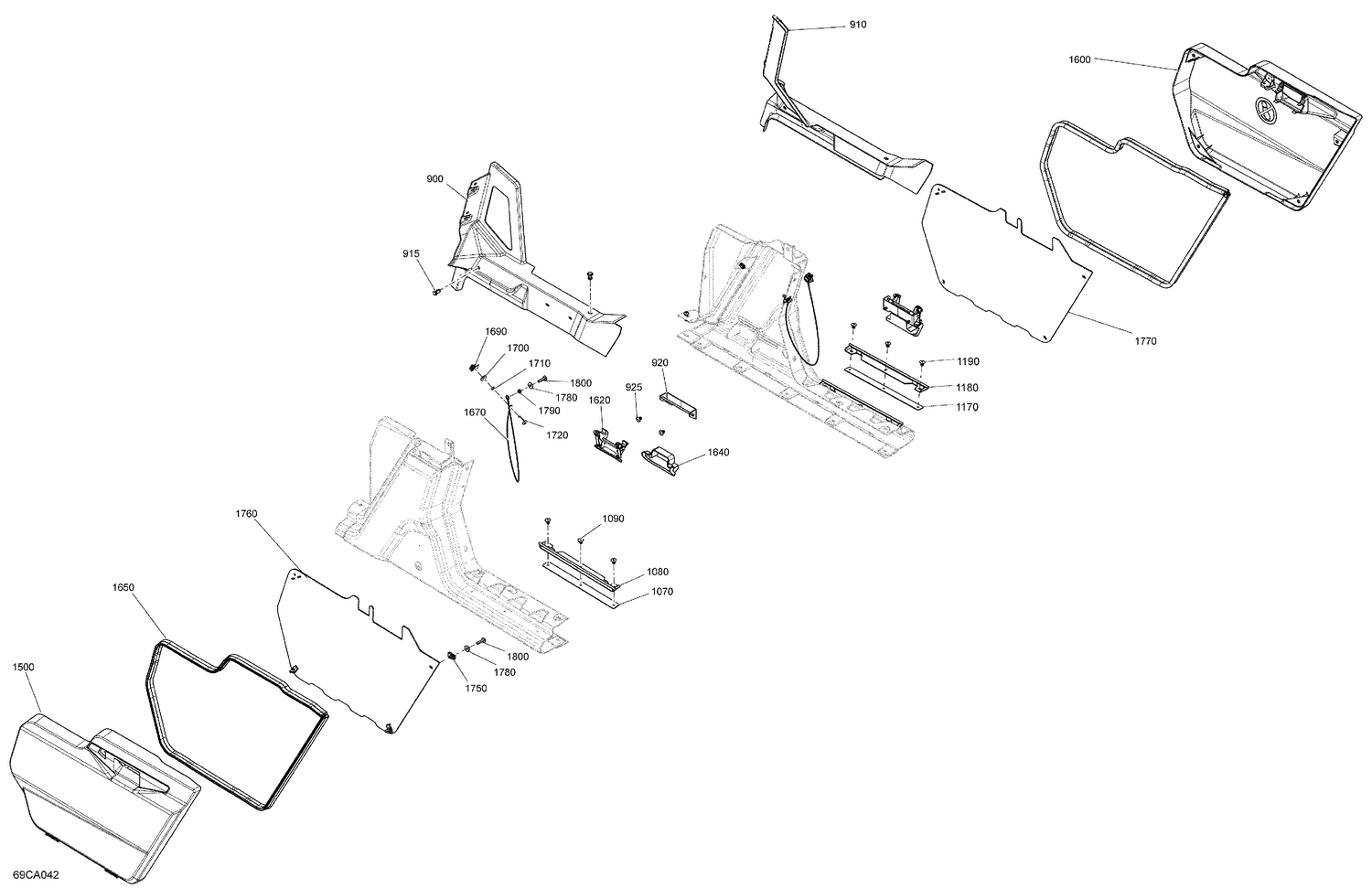

07- Body - Side Panel
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 900 | 705014160 | LH Central Body Panel |
| 910 | 705014161 | RH Central Body Panel |
| 915 | 293150230 | Tuflok Plastic Rivet |
| 920 | 705018362 | Deep Black, Pivot Support This part replaces 705014757. |
| 925 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1070 | 705014755 | Reinforcement Panel |
| 1080 | 705014759 | Support Pivot |
| 1090 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1170 | 705014755 | Reinforcement Panel |
| 1180 | 705014759 | Support Pivot |
| 1190 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1500 | 705014162 | Deep Black, LH Rear Door Panel |
| 1600 | 705014163 | Deep Black, RH Rear Door Panel |
| 1620 | 269003103 | Seat Latch |
| 1640 | 705014752 | Latch Trim |
| 1650 | 219704387 | Gasket 4100Mm Long |
| 1670 | 705014763 | Cable Retaining |
| 1690 | 250100198 | Panel Nut M6 X 1.0 |
| 1700 | 234062670 | Stainless Steel Flat Washer |
| 1710 | 708300737 | Bushing |
| 1720 | 250000807 | Torx Truss Screw M6 X 25 |
| 1750 | 250100198 | Panel Nut M6 X 1.0 |
| 1760 | 705015379 | LH Reinforcement Panel |
| 1770 | 705015380 | RH Reinforcement Panel |
| 1780 | 234062670 | Stainless Steel Flat Washer |
| 1790 | 708300737 | Bushing |
