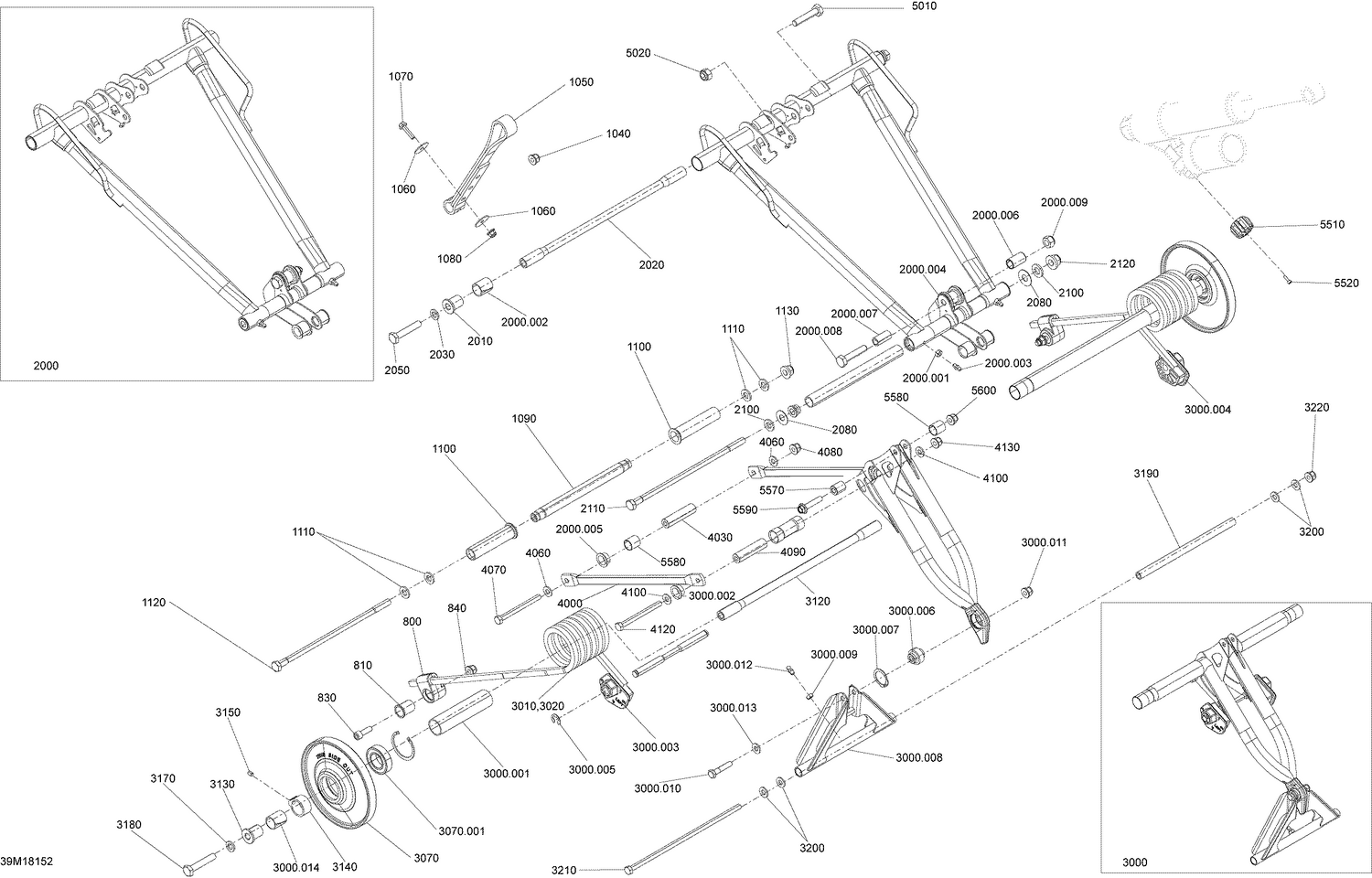

08- Rear Suspension Freeride - Package 154 NOIS - Superior
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 1040 | 233281466 | Elastic Flange Nut M8 |
| 1050 | 503194679 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1090 | 503193435 | Pivot Axle |
| 1100 | 503191259 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 2010 | 503194970 | Bushing |
| 2020 | 503193441 | Upper Shaft |
| 2030 | 503192496 | Washer |
| 2050 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2080 | 250200032 | Washer |
| 2100 | 250200143 | Flat Washer |
| 2110 | 503193227 | Bolt M10 X 251MM |
| 2120 | 233201466 | Flange Elastic Nut M10 |
| 3010 | 503193158 | Black, LH Spring Square This part replaces 503192136. |
| 3020 | 503193159 | Black, RH Spring Square This part replaces 503192137. |
| 3120 | 503193441 | Upper Shaft |
| 3130 | 503194970 | Bushing |
| 3140 | 503193439 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 503192496 | Washer |
| 3180 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503192900 | Acceleration Link Rod |
| 4030 | 503193993 | Axle |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503193993 | Axle |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5020 | 233601466 | Elastic Locking Nut M10 |
| 5510 | 503193033 | Shock Adjuster Knob |
| 5520 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 5570 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
