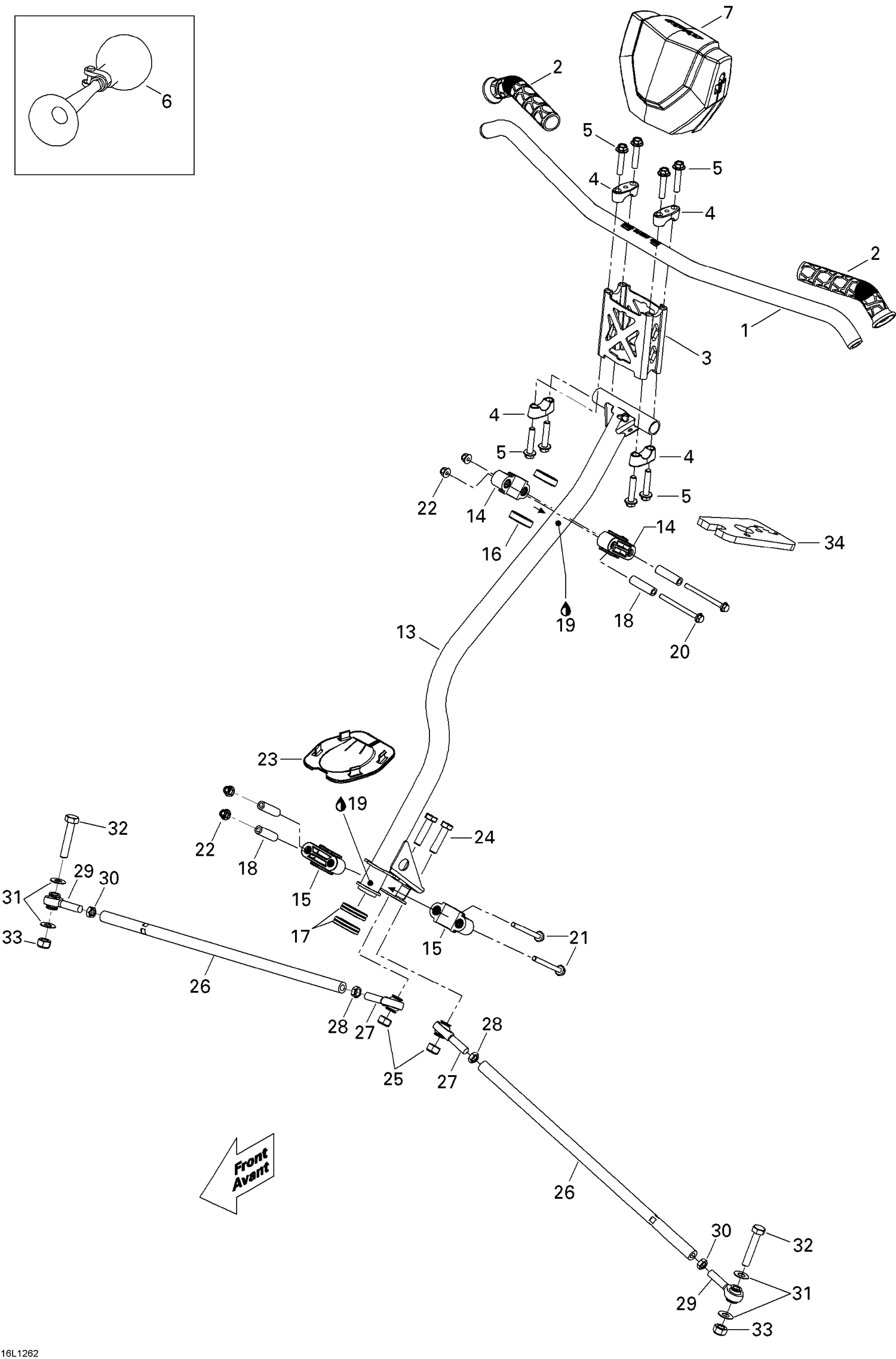

07- Steering System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152722 | Handle Bar This part replaces 506152399. |
| 2 | 506152483 | Grip |
| 4 | 506152751 | Steering Support This part replaces 506152395. |
| 5 | 250000285 | Hex. Flanged Screw M8 x 40 |
| 6 | 549011291 | Horn |
| 7 | 506152265 | Steering Pad |
| 13 | 506152964 | Main Tube This part replaces 506152469. |
| 14 | 506152508 | Upper Half-Housing |
| 15 | 506152217 | Lower Half-Housing |
| 16 | 506152509 | Upper Anti-Vibration Gasket |
| 17 | 506152518 | Lower Vibration Ring |
| 18 | 506152297 | Housing Bushing |
| 19 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 20 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 22 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 23 | 506152163 | Plate |
| 24 | 207004044 | Hex. Screw M10 X 40 |
| 25 | 232500416 | Elastic Stop Nut M10 |
| 26 | 506152496 | Tie-Rod |
| 27 | 506152081 | LH Ball Joint |
| 28 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 29 | 506152019 | RH Ball Joint |
| 30 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 31 | 506152194 | Washer |
| 32 | 207005544 | Hex. Screw M10 X 55 |
| 33 | 232500416 | Elastic Stop Nut M10 |
