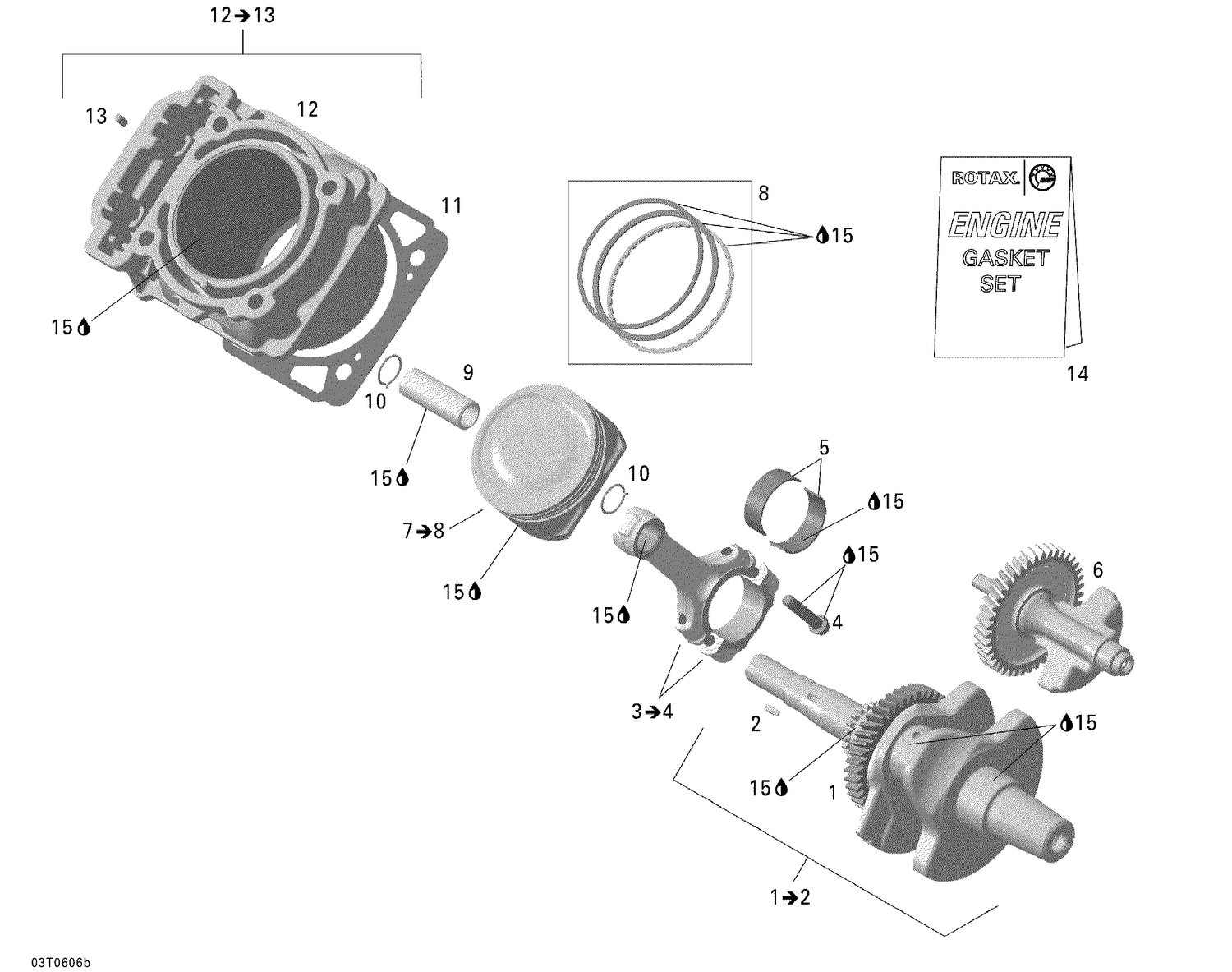

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Crankshaft |
| 2 |
420246570 |
Woodruff Key 4 X 5 |
| 4 |
420641645 |
Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 |
420233980 |
Plain Bearing 40 X 43 X 15 |
| 6 |
420620035 |
BALANCE SHAFT ASS'Y - Call your local BRP dealership |
| 8 |
420296774 |
Piston Ring Set |
| 9 |
420216270 |
Piston Pin |
| 10 |
420845106 |
Piston Circlip |
| 11 |
420630211 |
Gasket Aramid This part replaces 420630210. |
| 12 |
Not |
Available As Spare Part - Cylinder With Sleeve |
| 13 |
420929650 |
Drive Pin 5 X 10 |
| 14 |
420684125 |
GASKET SET - Call your local BRP dealership |
