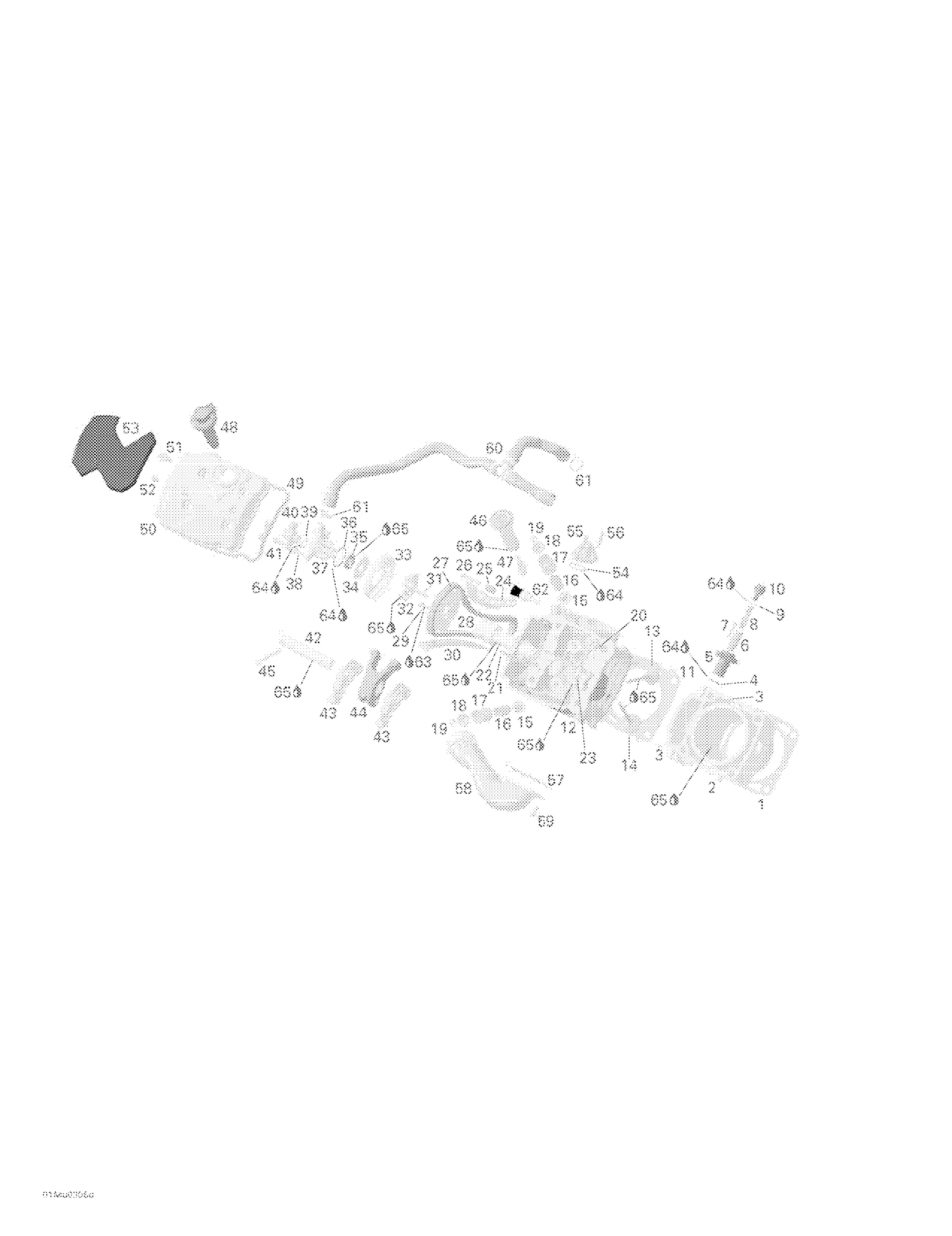

| Ref | Part Number | Description |
|---|
| 1 |
420630080 |
GASKET - Call your local BRP dealership |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 4 |
420430373 |
O-Ring This part replaces 420430370. |
| 5 |
420236510 |
Chain Tensioner Housing |
| 6 |
420236521 |
Chain Tensioner Plunger This part replaces 420236520. |
| 7 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 8 |
420238120 |
Spring |
| 9 |
420250890 |
O-Ring |
| 10 |
420641150 |
Plug Screw |
| 11 |
420950660 |
CYLINDER HEAD GASKET - Call your local BRP dealership |
| 12 |
420613475 |
CYLINDER HEAD ASS?Y - Call your local BRP dealership |
| 13 |
420254027 |
Exhaust Valve 31 mm |
| 14 |
420253163 |
Intake Valve 38MM This part replaces 420254290. |
| 15 |
420630202 |
Valve Steam Seal This part replaces 420630200. |
| 16 |
420838280 |
Valve Spring Inside |
| 17 |
420238180 |
Valve Spring |
| 18 |
420254283 |
Valve Spring Retainer This part replaces 420254280. |
| 19 |
420253645 |
Valve Cotter |
| 20 |
420641020 |
TORX SCREW M11 X 215 - Call your local BRP dealership |
| 21 |
420440612 |
Torx Flange Screw M6 X 105 |
| 22 |
420837575 |
CAMSHAFT FRONT - Call your local BRP dealership |
| 23 |
420851694 |
Camshaft Guide This part replaces 420851692. |
| 24 |
420236541 |
Chain Tension Guide This part replaces 420236540. |
| 25 |
420247100 |
DISTANCE SLEEVE - Call your local BRP dealership |
| 26 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 27 |
420297957 |
Camshaft Chain |
| 28 |
420254309 |
Timing Gear, 38 Teeth This part replaces 420254301. |
| 29 |
420840032 |
Allen Screw M6 X 12 This part replaces 420841339. |
| 30 |
420236501 |
Chain Guide This part replaces 420236500. |
| 31 |
420220790 |
Deko Shaft |
| 32 |
420231064 |
Centrifugal Weight Ass’Y |
| 33 |
420660032 |
Cover |
| 34 |
420627492 |
Thrust Washer |
| 35 |
420630125 |
V-Ring 20S FPM Blow By Valve |
| 36 |
420950870 |
O-Ring |
| 37 |
420610272 |
CAMSHAFT COVER - Call your local BRP dealership |
| 38 |
420440162 |
Torx Flange Screw M6 X 16 |
| 39 |
420430220 |
O-Ring |
| 40 |
420660275 |
Connecting Cover |
| 41 |
420440162 |
Torx Flange Screw M6 X 16 |
| 42 |
420854599 |
ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership |
| 43 |
420254329 |
Rocker Arm, Exhaust This part replaces 420254326. |
| 44 |
420254316 |
Rocker Arm, Inner This part replaces 420254315. |
| 45 |
420641080 |
Torx Screw M8 X 72 |
| 46 |
420851754 |
Spark Plug Pipe This part replaces 420851750. |
| 47 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 48 |
296000307 |
Ignition Coil Kit This part replaces 420664020. |
| 49 |
420630071 |
Sealing Ring This part replaces 420630070. |
| 50 |
420610185 |
Valve Cover |
| 51 |
420440568 |
Hex Screw M6 X 30 This part replaces 420440307. |
| 52 |
420641488 |
TORX SCREW M6 X 8 - Call your local BRP dealership This part replaces 420641483. |
| 53 |
420660201 |
Valve Cover |
| 54 |
420950890 |
O-Ring |
| 55 |
420811700 |
Connecting Cover |
| 56 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 57 |
420950680 |
GASKET - Call your local BRP dealership |
| 58 |
420973780 |
Exhaust Manifold Ass’Y |
| 59 |
420440162 |
Torx Flange Screw M6 X 16 |
| 60 |
420660710 |
Molded Hose Ass’y |
| 61 |
420853153 |
CLAMP - Call your local BRP dealership |
| 62 |
278002895 |
Temperature Sensor This part replaces 420222425. |
| 63 |
293800060 |
Loctite 243, 10 ml |
| 64 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
