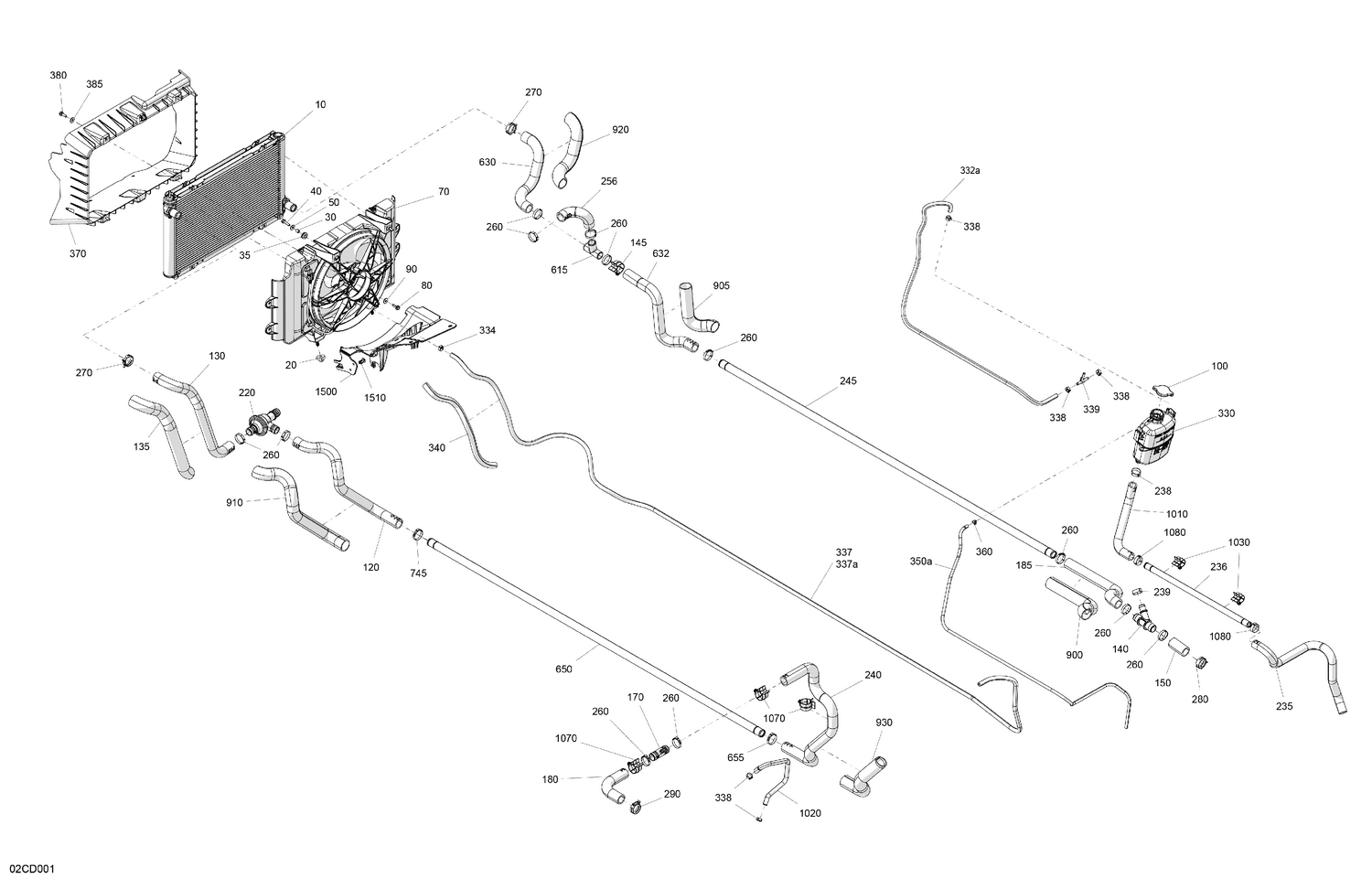

02- Engine - Cooling
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200951 | Radiator |
| 20 | 709200948 | Grommet |
| 30 | 293900105 | Bushing |
| 35 | 293720130 | Overmolded Grommet |
| 40 | 207662544 | Hex. Flange Screw M6 X 25 |
| 50 | 234062410 | Flat Washer 6 mm |
| 70 | 709200534 | Fan Ass'y |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 120 | 709201028 | Hose |
| 130 | 709201443 | Formed Radiator Hose IN This part replaces 709201032. |
| 135 | 219704428 | Tubing 35 MM 1000MM Long |
| 140 | 509001200 | Y Fitting |
| 145 | 275500590 | Retainer |
| 150 | 709200299 | Hose |
| 170 | 509000510 | T-Fitting |
| 180 | 709201006 | Hose Engine In |
| 185 | 709200971 | Hose |
| 220 | 709200986 | Thermostat Housing |
| 235 | 709201034 | Formed Coolant Tank Hose Out |
| 236 | 709200834 | Expansion Tank Tube |
| 238 | 293650165 | Oetiker Gear Clamp |
| 239 | 293650165 | Oetiker Gear Clamp |
| 240 | 709201035 | Thermostat Inlet Hose |
| 245 | 709200658 | Heater Tubing |
| 256 | 709201439 | Formed Thermostat Hose OUT This part replaces 709201033. |
| 260 | 509000162 | Gear Clamp |
| 270 | 293650166 | Norma Spring Clamp |
| 280 | 293650166 | Norma Spring Clamp |
| 290 | 293650166 | Norma Spring Clamp |
| 330 | 709201323 | Coolant Tank |
| 332a | 219704362 | Was 276000394 Hose 6.4 mm |
| 334 | 293650042 | Oetiker Clamp |
| 337a | 219704362 | Was 276000394 Hose 6.4 mm |
| 338 | 293650047 | Crimp Clamp, 15.3-706R |
| 339 | 293710059 | Y-Fitting |
| 340 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 350a | 219704389 | Polyurethane Hose 4000MM Long |
| 360 | 414554800 | Spring Clamp |
| 370 | 715008385 | Radiator Deflector Kit |
| 380 | 207662044 | Hex. Flange Screw M6 X 20 |
| 385 | 234062410 | Flat Washer 6 mm |
| 615 | 509001313 | T-Fitting |
| 630 | 709201440 | Formed Radiator Hose OUT This part replaces 709201030. |
| 632 | 709201442 | Formed Radiator Hose OUT This part replaces 709201029. |
| 650 | 709200658 | Heater Tubing |
| 655 | 509000162 | Gear Clamp |
| 745 | 509000162 | Gear Clamp |
| 900 | 219704428 | Tubing 35 MM 1000MM Long |
| 905 | 219704428 | Tubing 35 MM 1000MM Long |
| 910 | 219704428 | Tubing 35 MM 1000MM Long |
| 920 | 219704428 | Tubing 35 MM 1000MM Long |
| 930 | 219704428 | Tubing 35 MM 1000MM Long |
| 1010 | 709200836 | Hose Coolant Tank Out Formed |
| 1020 | 709200840 | Bleeding Hose |
| 1030 | 275500527 | Cable Retainer |
| 1070 | 275500590 | Retainer |
| 1080 | 293650165 | Oetiker Gear Clamp |
| 1500 | 709201036 | Front Air Deflector |
