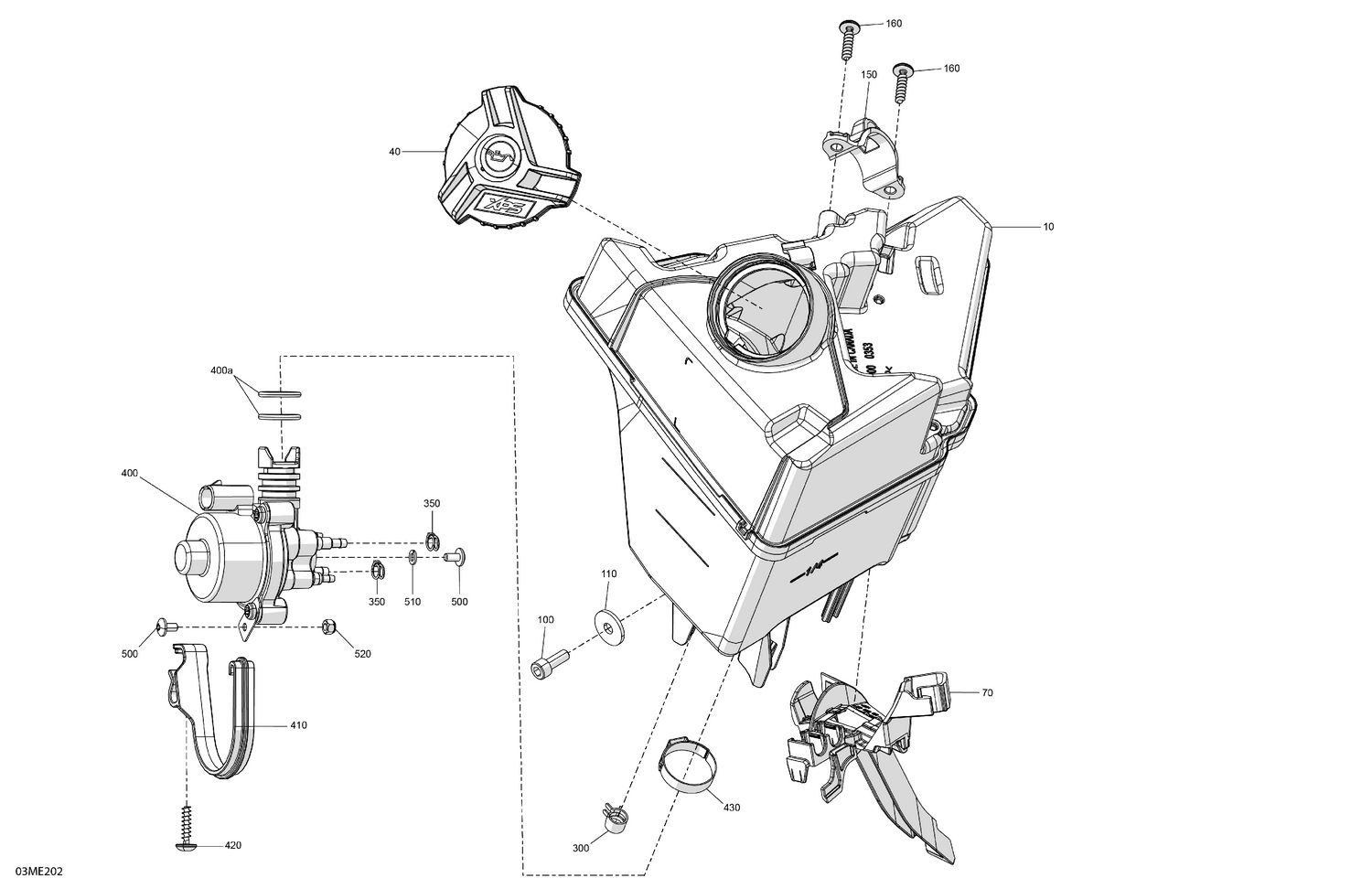

02- Engine - Oil
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000353 | Oil Tank |
| 40 | 519000373 | Oil Tank Cap Ass'y |
| 70 | 519000362 | Hose Guard |
| 100 | 205561644 | Socket Screw M6 X 16, Scotch Grip |
| 110 | 224061201 | Flat Washer |
| 150 | 519000320 | Clamp |
| 160 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 300 | 414420700 | Spring Clamp |
| 350 | 293650252 | Hose Clamp |
| 400a | 415130335 | O-Ring |
| 410 | 519000318 | Bracket |
| 420 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 430 | 293650099 | Crimp Clamp |
| 500 | 250000741 | Screw-Torx Button Head M4 X 8 |
| 510 | 234141601 | Lock Washer 4 mm |
