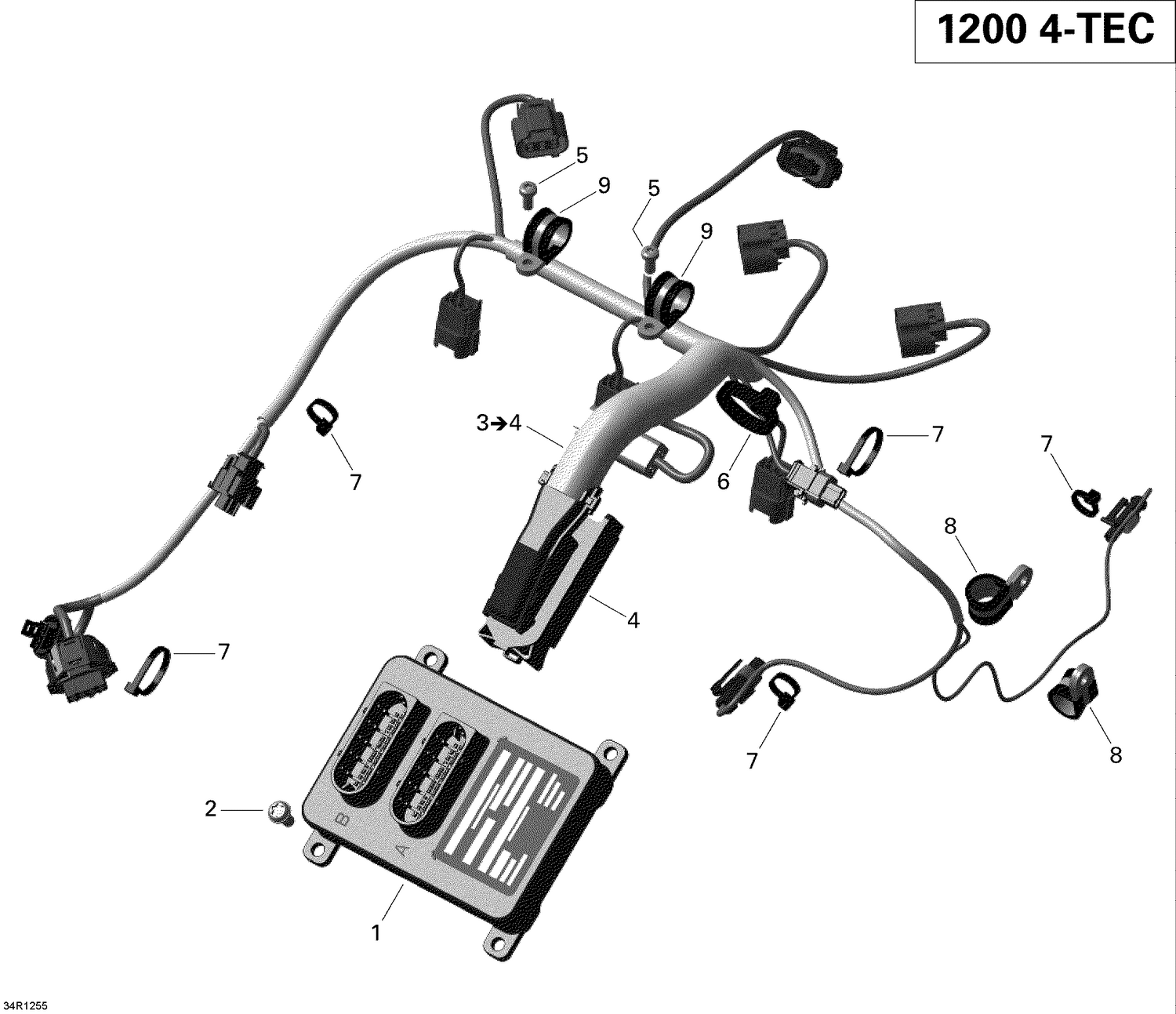

10- Engine Harness And Electronic Module
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666128 | ECM, Engine Control Module |
| 2 | 420641588 | Torx PT Screw M6 x 16 This part replaces 420641583. |
| 4 | 420664450 | ECM Connector |
| 5 | 420640086 | Torx Screw M5 x 12 This part replaces 420640081. |
| 6 | 420866716 | Tie-Rap |
| 7 | 420866717 | CLAMP - Call your local BRP dealership |
| 8 | 420851492 | Cable Clamp 15/M6 |
