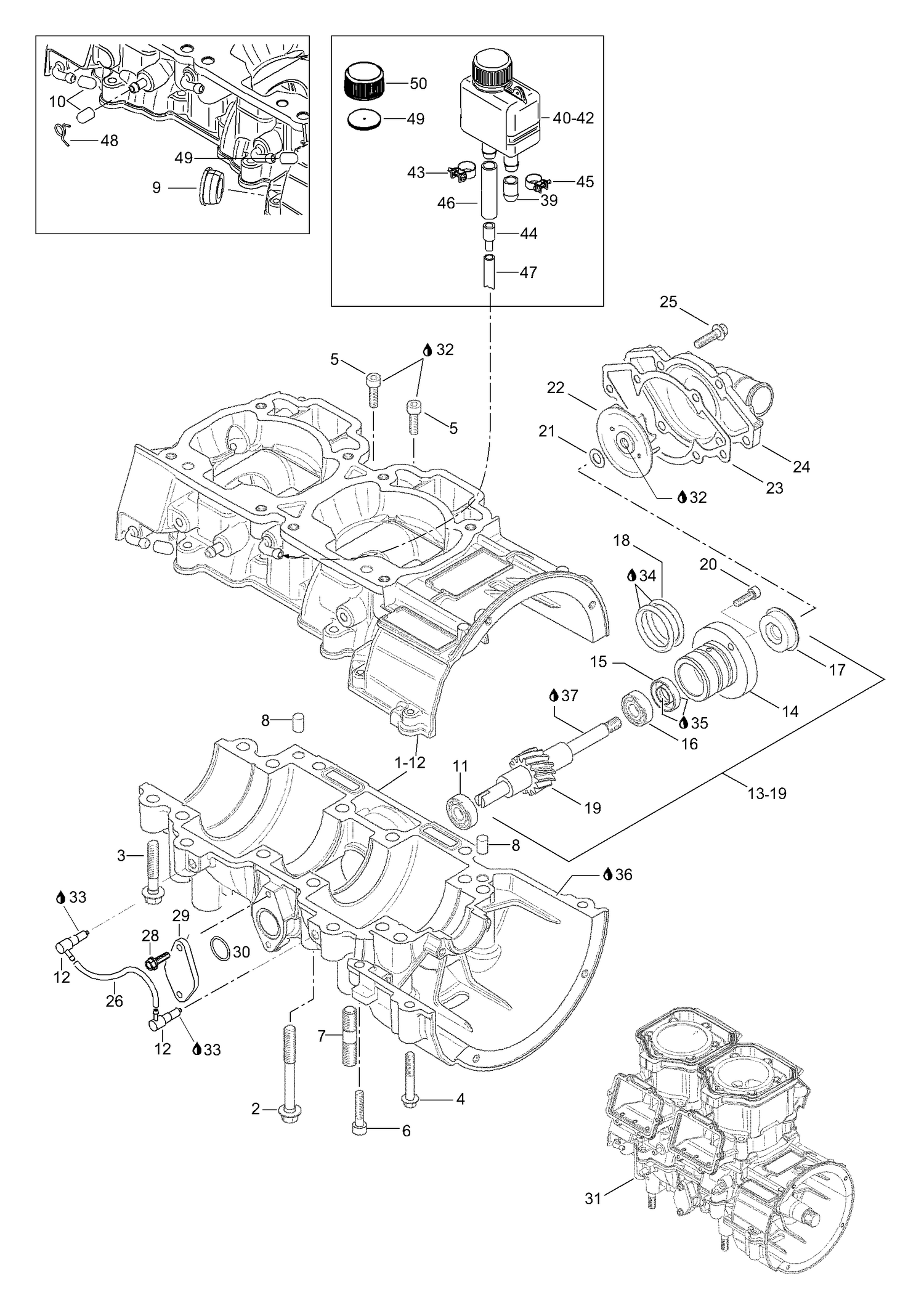

05- Crankcase — Parts Catalog

Parts (43)

Ref	Part Number	Description
2	420640836	Screw M8x75
3	420640433	Collar Hex Screw M8 X 45 This part replaces 420640431.
4	420640312	Hex. Collar Screw M6 X 45 This part replaces 420640311.
5	420840403	Socket Head Screw M6 X 22 This part replaces 420840401.
6	205063044	Allen screw M6x30 This part replaces 420840880.
7	420641834	STUD M10 X 29 - Call your local BRP dealership
8	420632010	Center Pin 8 X 12
9	420860965	Cable grommet
10	420960770	Closure cap
11	420232100	Ball Bearing
12	420956511	Check Valve This part replaces 420956510.
15	420230195	Oil seal
16	420232100	Ball Bearing
17	420650371	Rotary Seal This part replaces 420650370.
18	420950890	O-Ring
20	420840514	Allen Screw M5 x 16 This part replaces 420840511.
21	420227945	Thrust washer
22	420222505	Impeller
23	420931811	Gasket This part replaces 420931810.
24	420922630	Pump housing
25	420240034	Hex. Screw M6 x 25 This part replaces 420240031.
26	420956239	OIL TUBE - Call your local BRP dealership This part replaces 420956237.
27	20008	Washer
28	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
29	548957	Cover plate
30	293300041	O-Ring This part replaces 420230400.
31	300079306	Short block engine
32	293800060	Loctite 243, 10ml
33	219703000	Sealant Loctite 648 This part replaces 413711400.
34	413707000	Molykote 111
35	420899271	Klueber petamo, 250gr.
36	420297907	Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
37	320007)	Transmission oil
39	420960279	Cap
41	420850350	Gasket
42	420956250	Oil Tank Cap
43	420951260	CLAMP - Call your local BRP dealership
44	420874370	Reduction fitting
45	420951241	CLAMP - Call your local BRP dealership This part replaces 420951240.
46	420956239	OIL TUBE - Call your local BRP dealership This part replaces 420956237.
47	420974535	Hose
48	420938190	CLAMP - Call your local BRP dealership
49	420960777	CAP - Call your local BRP dealership
