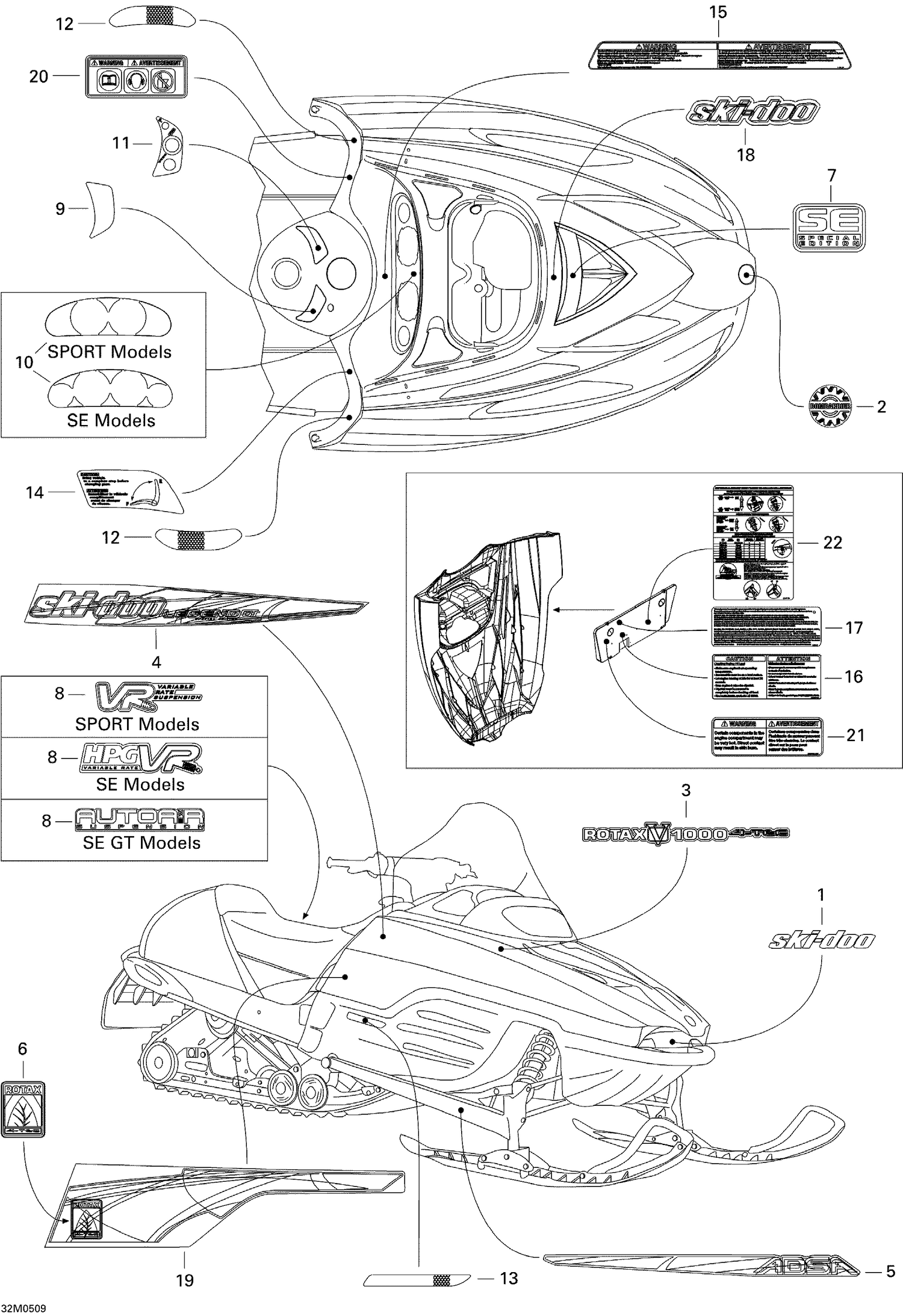

09- Decals
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516000338 | DECAL - «SKI-DOO» - Call your local BRP dealership |
| 2 | 516008738 | BRP Logo 48mm This part replaces 516002487. |
| 3 | 516002286 | Rotax V1000 Decal |
| 5 | 516002289 | RH Arm Decal |
| 5 | 516002290 | LH Arm Decal |
| 6 | 516002164 | Décalque 4-TEC, noir |
| 9 | 516001428 | Decal |
| 11 | 516001480 | Dess Decal |
| 12 | 516000224 | Decal - Reflector Decal |
| 13 | 415064400 | Decal - RH Reflector |
| 13 | 415064401 | Decal - LH Reflector |
| 14 | 516000458 | Decal - Reverse |
| 15 | 516002074 | Security Label, Starter Zx |
| 16 | 516005521 | Caution Decal, Oil Level This part replaces 516001791. |
| 17 | 516002657 | Pending Label |
| 18 | 516002291 | Ski-doo Front Decal |
| 19 | 516002292 | RH Lower Rear Decal |
| 19 | 516002293 | LH Lower Rear Decal |
| 21 | 516001297 | Security Label, Hot Parts |
