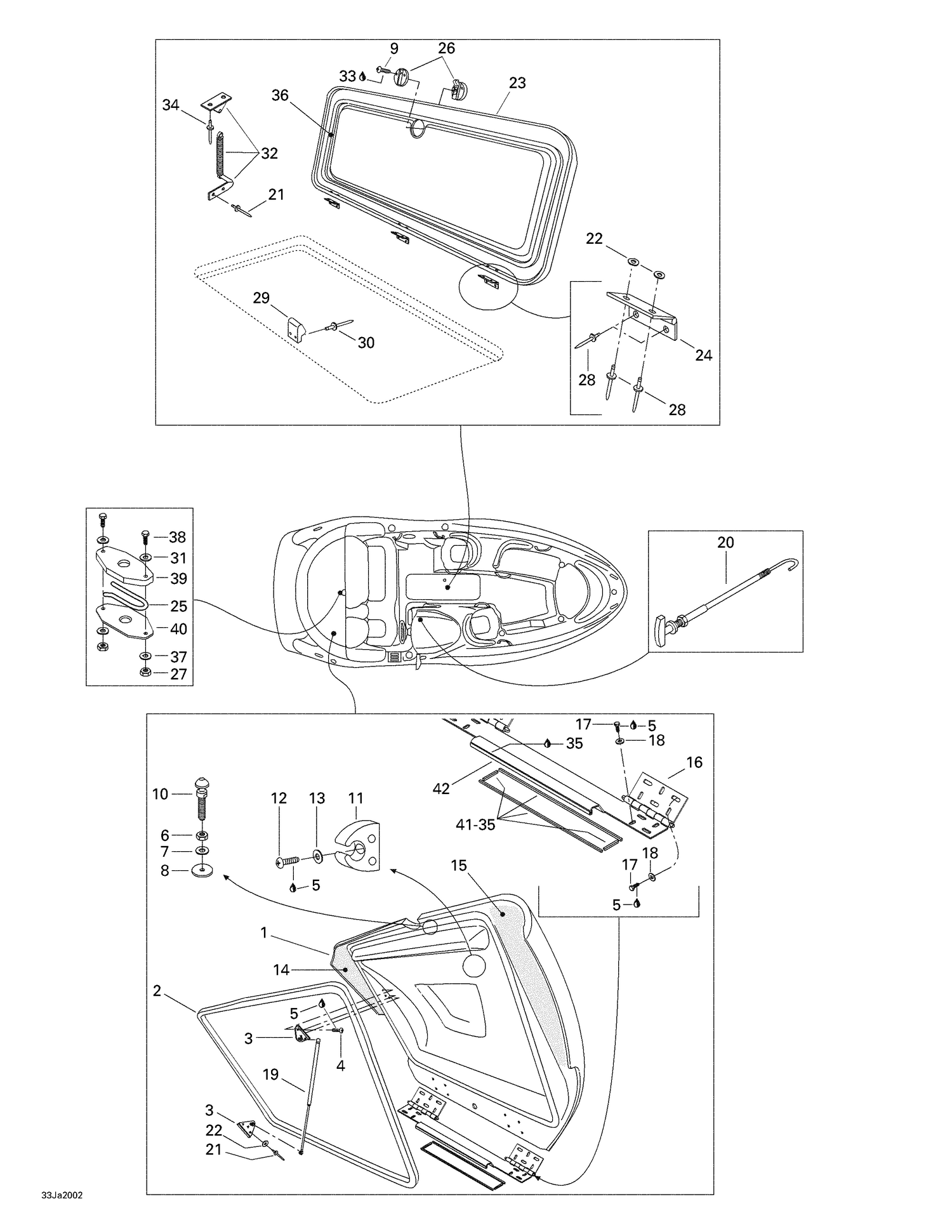

09- Body And Accessories 1
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204070596 | Engine Cover |
| 2 | 219704365 | Was 293200017 Neoprene Seal |
| 3 | 204070065 | SHOCK BRACKET - Call your local BRP dealership |
| 4 | 207151660 | HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 5 | 293800060 | Loctite 243, 10 ml |
| 6 | 232100600 | Hex. Jam Nut M10 |
| 7 | 234002600 | Flat Washer 10 mm, Stainless |
| 8 | 291000628 | RUBBER WASHER - Call your local BRP dealership |
| 9 | 208651660 | SCREW M5 X 16 - Call your local BRP dealership |
| 10 | 204700001 | Latch Stud |
| 11 | 291000642 | Pole Support |
| 12 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 13 | 234040600 | Flat Washer 4 mm |
| 14 | 204070865 | RH Engine Cover Foam |
| 15 | 204070866 | LH Engine Cover Foam |
| 16 | 204070708 | Plate Ass’y |
| 17 | 207162560 | Hex. Screw M6 X 25 |
| 18 | 234061600 | Stainless Flat Washer M6 |
| 19 | 204070178 | RH Retainer Cylinder |
| 20 | 204070081 | LATCH COVER CABLE - Call your local BRP dealership |
| 21 | 293150043 | Pop Rivet 3/16" |
| 22 | 234051600 | Flat Washer M5, Stainless |
| 23 | 204070718 | Center Cover |
| 24 | 204072601 | HINGE - Call your local BRP dealership This part replaces 291000538. |
| 25 | 204070038 | SPRING - Call your local BRP dealership |
| 26 | 204070063 | VERROU, WHITE - Call your local BRP dealership |
| 27 | 232561600 | Hex. Elastic Stop Nut M6 |
| 28 | 293150037 | Avdel Rivet 3/16" |
| 29 | 204070050 | LATCH BRACKET - Call your local BRP dealership |
| 30 | 293150029 | RIVET_POP 5/32 - Call your local BRP dealership |
| 31 | 234062600 | Flat Washer M6, Stainless |
| 32 | 204000071 | SPRING SEAT - Call your local BRP dealership |
| 33 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 34 | 204000081 | Pop Rivet 3/16" |
| 36 | 293200032 | TRAY SEAL, METER - Call your local BRP dealership |
| 37 | 234061600 | Stainless Flat Washer M6 |
| 38 | 207163560 | Hex. Screw M6 X 35 |
| 39 | 204070037 | LATCH BASE - Call your local BRP dealership |
| 40 | 204070036 | LATCH COVER - Call your local BRP dealership |
| 41 | 293200066 | Trim Lock Seal |
