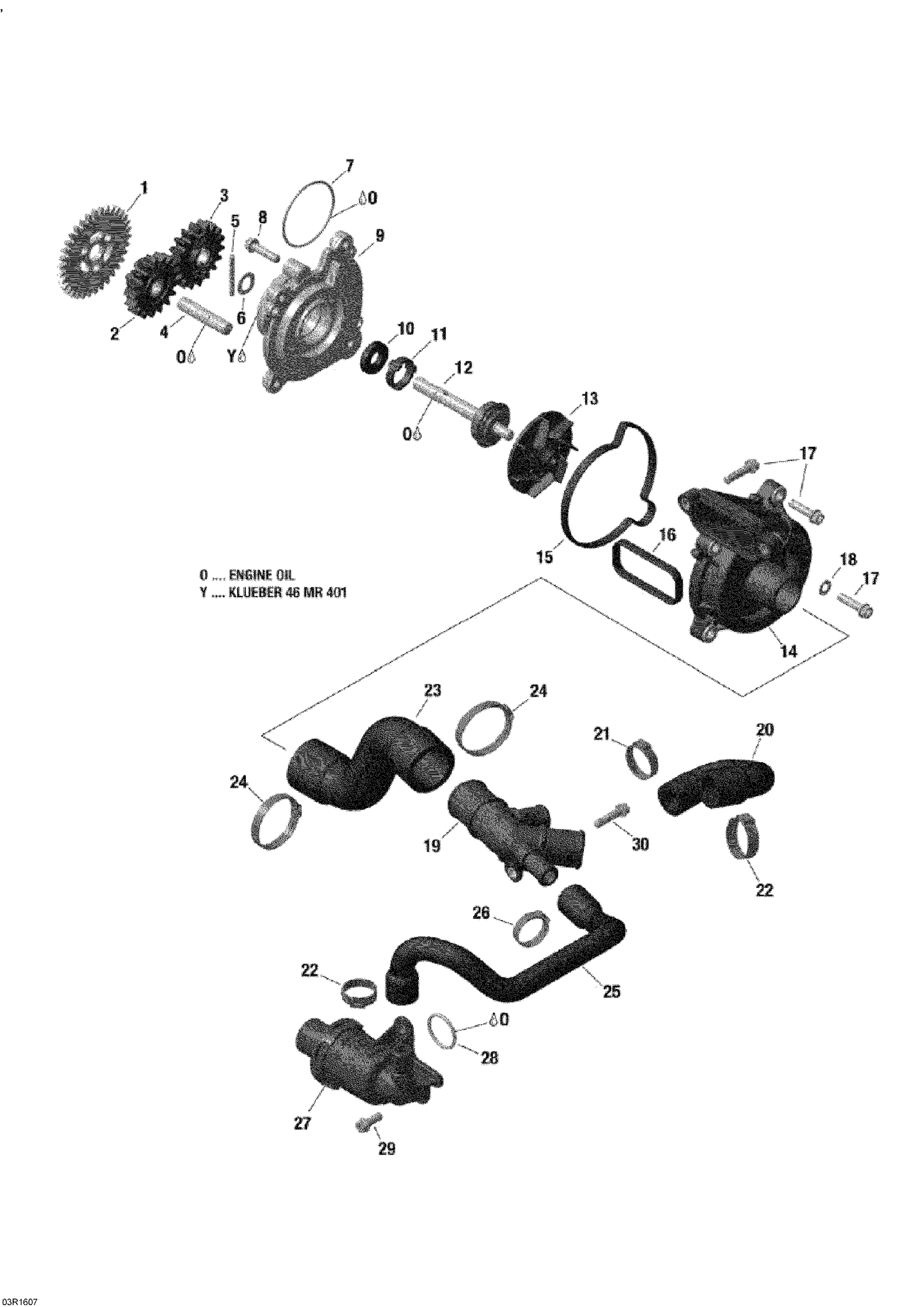

01- Engine Cooling - 1200 4-TEC
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| O | Not | Available As Spare Part - Engine Oil |
| 1 | 420835065 | Intermediate Gear (34 T) |
| 2 | 420835062 | Intermediate Gear (17 T) |
| 3 | 420835070 | Water Pump Gear (18 T) |
| 4 | 420229302 | Location Pin |
| 5 | 420832660 | Needle Pin |
| 6 | 420827590 | Thrust Washer |
| 9 | 420910230 | Step Collar |
| 11 | 420947430 | Spacer Ring |
| 12 | 420837921 | Water Pump Shaft |
| 19 | 420922141 | Hose Joining Nipple |
| 20 | 420922091 | MOLDED HOSE - Call your local BRP dealership |
| 21 | 420851673 | Gear Clamp |
| 22 | 509000442 | Gear Clamp |
| 23 | 420460461 | Form Hose |
| 24 | 420951293 | Gear Clamp |
| 25 | 420922132 | Form Hose |
| 26 | 509000442 | Gear Clamp |
