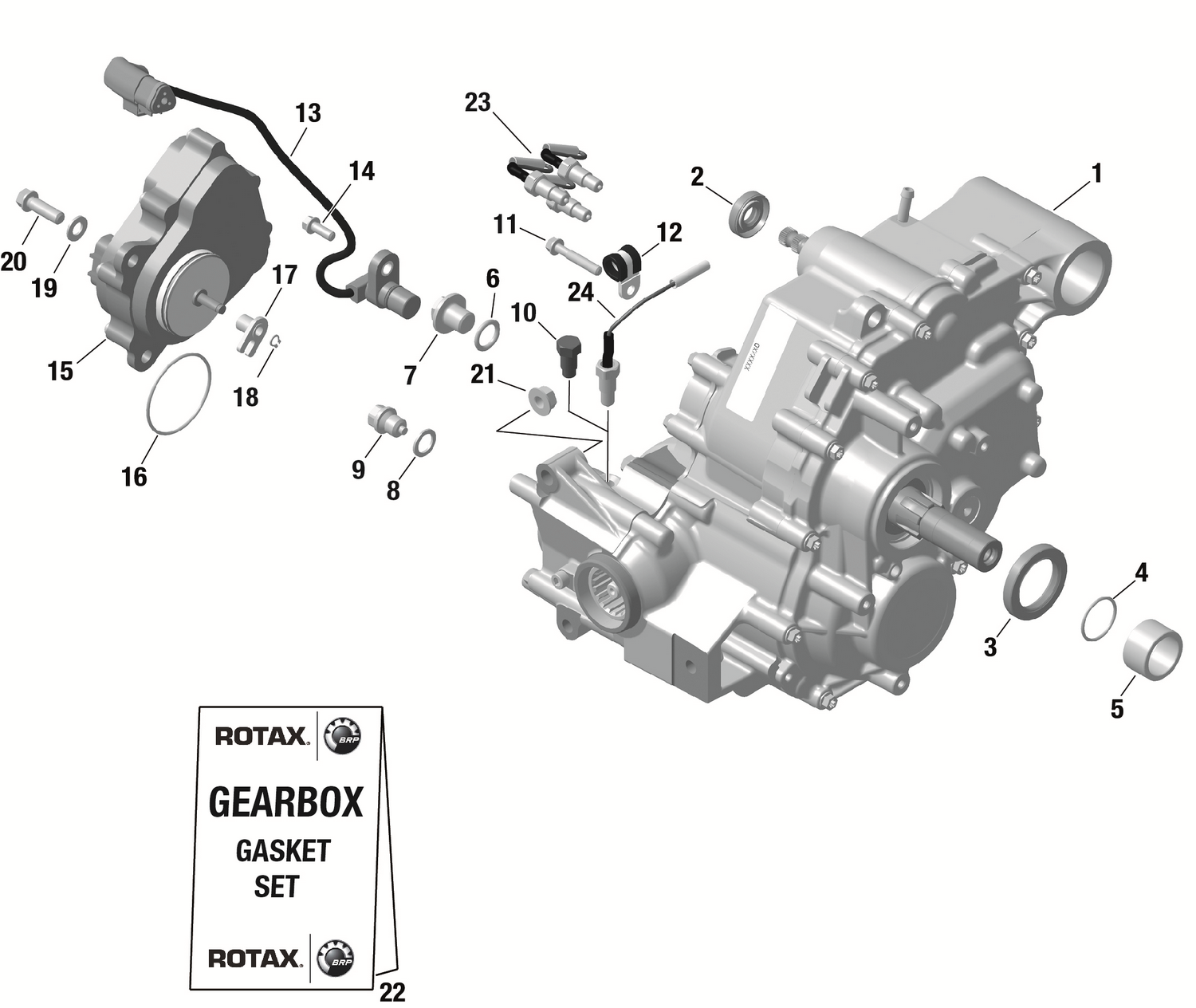

| Ref | Part Number | Description |
|---|
| 2 |
XXX |
Not Available As Spare Parts |
| 3 |
XXX |
Not Available As Spare Parts |
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
420650350 |
O-Ring |
| 7 |
420241662 |
Plug Screw M14 X 1.5 This part replaces 420241660. |
| 8 |
420250640 |
Copper Washer |
| 9 |
420241787 |
Magnetic Drain Plug M12 |
| 10 |
420241905 |
Plug Screw M10X10 |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
420251692 |
Cable Clamp |
| 13 |
420265727 |
Camshft Position Sensor Ass'y This part replaces 420265722. |
| 14 |
420440162 |
Torx Flange Screw M6 X 16 |
| 15 |
715900613 |
Actuator Ass'y 4 pins This part replaces 420891088. |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
420250315 |
Flat Washer 8.4 mm |
| 20 |
420440372 |
Torx Flange Screw M8 X 25 |
| 21 |
420842611 |
Hexagonal Nut M8 |
| 22 |
420684134 |
Gasket Set, Gearbox |
| 23 |
420640192 |
Contact Screw M10 Ass'y With Cable |
