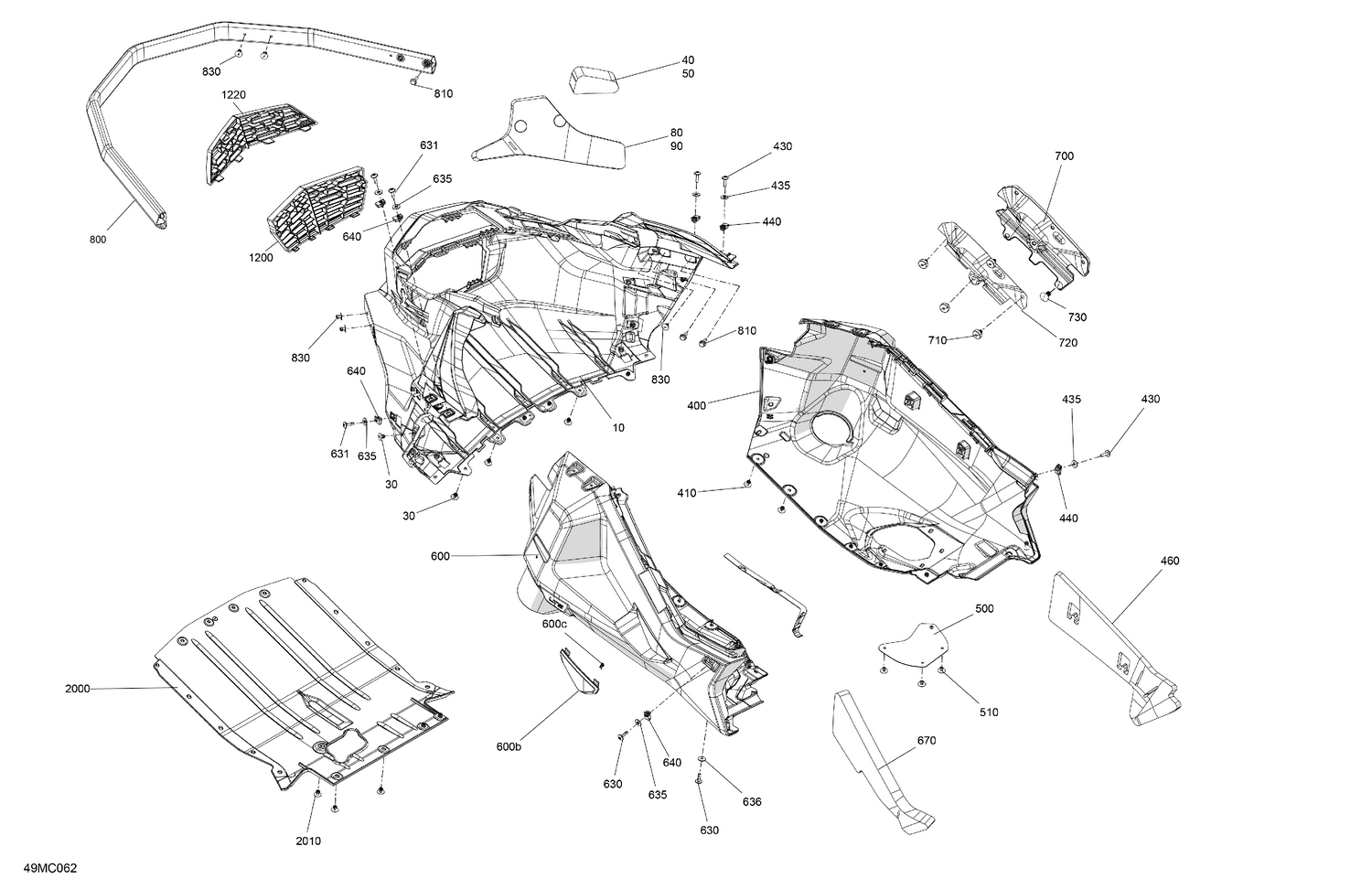

07- Body - Bottom Pan
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007725 | Deep Black, Front Bottom Pan |
| 30 | 293150104 | Pop Rivet 3/16" |
| 40 | 502007937 | RH Upper Front Bottom Pan Foam |
| 50 | 502007938 | LH Upper Front Bottom Pan Foam |
| 80 | 502007941 | RH Front Lower Bottom Pan Foam |
| 90 | 502007942 | LH Front Lower Bottom Pan Foam |
| 400 | 502007726 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16" |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 435 | 517307442 | Washer |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 460 | 502007944 | RH Rear Bottom Pan Foam |
| 500 | 502007868 | Plate |
| 510 | 293150103 | Pop Rivet 3/16" |
| 600b | 502007676 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 517307442 | Washer |
| 636 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 670 | 502007946 | LH Rear Bottom Pan Foam |
| 700 | 502008087 | Heat Shield |
| 710 | 502008149 | Stopper |
| 720 | 502008156 | Reflective Sheet |
| 730 | 293730010 | Black Dart |
| 800 | 502008079 | Front Bumper |
| 810 | 207661644 | Hex. Flange Screw M6 X 16 |
| 830 | 293150104 | Pop Rivet 3/16" |
| 1200 | 502007979 | Lower Prefilter Grille This part replaces 502008548. |
| 1220 | 502007980 | Upper Prefilter Grille This part replaces 502008549. |
| 2000 | 502007906 | Under Skid Plate |
