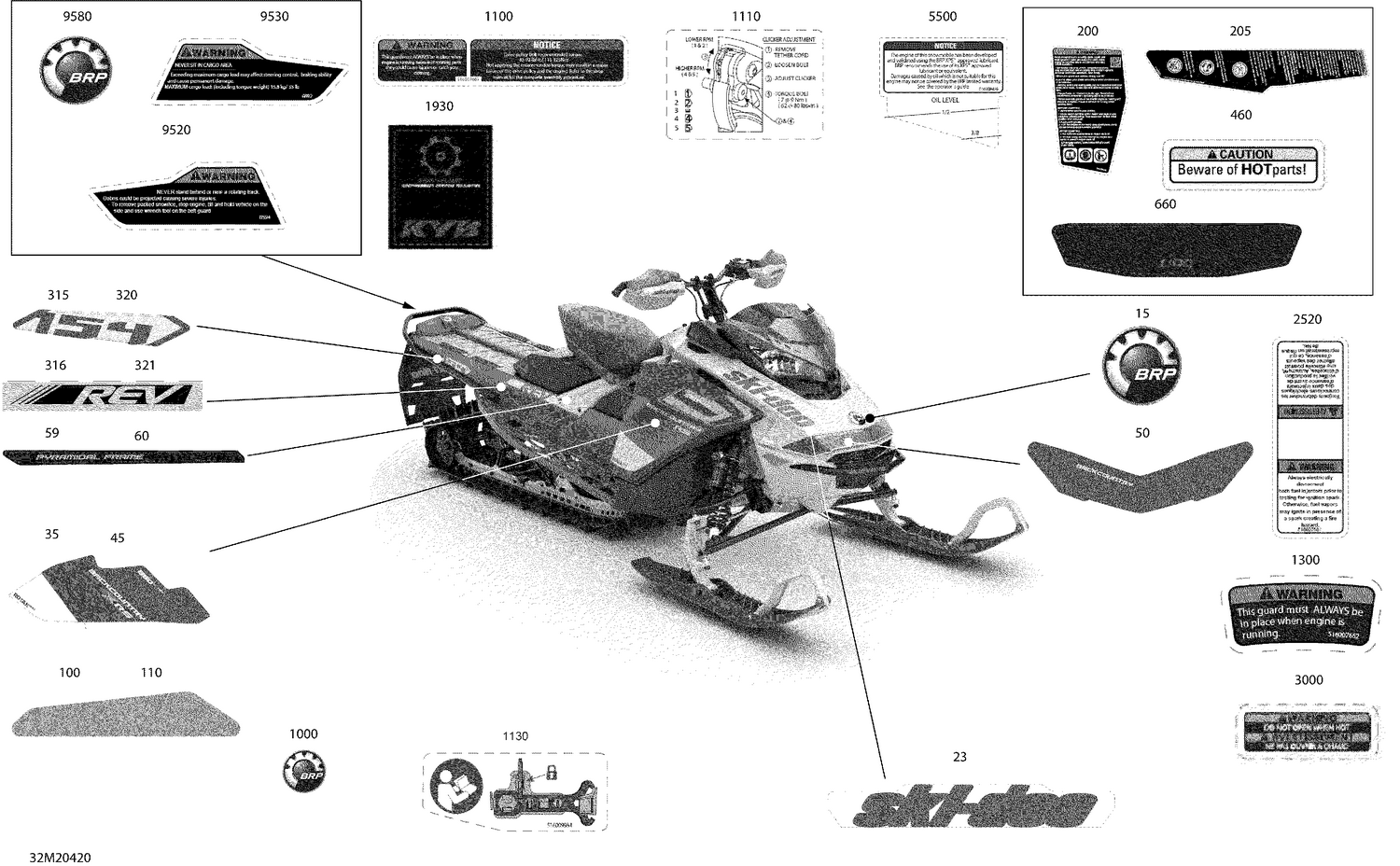

09- Body - Decals - XRS - 154
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 23 | 516009634 | Front Hood Decal "Ski-Doo" |
| 35 | 516009367 | RH Panel Decal "Backcountry XRS 850" |
| 45 | 516009366 | LH Upper Panel Decal "Backcountry XRS" |
| 50 | 516009361 | Front Hood Decal "Backcountry" |
| 59 | 516009360 | RH Side Member "Pyramidal Frame" |
| 60 | 516009359 | LH Side Member "Pyramidal Frame" |
| 100 | 516008948 | Hyper Silver, RH Ski Leg Decal |
| 110 | 516008947 | Hyper Silver, LH Ski Leg Decal |
| 200 | 516009232 | LH Warning Decal Security |
| 205 | 516009520 | RH Warning Decal Security |
| 315 | 516009890 | RH Rear Tunnel Decal " 154 " |
| 316 | 516009629 | RH Rear Tunnel Decal " REV" |
| 320 | 516009889 | LH Rear Tunnel Decal " 154 " |
| 321 | 516009628 | LH Rear Tunnel Decal " REV " |
| 460 | 516005280 | Caution Decal Hot Parts |
| 660 | 516009856 | Standard Decal "Linq" |
| 1000 | 516006224 | BRP Logo 20MM x 2MM |
| 1100 | 516007667 | Warning Decal |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1930 | 516005534 | Shock Adjustment Decal |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516006892 | RH English Warning Decal |
