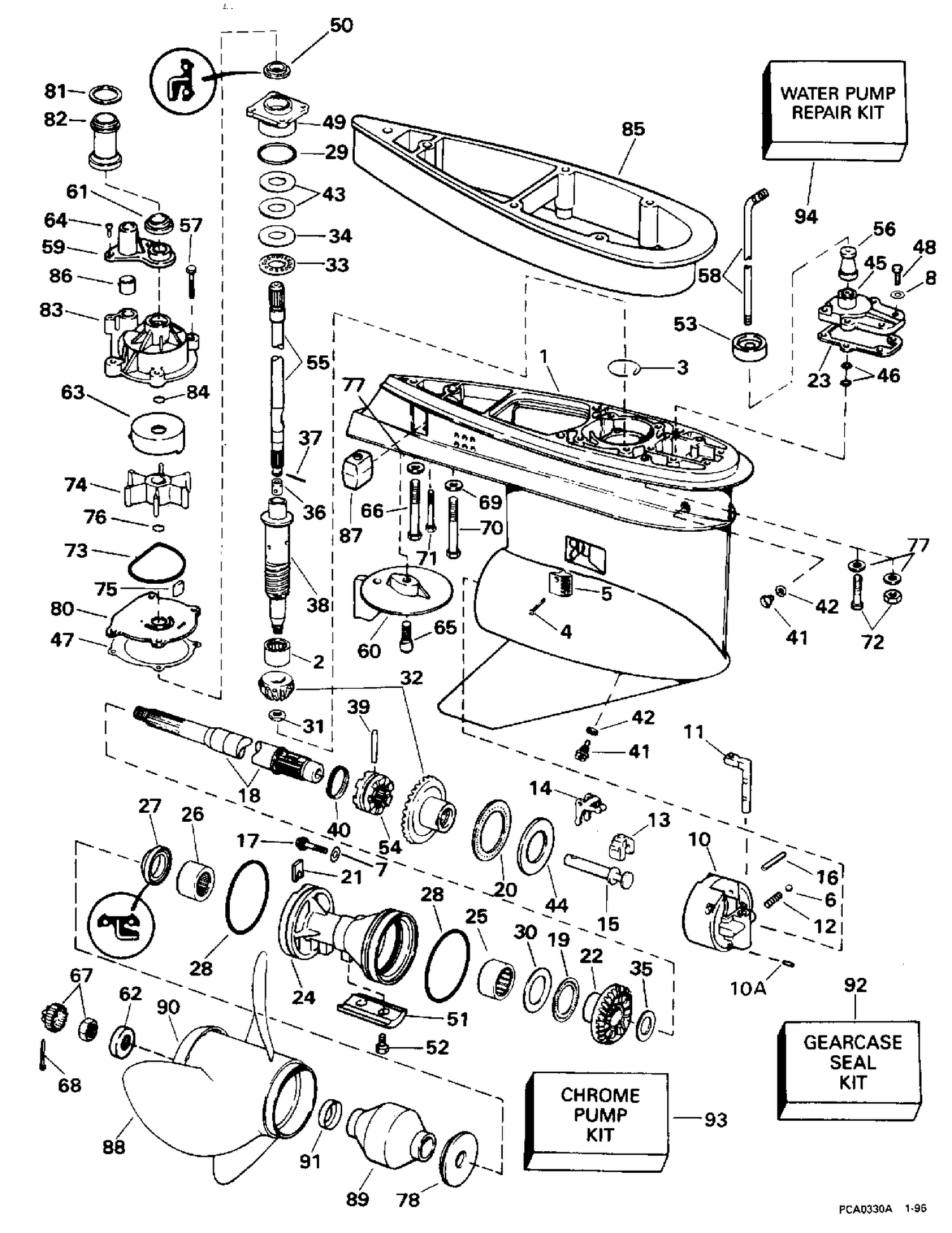

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 27 |
0341281 |
SEAL |
| 28 |
0305123 |
O RING |
| 50 |
0341280 |
SEAL |
| 55 |
0435767 |
DRIVESHAFT ASSY., Upper |
| 55 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0436232. |
| 56 |
0328019 |
SPACER, Shift rod |
| 58 |
0329864 |
SHIFT ROD |
| 58 |
0333276 |
SHIFT ROD |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0320263 |
SCREW, Gearcase to hsg., rear |
| 66 |
0333278 |
SCREW, Gearcase to housing, rear |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 70 |
0332279 |
SCREW, Gearcase to housing, long |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 81 |
0333272 |
SEAL, Spacer to housing |
| 82 |
0333275 |
SPACER, Impeller housing |
| 83 |
0435990 |
IMPELLER HOUSING |
| 84 |
0331188 |
O-Ring |
| 85 |
0334552 |
EXTENSION, Gearcase |
| 88 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 92 |
5006373 |
GEARCASE SEAL KIT This part replaces 0437753. |
| 93 |
0435526 |
CHROME CUP & PLATE KIT |
| 0438051 |
5004639 |
G-Case .44 Std Os This part replaces 0438051. |
