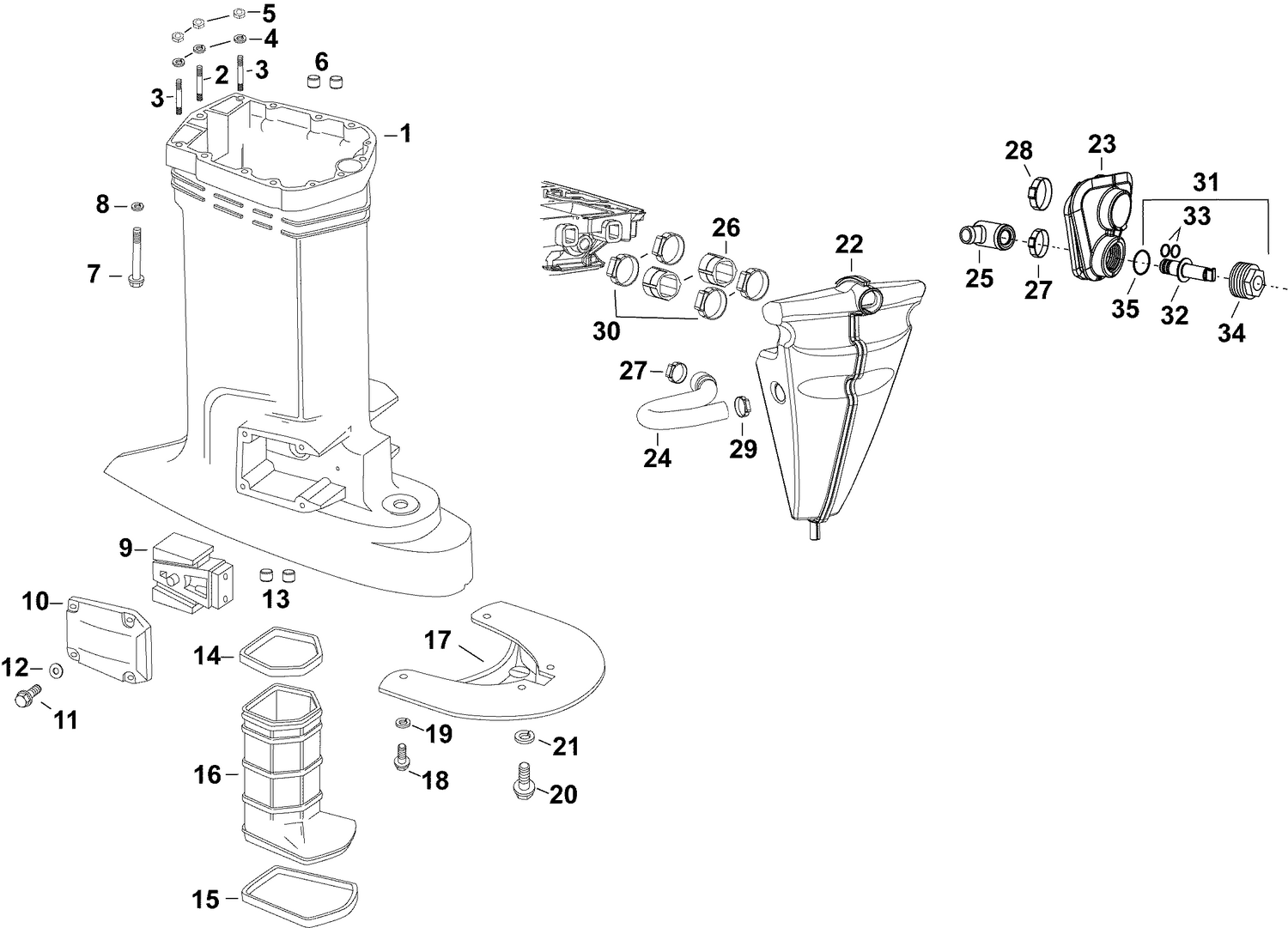

| Ref | Part Number | Description |
|---|
| 3 |
0351491 |
STUD, Adapter to outer housing |
| 4 |
0329241 |
RONDELLE |
| 5 |
0328742 |
NUT |
| 7 |
0355037 |
SCREW, Exhaust housing to c/c |
| 10 |
0338741 |
COVER, Mount bracket lower |
| 11 |
0341013 |
SCREW, Cover |
| 14 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 15 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
5005699 |
MUFFLER Assembly |
| 23 |
5008518 |
GROMMET Assembly, Exhaust relief |
| 24 |
0351443 |
HOSE, Overboard indicator |
| 25 |
0356448 |
ELBOW FITTING, Exhaust grommet |
| 26 |
0351363 |
GROMMET, Adapter to muffler |
| 27 |
0352335 |
COLLIER, 33,1 mm |
| 28 |
0352110 |
COLLIER, 44 mm |
| 30 |
0349729 |
CLAMP, 41.0mm |
| 31 |
5008838 |
PLUG & NOZZLE ASSEMBLY, Overboard water |
| 32 |
*NOZZLE |
Ref: 33 0307450 "O" RING, Large 0307450 |
