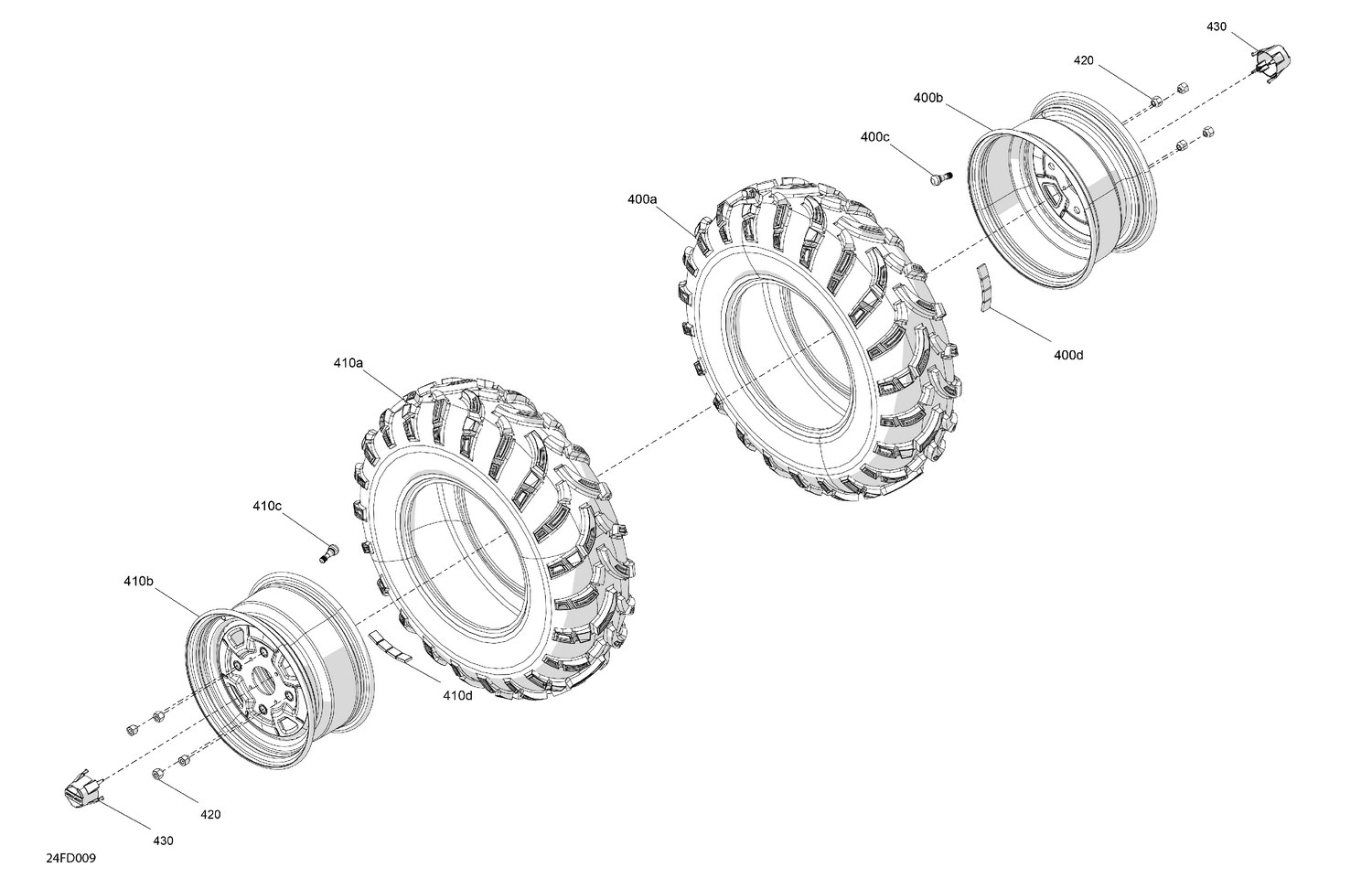

04- Drive - Front Wheels

04- Drive - Front Wheels

Parts (7)

RefPart NumberDescription
400a 705403483 Tire 25 X 8 R12
400b 705401199 Black,12" X 6 Rim
400c 705402595 Tire Valve Ass'y
410a 705403483 Tire 25 X 8 R12
410b 705401199 Black,12" X 6 Rim
410c 705402595 Tire Valve Ass'y
420 250100042 Steel Wheel Nut
