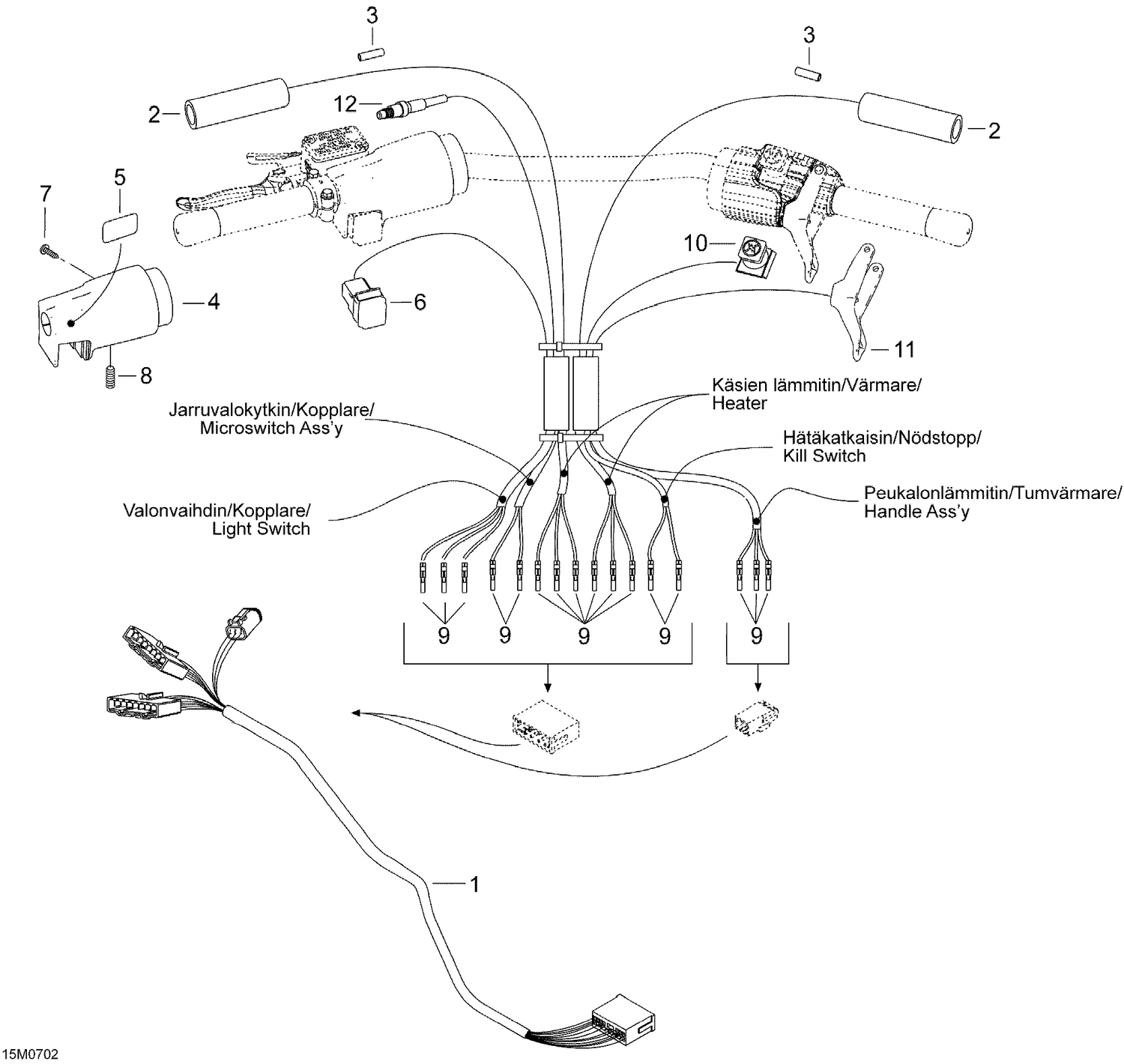

| Ref | Part Number | Description |
|---|
| 1 |
605253610 |
Câblage De Guidon |
| 1 |
M5248351 |
Wiring Harness |
| 2 |
515175664 |
Heating Grip |
| 3 |
M39023 |
Housing |
| 4 |
515175696 |
BRAKE HOUSING - Call your local BRP dealership |
| 5 |
415025500 |
Switch Decal |
| 6 |
515175814 |
LIGHT SWITCH - Call your local BRP dealership |
| 7 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 8 |
414440800 |
Socket Set Screw M8 X 10 |
| 9 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 10 |
515175410 |
Kill Switch |
| 11 |
512060214 |
Handle Ass'y This part replaces 512059767. |
