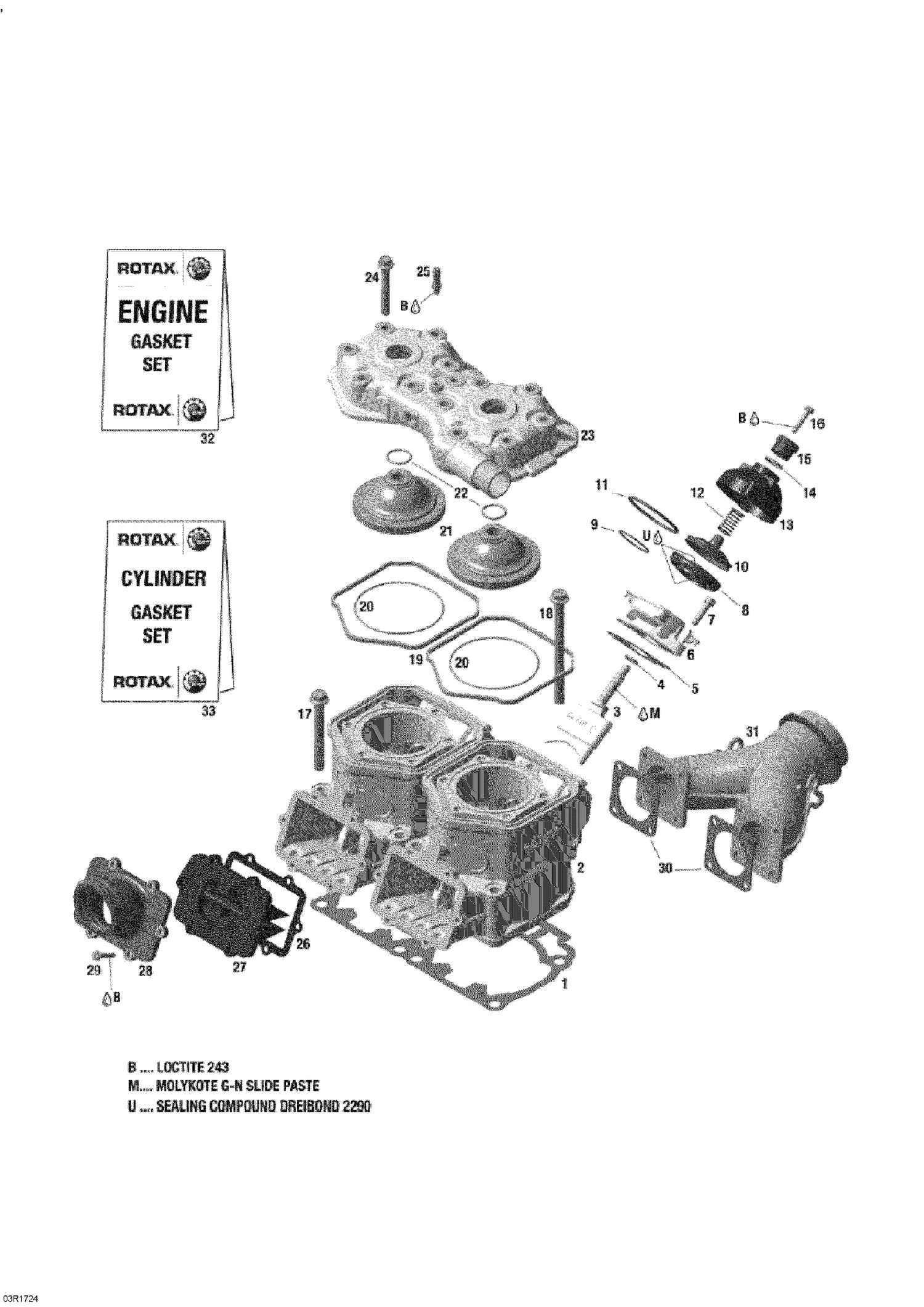

01- Cylinder And Cylinder Head - 600 RS
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| M | Not | Available As Spare Part - Molykote G-N |
| 2 | 420413350 | CYLINDER - Call your local BRP dealership |
| 3 | 420854650 | Exhaust Valve |
| 6 | 420854455 | Valve Housing |
| 8 | 420260729 | Bellows |
| 9 | 420838255 | Hose Spring |
| 11 | 420939281 | Hose Spring This part replaces 420939280. |
| 12 | 420239954 | Spring This part replaces 420239944. |
| 13 | 420911559 | Valve Cover |
| 21 | 420623358 | COMBUSTION CHAMBER INSERT - Call your local BRP dealership |
| 23 | 420623545 | Cylinder Head Cover |
| 25 | 420924724 | Hose Nipple |
| 27 | 420924791 | REED VALVE ASS'Y - Call your local BRP dealership |
| 28 | 420667500 | Intake Socket |
| 31 | 420673460 | MANIFOLD - Call your local BRP dealership |
| 32 | 420889931 | Engine Gasket Set |
| 33 | 420889936 | Cylinder Gasket Set |
