| Ref | Part Number | Description |
|---|
| 2 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 3 |
0325972 |
COLLIER, câbles électriques |
| 4 |
HOSE, |
Primer solenoid to fuel tee, 9 1/4 in. (244mm) |
| 5 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10a1 |
417224210 |
Fixed Flange Ass'y |
| 10a2b |
293250389 |
Bushing |
| 10a2c |
293370137 |
Circlip |
| 10a2d |
417224825 |
Interior Pulley Roller |
| 10a2f |
417224916 |
Pulley Roller Ext This part replaces 417224458. |
| 10a2g |
417224510 |
Pin |
| 10a2h |
250400101 |
Spring Pin 2.6MM X 20.5MM |
| 10a3b |
417224910 |
Stopper Spring |
| 10a3c |
417224614 |
Spring Guide |
| 10a3d |
417224861 |
Roller Pulley Ass'y |
| 10a3f |
417224204 |
Axle - 10mm |
| 10a3g |
417224868 |
Thrust Washer |
| 10a3h |
250000763 |
Torx-Truss M/S M5 X 14 S.Grip |
| 10b |
417224330 |
Clutch Spring |
| 10c |
417224003 |
Seat Spring |
| 10d |
293370116 |
Circlip |
| 10f |
417224290 |
Ramp 880 Ass'y |
| 10g |
417224694 |
Pin Ramp |
| 10h |
250000763 |
Torx-Truss M/S M5 X 14 S.Grip |
| 10j |
417224680 |
Coupling Flange |
| 10k |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 20 |
0329182 |
VIS, borne |
| 20 |
250200144 |
Conical Spring Washer M14 |
| 21 |
5007356 |
Kit Ay This part replaces 0437233. |
| 27 |
0328907 |
COLLIER, amorçage vers support |
| 30 |
417300522 |
Pulley Drive Bolt M14 X 144 |
| 100a3 |
417127016 |
Roller |
| 100a4 |
417127294 |
Torx Screw M8 x 25, Scotch Grip |
| 100a5 |
250200009 |
Ribbed Lock Washer 8 mm |
| 100a6 |
250400070 |
Spring Pin |
| 100b2 |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L |
| 100b3 |
293370049 |
Spacer (1.91/2.21mm) |
| 100c2 |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L |
| 100c3 |
293370049 |
Spacer (1.91/2.21mm) |
| 100d |
417127137 |
Spring (Green, 800-1350N / 179-303lbs) |
| 100f |
417127116 |
Swivel Abutment |
| 100g |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 100h |
415129604 |
Pulley Adjuster Ass'y |
| 100j |
250000981 |
Socket Screw M5 X 25 |
| 100k |
234051410 |
Flat Washer M5 |
| 100m |
232551414 |
Elastic Stop Nut M5 |
| 100n |
417127155 |
Washer |
| 100p |
504152574 |
Ball Bearing |
| 200 |
417300571 |
Drive Belt |
| 300 |
417300620 |
Belt Guard |
| 330 |
417300525 |
Front Retaining Hook |
| 340 |
390909200 |
Avex Rivet |
| 360 |
417300609 |
CVT Cooling Duct |
| 370 |
293150103 |
Pop Rivet 3/16 |
| 450 |
417300583 |
Front Guard Support |
| 480 |
207561044 |
Flange Screw M6 X 10, Scotch Grip |
| 500 |
417300633 |
Rear Guard Support |
| 510 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 0174973 |
0174973 |

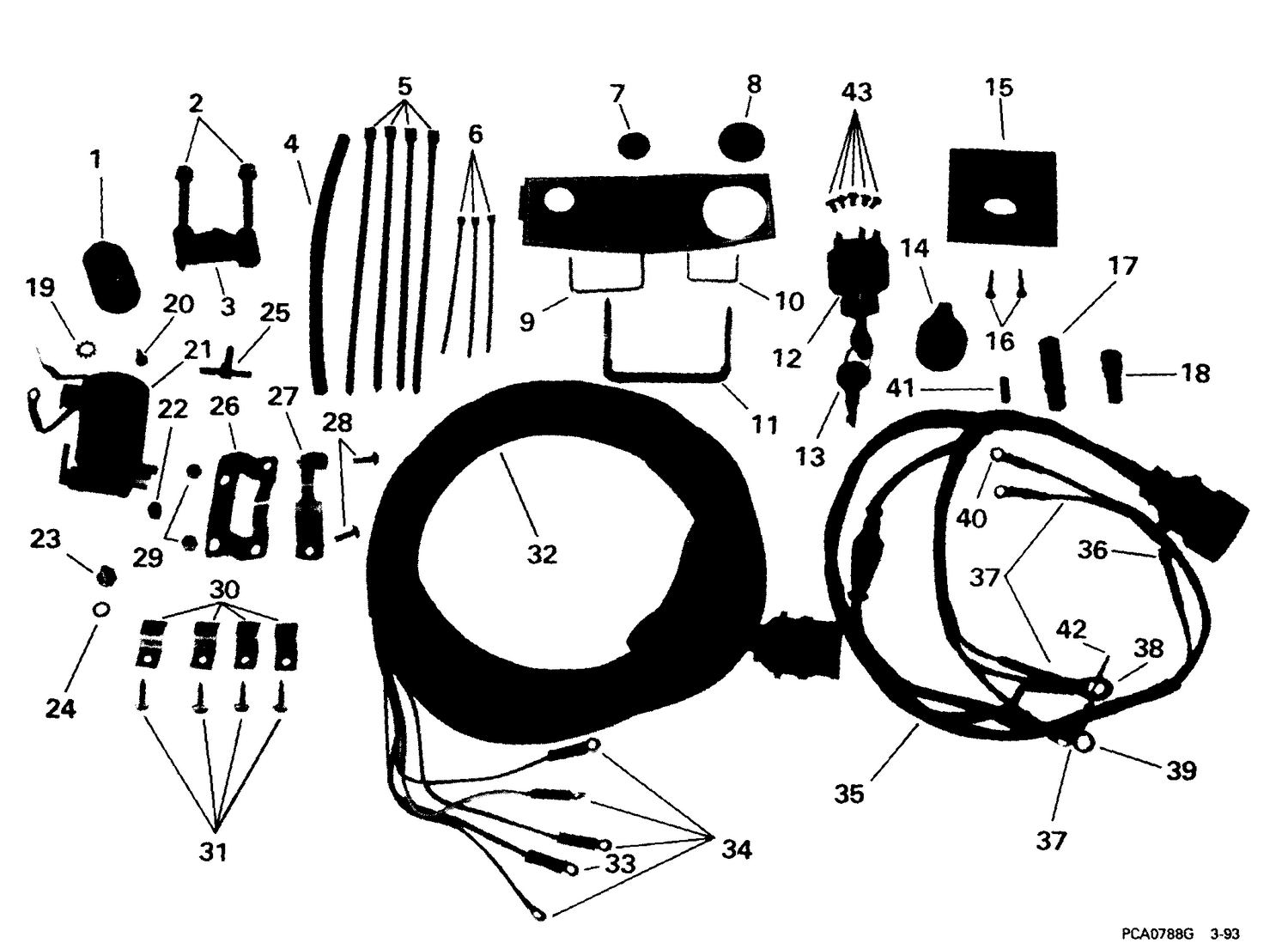

REMOTE ELECTRIC START KIT |
