Parts Catalog

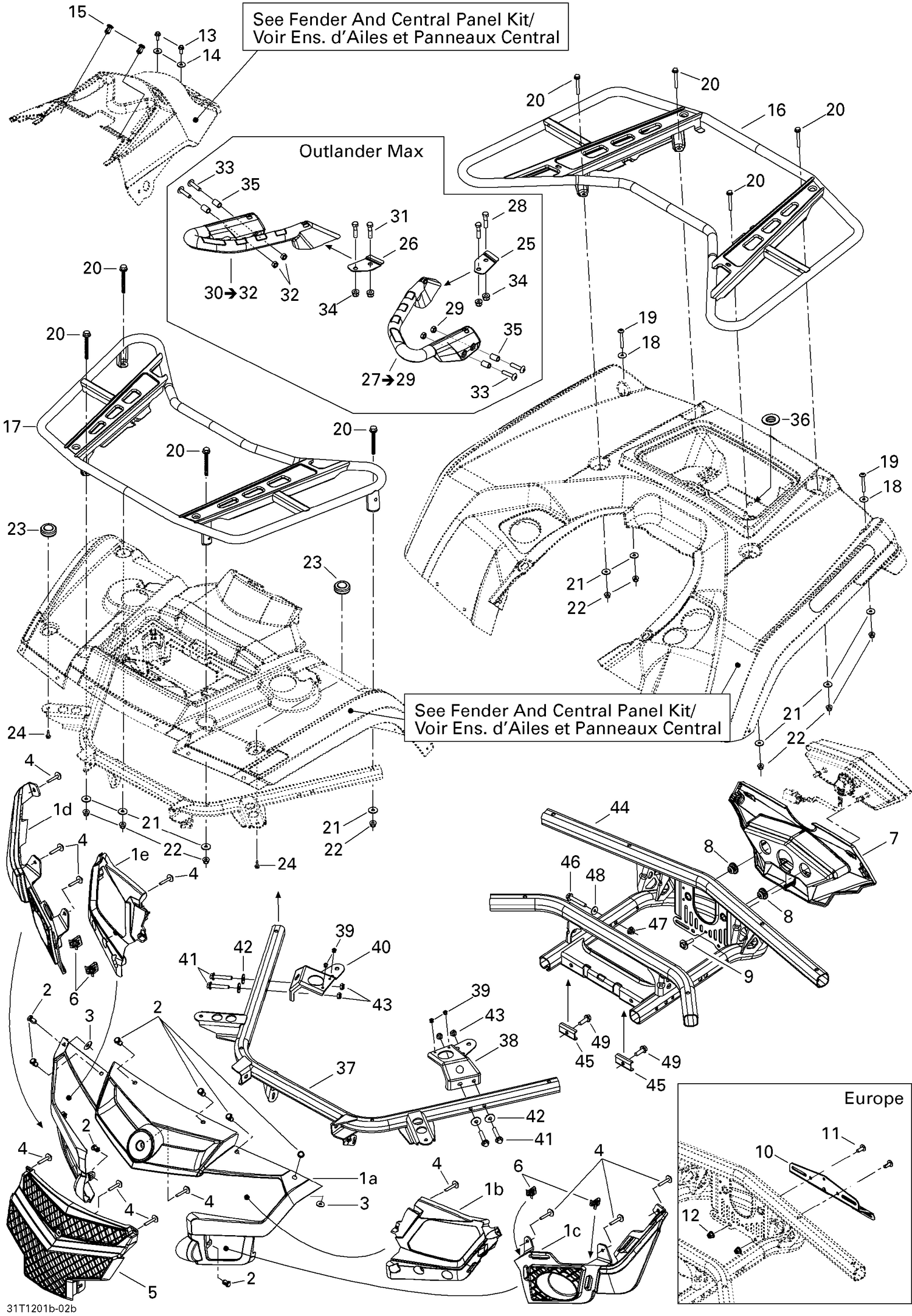

09- Body And Accessories 2

Parts (43)

Ref	Part Number	Description
1b	705002825	LH HEAD LAMP SUPPORT - Call your local BRP dealership
1e	705002826	RH Head Lamp Support
2	293150230	Tuflok Plastic Rivet This part replaces 293150089.
3	506151252	Washer
4	250000101	Plastite Screw Type K-40, M4 X 25
5	705002779	UPPER GRILL - Call your local BRP dealership
6	517302785	Edge Clip
13	210261650	Hex. Flange Screw M6 X 16 This part replaces 210261680.
14	250200082	Flat Washer This part replaces 391302000.
15	293150230	Tuflok Plastic Rivet This part replaces 293150089.
16	705002617	Rear Luggage Rack
17	705002616	Front Luggage Rack
18	250200040	Flat Washer
19	250000749	Torx Truss Screw M6 X 50 This part replaces 250000239.
20	207065544	Hex. Screw M6 X 55
21	224061201	Flat Washer This part replaces 250200072.
22	233261414	Hex. Flange Elastic Nut M6 x 1.0
23	705003667	RUBBER CAP - Call your local BRP dealership
24	365901100	HEX. SCREW 12 X 3/4 - Call your local BRP dealership
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
30	XXX	Not Available As Spare Parts
31	XXX	Not Available As Spare Parts
32	XXX	Not Available As Spare Parts
33	XXX	Not Available As Spare Parts
34	XXX	Not Available As Spare Parts
35	XXX	Not Available As Spare Parts
36	414859400	CAP - Call your local BRP dealership
37	705003655	FRONT SUPPORT - Call your local BRP dealership
38	705002995	LH ANCHOR PLATE - Call your local BRP dealership
39	390402300	Pop Rivet 3/16"
40	705002997	RH Anchor Plate
41	207684544	Hex. Flange Screw M8 X 45
42	234082410	Flat Washer 8 mm
43	232581414	Hex. Elastic Stop Nut M8
44	705003656	Rear Support
45	705003647	U Reinforcement
46	207685044	Hex. Flange Screw M8 X 50
47	233281414	Hex. Flange Elastic Nut M8
48	234082410	Flat Washer 8 mm
