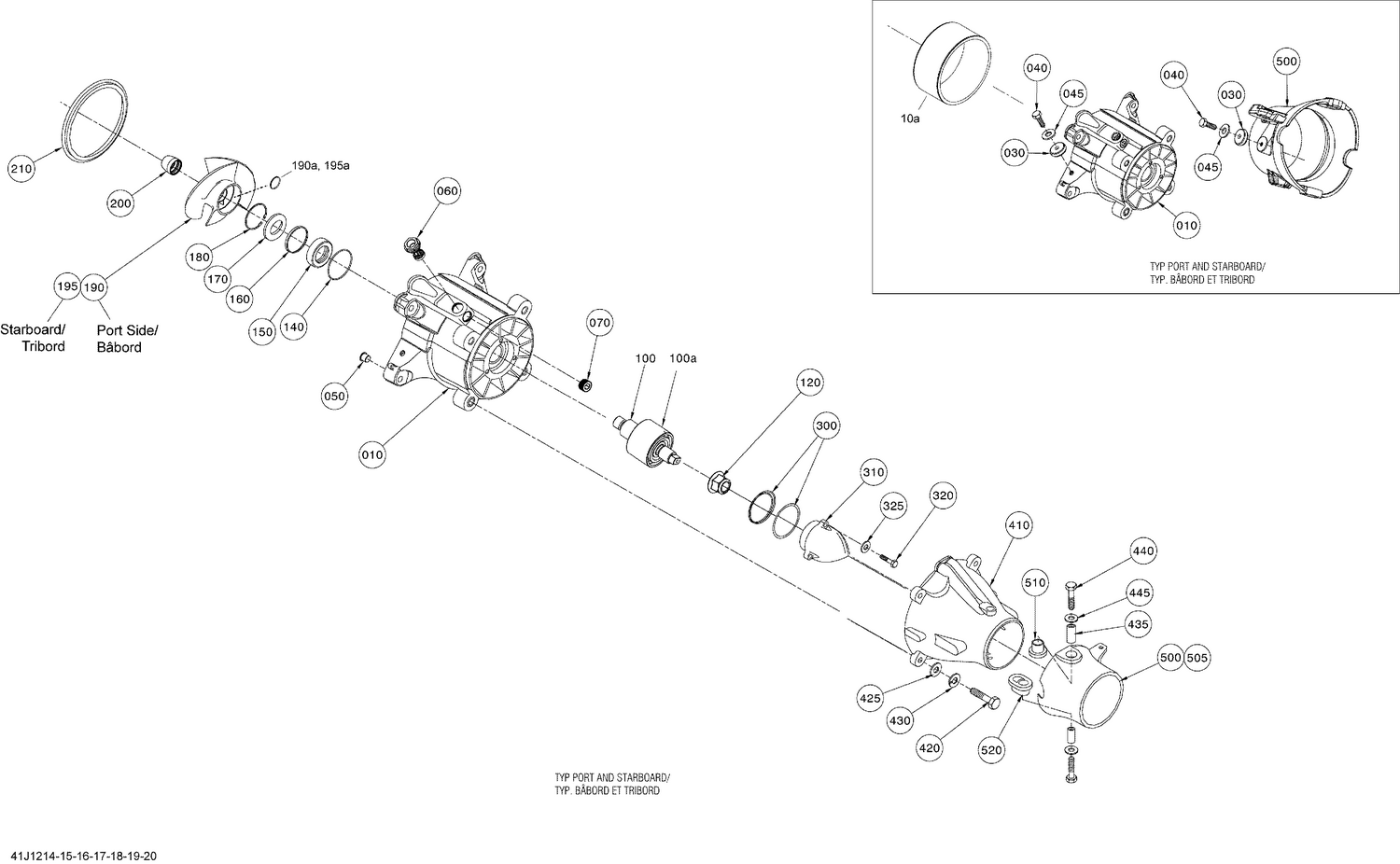

05- Pump — Parts Catalog

Ref	Part Number	Description
10	271002161	Housing Impeller Anodized This part replaces 267000417.
10a	267000372	Wear Ring
30	271001813	Anode Zinc
40	207362060	Hex. Screw M6 X 20, Scotch Grip
45	234061600	Stainless Flat Washer M6
50	267000093	Bushing
60	267000282	Plug
70	267000469	Black, Plastic Plug
100	267000388	Impeller Shaft
100a	267000900	Angled Bearing This part replaces 267000030.
120	250100104	Elastic Flange Nut M20
140	293300090	O-Ring
150	271002071	Seal This part replaces 293200086.
160	271001393	Spacer
170	293200089	Oil Seal
180	293370038	Circlip
190	267000970	Impeller Ass'y This part replaces 267000442.
190a	293300114	O-Ring
195	267000992	Impeller Assy This part replaces 267000569.
195a	293300114	O-Ring
200	271002228	Guard This part replaces 267000458.
210	293200087	Neoprene Seal
300	293300086	O-Ring
310	267000428	Impeller Cover
320	205562560	Socket Head Screw M6 X 25, Scotch Grip
325	234061600	Stainless Flat Washer M6
410	204160306	VENTURI, BLACK - Call your local BRP dealership
420	250000464	Socket Head Screw M8 X 100, Scotch Grip
425	293050001	Flat Washer M8.5 x 18
430	234181601	Lock Washer 8 mm, Stainless
435	271001816	Sleeve
440	211000047	SCREW-SPECIAL M8 - Call your local BRP dealership
445	293050001	Flat Washer M8.5 x 18
500	271001787	STEERING NOZZLE, BLACK - Call your local BRP dealership
505	271001787	STEERING NOZZLE, BLACK - Call your local BRP dealership
510	293900001	Venturi Bushing
