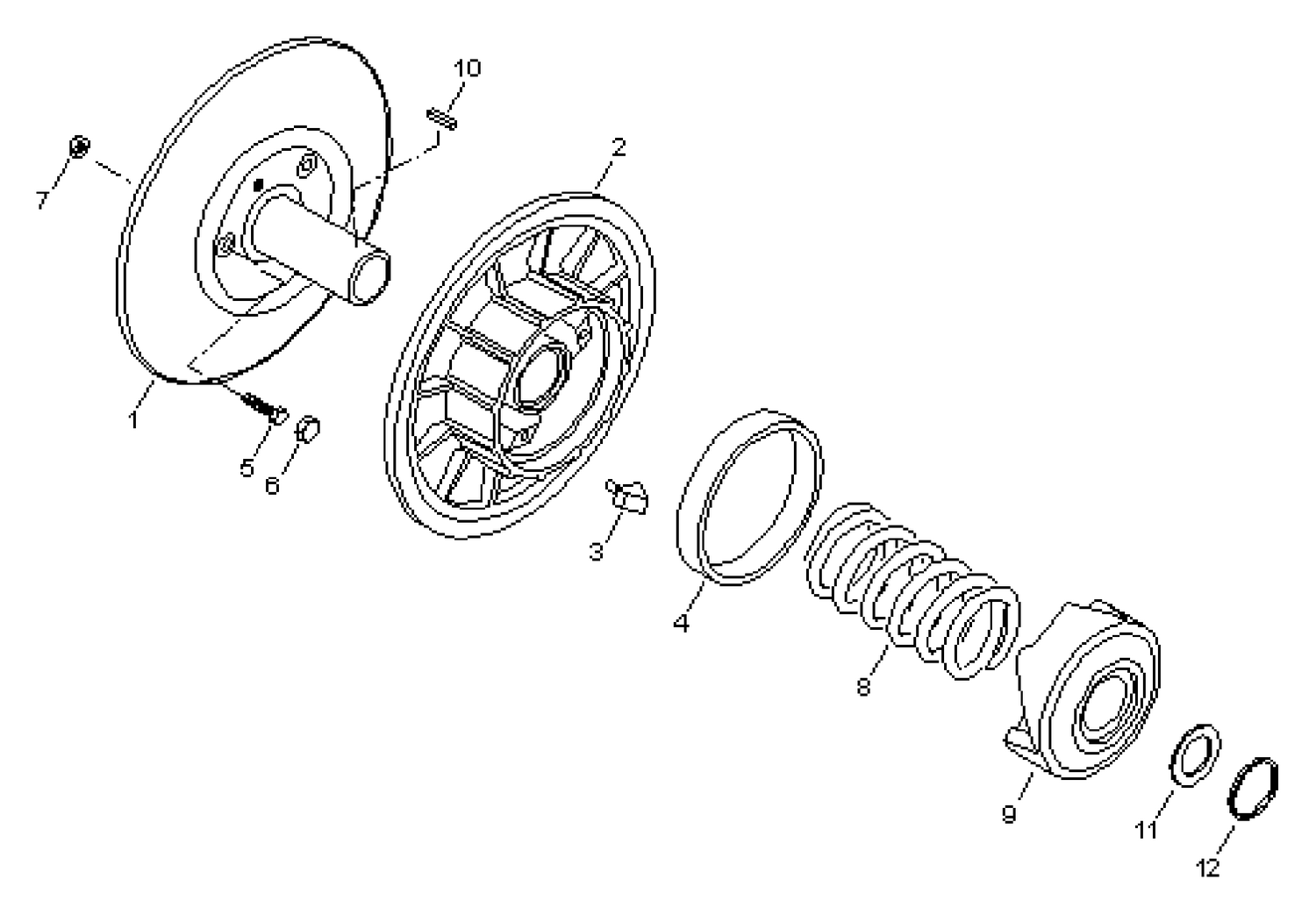

| Ref | Part Number | Description |
|---|
| 1 |
140050 |
Fixed half pulley |
| 2 |
140051 |
Sliding half pulley |
| 3 |
417212500 |
SHOE CAM SLIDER - Call your local BRP dealership |
| 4 |
140053 |
Cam bushing |
| 5 |
417118900 |
HEX. SCREW - Call your local BRP dealership |
| 6 |
417119600 |
PLASTIC CAP - Call your local BRP dealership |
| 7 |
417119000 |
NUT - Call your local BRP dealership |
| 8 |
417119100 |
RELEASE SPRING - Call your local BRP dealership |
| 9 |
140048 |
Fix cam 35/30 |
| 10 |
417119400 |
KEY - Call your local BRP dealership |
| 11 |
417114900 |
Shim 0.05'’ |
| 11 |
417117000 |
SHIM - Call your local BRP dealership |
