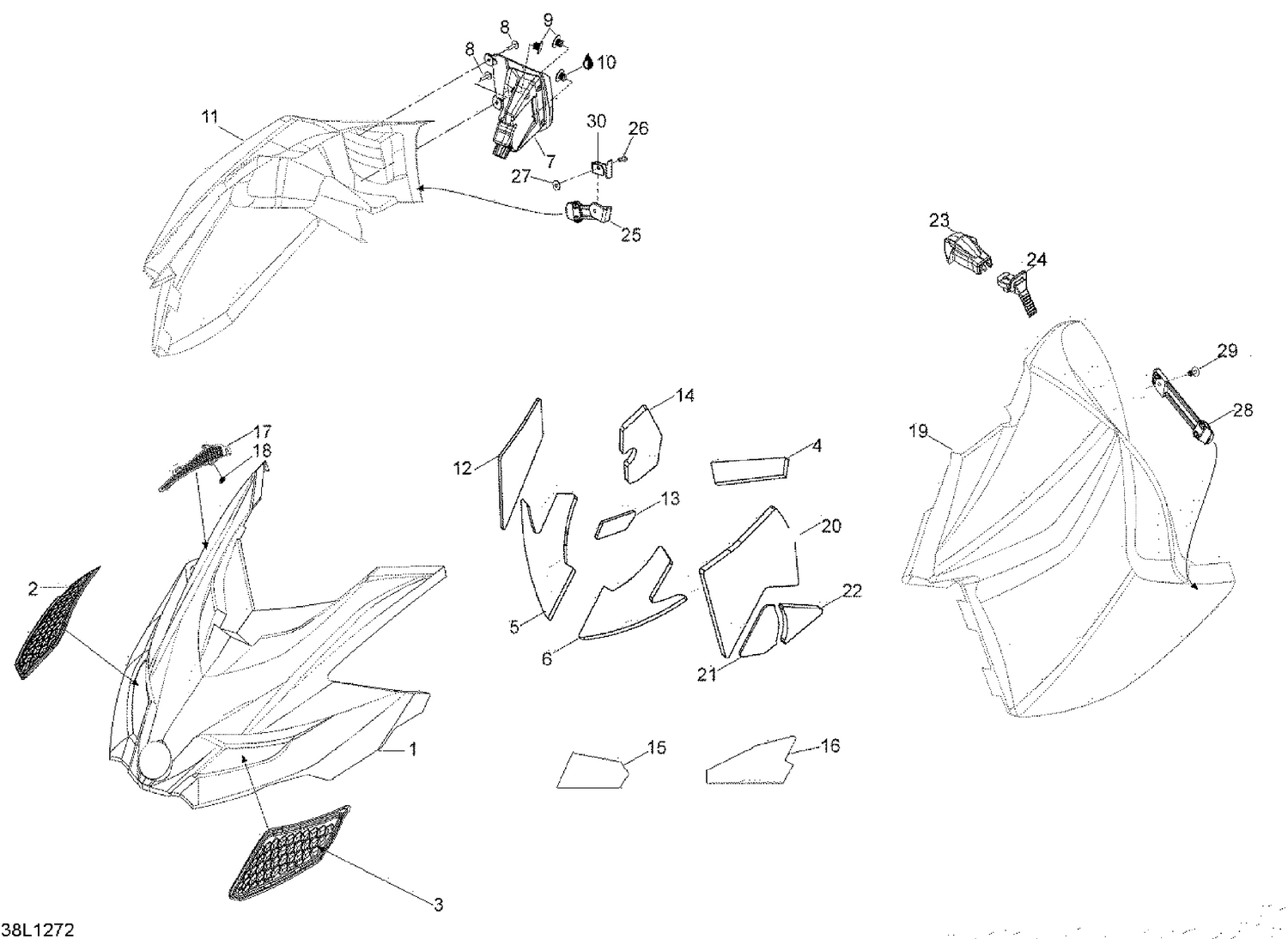

09- Hood
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304389 | Hood |
| 2 | 517304141 | R.H. Hood grill |
| 3 | 517304008 | L.H. Hood grill |
| 4 | 517304266 | Foam |
| 5 | 517304263 | Foam |
| 6 | 517304321 | Foam |
| 7 | 517304322 | RH Console |
| 8 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 9 | 275500241 | Cap, Black |
| 10 | 413408300 | Loctite, Black Max, 3 ml |
| 11 | 517304978 | Side panel RH |
| 12 | 517304220 | Foam |
| 13 | 517304306 | Foam |
| 14 | 517304339 | Foam |
| 15 | 517304264 | Aluminium Foil |
| 16 | 517304265 | Aluminium Foil |
| 17 | 517304007 | Grill |
| 18 | 517302785 | Clip |
| 19 | 517304986 | Side panel LH |
| 20 | 517304219 | Foam |
| 21 | 517304305 | Foam |
| 22 | 517304340 | Foam |
| 23 | 860200239 | Latch Kit, Black |
| 24 | 517303981 | Panel Latch |
| 25 | 517303612 | RH Panel Latch |
| 26 | 207652044 | Hex. Flange Screw M5 X 20 |
| 27 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 28 | 517303808 | LH Panel Latch |
| 29 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
