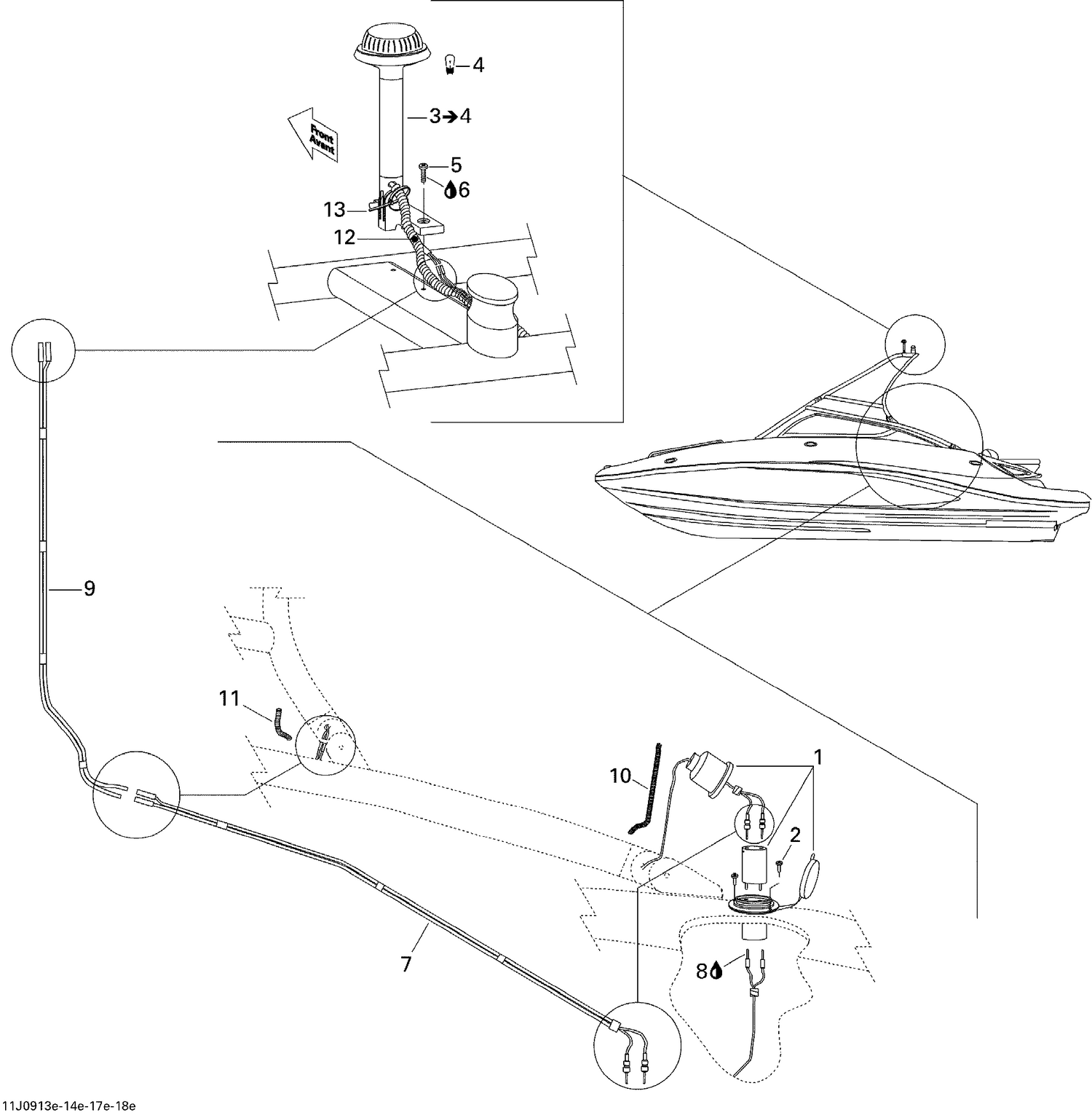

| Ref | Part Number | Description |
|---|
| 1 |
204130221 |
CONNECTOR - Call your local BRP dealership |
| 2 |
Not |
Available As Spare Part - Phillips Tapping Screw M2.9 X 13 |
| 4 |
204470053 |
Bulb |
| 5 |
208641660 |
Phillips Screw M4 X 16 |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204471382 |
Lower Tower Harness |
| 8 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 9 |
204471185 |
Upper Tower Harness |
| 10 |
204050326 |
SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 11 |
204050326 |
SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 12 |
204050326 |
SPLIT LOOM 3/8, METER - Call your local BRP dealership |
