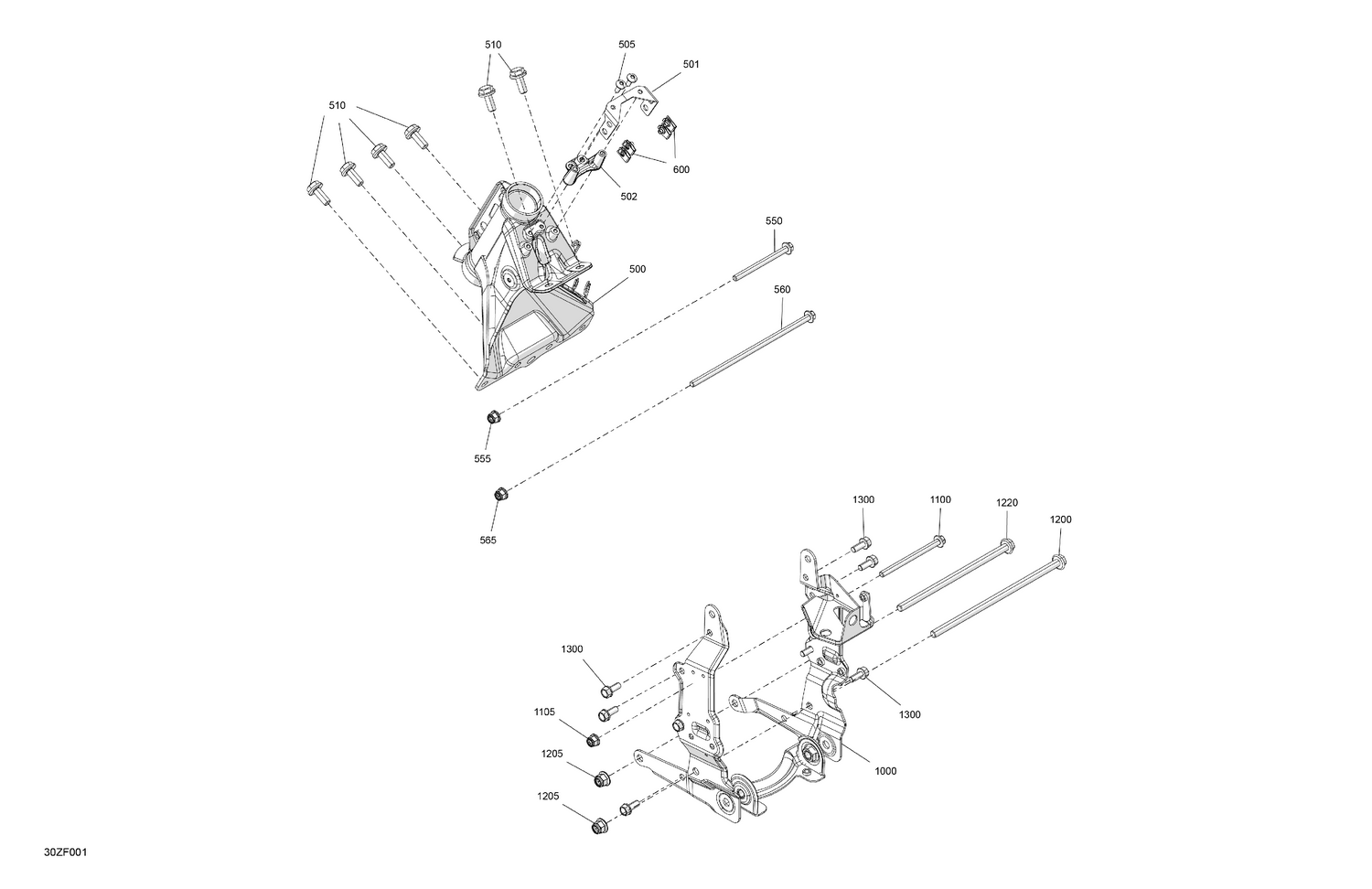

06- Frame - System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 705213102 | Deep Black, Front Frame |
| 501 | 705211107 | Body Support |
| 502 | 705212617 | Support |
| 505 | 250000534 | Tork Screw M6 X 16 |
| 510 | 250001344 | Hex. Sems Screw M10 X 28 |
| 550 | 250001290 | Hex. Flange Screw M8 X 100 |
| 555 | 233281466 | Elastic Flange Nut M8 |
| 560 | 250001288 | Hex. Flange Screw M8 X 225 |
| 565 | 233281466 | Elastic Flange Nut M8 |
| 600 | 250100209 | Spring Nut U M5 X 0.8 |
| 1000 | 705210968 | Rear Frame |
| 1100 | 250001289 | Hex Flange Screw M8 X 110 |
| 1105 | 233281466 | Elastic Flange Nut M8 |
| 1200 | 250001293 | Hex. Flange Screw M10 X 240 |
| 1205 | 250100246 | Hex. Flange Elastic Nut M10 |
| 1220 | 250001292 | Hex. Flange Screw M10 X 205 |
