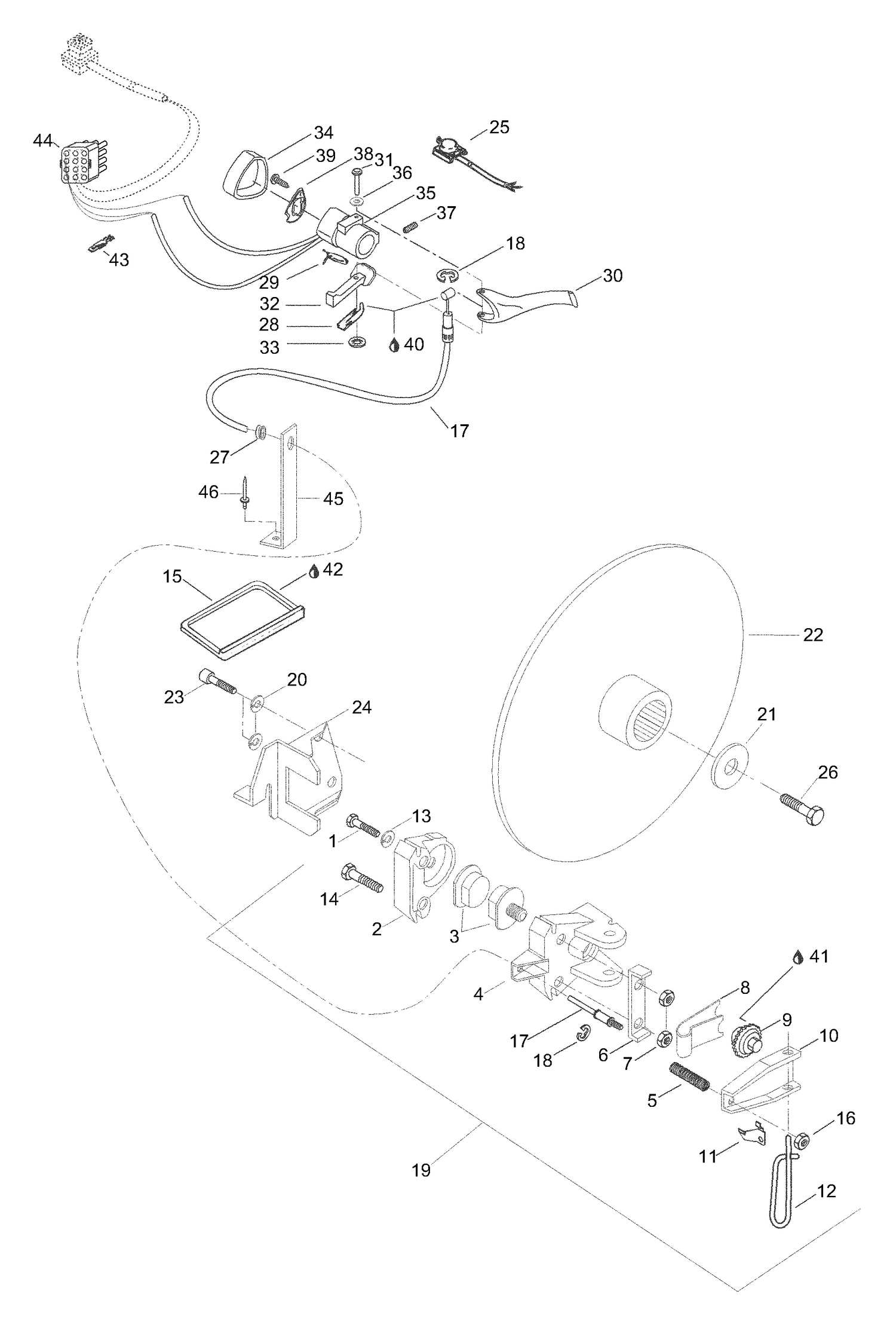

06- Brake Assy
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207151444 | Screw M5 x 14 This part replaces 222051465. |
| 2 | 414466800 | ANVIL - Call your local BRP dealership |
| 3 | 860700100 | Brake pad kit |
| 4 | 507026600 | Mobile brake lining h |
| 5 | 414460600 | SPRING - Call your local BRP dealership |
| 6 | 507020400 | LOCK-TAB - Call your local BRP dealership |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 8 | 507020200 | RELEASE SPRING - Call your local BRP dealership |
| 9 | 507019600 | Ratchel wheel |
| 10 | 507021500 | LEVER - Call your local BRP dealership |
| 11 | 507009400 | RATCHET SPRING - Call your local BRP dealership |
| 12 | 507027500 | Pin |
| 13 | 507023600 | TAB LOCK - Call your local BRP dealership |
| 14 | 207085044 | Screw M8x1.25x50 |
| 15 | 572013500 | Slider |
| 16 | 33010 | Lock Nut M6 (1=10Pcs) |
| 17 | 414922500 | BRAKE CABLE - Call your local BRP dealership |
| 18 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 19 | 580251002 | Brake calibre, mec. |
| 20 | 20068 | Lock washer |
| 21 | 546336 | Washer |
| 22 | 5344710 | Brake disc |
| 23 | 40277 | Allen screw M10x65 |
| 24 | 5340914 | Brake Support |
| 25 | 415085800 | Dimmer switch |
| 26 | 40036 | Screw M8x20 |
| 27 | 28040 | Grommet |
| 28 | 517229300 | Spring |
| 29 | 415085700 | Brake light switch |
| 30 | 572025700 | BRAKE HANDLE - Call your local BRP dealership |
| 31 | 517229400 | PIN - Call your local BRP dealership |
| 32 | 572025200 | Brake lever |
| 33 | 389804300 | Push Nut |
| 34 | 572073800 | BRAKE COVER - Call your local BRP dealership |
| 35 | 24034 | Brake handle housin |
| 36 | 414729400 | WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 37 | 414440800 | Socket Set Screw M8 X 10 |
| 38 | 572086600 | Cover |
| 39 | 414473200 | Screw |
| 40 | 293550004 | Dielectric grease |
| 41 | 293800023 | LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 42 | 413711500 | SYNTHETIC GREASE - Call your local BRP dealership |
| 43 | 42031 | Male terminal |
| 44 | 42036 | Connector housing |
| 45 | 5447000 | Bracket |
