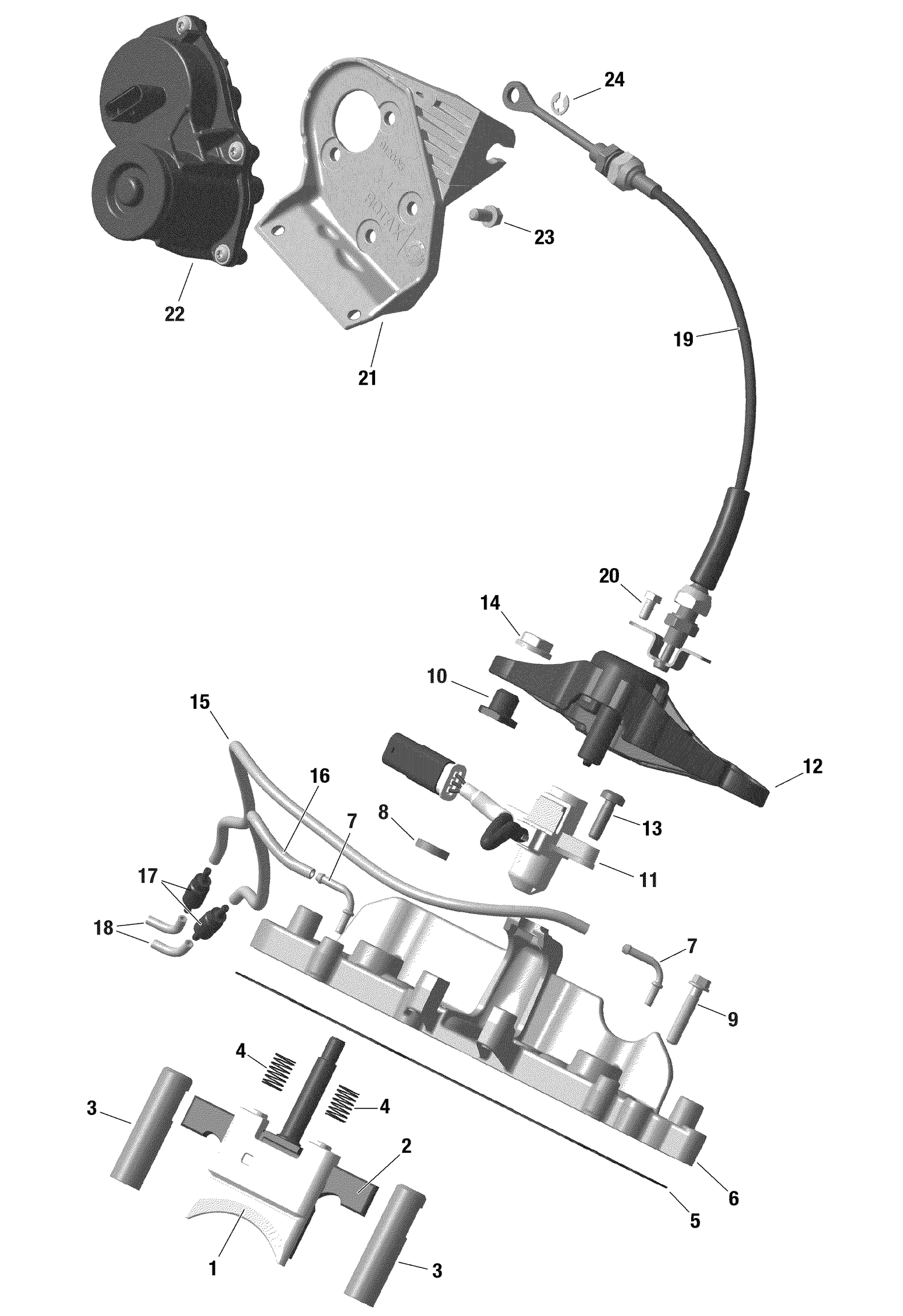

| Ref | Part Number | Description |
|---|
| 1 |
420954051 |
Exhaust Valve Upper |
| 2 |
420954054 |
Lower Exhaust Valve This part replaces 420954057. |
| 3 |
420954041 |
Exhaust Valve This part replaces 420954040. |
| 4 |
420238558 |
Spring |
| 5 |
420430037 |
Valve Rod Housing Gasket This part replaces 420430036. |
| 7 |
420924053 |
Fitting 90D |
| 8 |
420950732 |
Oil Seal |
| 9 |
420440647 |
Torx Flange Screw M6 X 30 |
| 10 |
420942331 |
Collar Nut M8 |
| 11 |
Not |
Available As Spare Part - Position Sensor |
| 12 |
Not |
Available As Spare Part - Cover |
| 13 |
420441386 |
Torx Flange Screw M6 X 20 |
| 14 |
420942190 |
Nut M12 X 1.5 |
| 15 |
420201924 |
Oil Line 673MM This part replaces 420201564. |
| 16 |
420201924 |
Oil Line 673MM This part replaces 420201564. |
| 17 |
420956515 |
Check Valve Ass’y |
| 18 |
420201924 |
Oil Line 673MM This part replaces 420201564. |
| 19 |
420997033 |
Bowden Cable Ass'y This part replaces 420997033. |
| 20 |
420240692 |
Allen Screw M5 X 10 |
| 21 |
420912005 |
Mounting Bracket |
| 22 |
420889432 |
Servo Motor Ass'y This part replaces 420889431. |
| 23 |
420440149 |
Hex. Flange Screw M6 X 12 |
